[shortdesc]
- Outdoor-ready thermal sensor unit, Reliable thermal detection 24/7, Possibilities for multi-channel setup, Two variants with a choice of lenses, For use with AXIS FA54 Main Unit, Outdoor-ready, discreet sensor unit
[/shortdesc]
[properties]
| Properties |
AXIS FA1080-E 2.2mm 8.3 fps Thermal Sensor Unit |
| Description |
The AXIS FA1080-E with a 2.2 mm lens is a discreet and outdoor-ready thermal sensor unit designed for versatile installation options, including behind surfaces, on walls, or recessed. This unit, when paired with the AXIS FA54 Main Unit, offers reliable 24/7 thermal detection with a wide-angle view. The 2.2 mm lens is ideal for broad surveillance needs, ensuring a low rate of false alarms and providing a reliable solution for discreet and effective monitoring. |
| Product Family |
Axis FA Series Modular Cameras |
| Product Type |
Thermal Sensor Unit |
[/properties][specifications]
| Specifications |
AXIS FA1080-E 2.2mm 8.3 fps Thermal Sensor Unit |
| Image sensor |
Uncooled Microbolometer 208 x 156 pixels, Pixel size 12 μm,
Spectral range: 8-14 μm |
| Lens |
Athermalized, 2.2 mm, F1.05
Horizontal field of view: 63°
Vertical field of view: 47° |
| Sensitivity |
NETD <100 mK |
| Frame rate |
8.3 fps |
| General |
| Casing |
Aluminum
IP66 and IP67–rated |
| Connectors |
RJ12 for connection to AXIS FA54 Main Unit |
| Operating conditions |
–30°C to 55 °C (–22°F to 131 °F)
Maximum temperature (intermittent): 60 °C (140 °F)
Start-up temperature: -30 °C
Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals |
EMC
55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
VCCI Class A, RCM AS/NZS CISPR 32 Class A, ICES-003 Class A,
Safety
IEC/EN/UL 62368-1
Environment (Thermal unit)
IEC 60068-2-1, IEC 60068-2-2, IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP66/IP67, IEC/EN/UL 60950-22 |
| Dimensions |
53 mm (2 1/16 in)
ø 30 mm (1 3/16 in)
Cable length: 12 m (39 ft) |
| Weight |
Sensor with cable 370 g (0.8 lb) |
| Required hardware |
AXIS FA54 Main Unit |
| Included accessories |
AXIS F8201 Vari-angle Mounting Bracket |
[/specifications][accesories]
| Optional accessories |
AXIS F8203 Fixed Mount Bracket
AXIS F8204 Mounting band
AXIS F8205 Bullet Accessory
AXIS F8212 Trim Ring |
[/accesories]

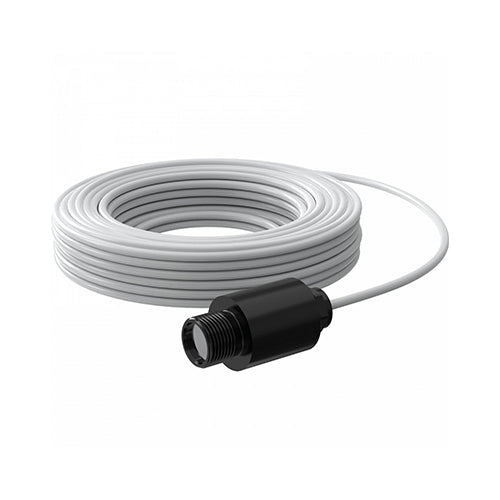

AXIS FA1080-E 2.2 mm 8.3 FPS is a modular thermal sensor unit to be used together with AXIS FA54 Main Unit. The thermal sensor unit provides 208x156 resolution and includes a 2.2 mm lens with 63-degree horizontal FOV. The flexible form factor allows it to be placed in locations with limited space and can be used with a wide range of mounting accessories to enable wall, ceiling, and recessed installations. The sensor unit is outdoor-ready and has a 12 m/39.4 ft cable. This product contains U.S.-origin controlled technology/component, the US Export Administration Regulations (EAR) are always applicable to the product. You should comply at all times with all applicable national and international (re-) export control regulations.
