[shortdesc]
- 2nd generation: Discreet fisheye sensor with 1080p, Only compatible with 2nd generation main units and cables, Up to 60 fps at 1080p and up to 180 fps at 720p, 185° horizontal field of view, Rugged sensor unit, IP66/IP67/IP6K9K rated, 2nd gen cable is required
[/shortdesc]
[properties]
| Properties |
AXIS F2135-RE |
| Description |
AXIS F2135-RE Fisheye Sensor is ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles. It offers up to 1080p at 60 fps, 185° field of view, and good low-light performance in color. |
| Product Family |
Axis Cameras |
| Product Type |
Sensor |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Wide dynamic range |
– |
| PoE Class |
– |
| Connectors |
SMA connector (uses Axis cables with SMA-FAKRA connectors) |
| Built-in IR |
– |
| Local storage (memory card slot) |
– |
| Outdoor Ready |
Yes |
| Vandal rating |
– |
| IP rating |
IP66, IP67, IP6K9K, NEMA 4X |
| Power (max) |
1.7 W |
| Power (average) |
1.0 W |
| Dimensions |
46 mm (1.8 in) ø 29.8 mm (1.2 in) |
| Weight |
50 g (0.1 lb) |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability |
PVC free |
[/properties][specifications]
| Specifications |
AXIS F2135-RE |
| Min illumination/ light sensitivity (Color) |
0.1 lux |
| Min illumination/ light sensitivity (B/W) |
- |
| Max video resolution |
1920x1080 |
| Max frames per second |
180 |
| Day and Night functionality |
– |
| Electronic image stabilization |
– |
| Focal length |
1.98 mm |
| Varifocal lens |
No |
| Aperture |
2.0 |
| Horizontal field of view |
185° |
| Vertical field of view |
97° |
| Lens mount |
M12 |
| Replaceable lens |
Yes |
| Audio Support |
– |
[/specifications][accesories]
| Optional accessories |
| AXIS TU6002 |
Right-angle SMA Adaptor |
| AXIS TU6004-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 |
2nd generation Plenum Cable |
| AXIS TU6007-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TF1801-R |
Lens Hood |
| AXIS TF1201-RE |
Recessed mounting of modular sensor units |
| AXIS TF1203-RE |
Recessed mounting of modular sensors |
| AXIS TF1803-RE |
Lens Protector |
| AXIS TF1901-RE |
Swivel Mount |
| AXIS TF1902-RE |
Mounting Bracket |
[/accesories]

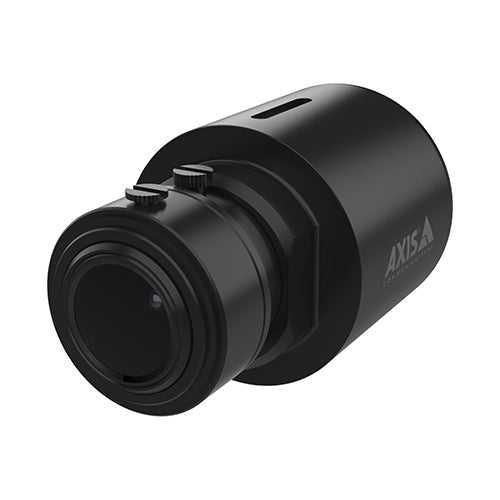

AXIS F2135-RE Fisheye Sensor (02641-001)
The AXIS F2135-RE Fisheye Sensor provides discreet 1080p surveillance with a 185° field of view, delivering up to 60 fps at 1080p and 180 fps at 720p. It’s designed for use with 2nd generation F91 main units and connects via a single SMA interface to Axis SMA-FAKRA cables. Built to withstand harsh environments, it is IP66/IP67/IP6K9K and NEMA 4X rated, ideal for both indoor and outdoor use.
Quick Specs:
- Only compatible with 2nd generation main units and cables
- Up to 60 fps at 1080p and up to 180 fps at 720p
- Rugged sensor unit
- IP66/IP67/IP6K9K rated
Please see the related tabs for the 02641-001 datasheet and compatible accessories.
