Package Contents:
-

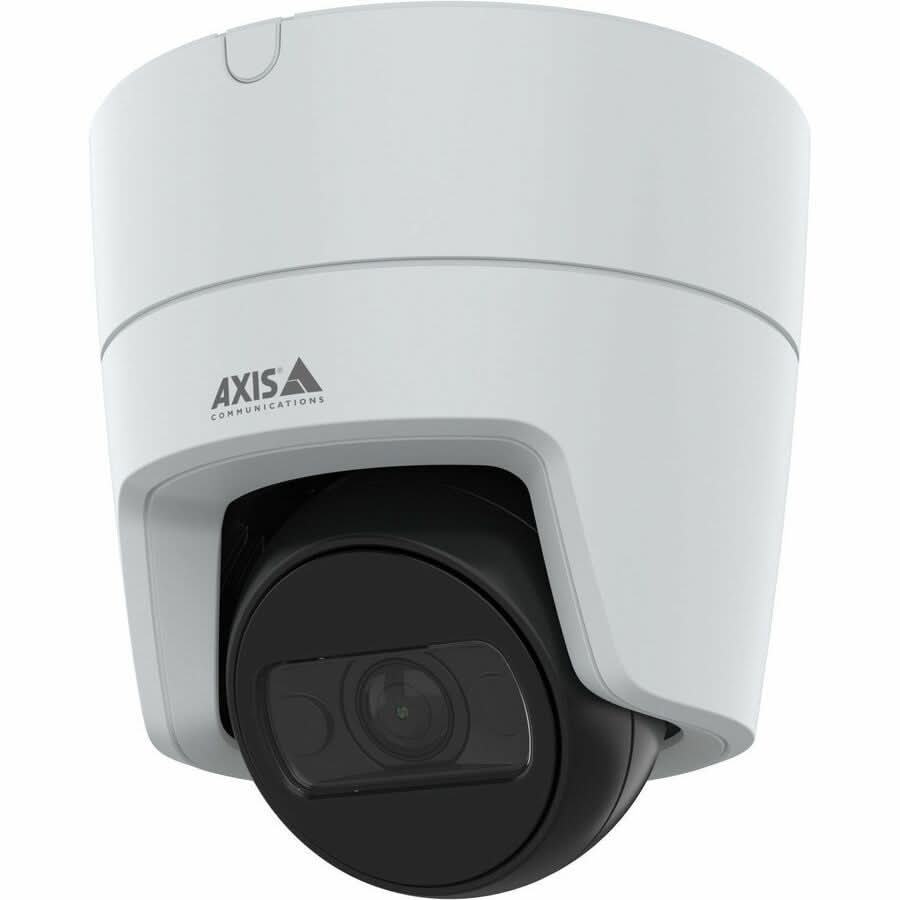

M3125-LVE Network Camera
-
Installation Guide
-
cable gaskets
-
Connector Guard
-
Owner Authentication Key
|
| Product Type: Network Camera |
| Manufacturer Part Number: 02919-001 |
| Manufacturer Website Address: http://www.axis.com |
| Protocols: IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTCP,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1AR,IEEE 802.1X (EAP-TLS),ONVIF,mDNS (Bonjour) |
| Limited Warranty: 5 Year |
| Weight (Approximate): 859.80 lb |
| Color Supported: Color |
| Connectivity Technology: Wired |
| Durability: Weather Proof |
| Features: Day/Night,Ingress Protection,Motion Detection,Vehicle Detection,Human Detection,HTTPS Encryption,Password Protection,Privacy Masking,Wide Dynamic Range,White Balance,SD Card Local Storage |
| Form Factor: Dome |
| Internal Memory: 1 GB |
| Lens Type: Fixed |
| Manufacturer: Axis Communications |
| Product Model: M3126-LVE |
| Product Name: M3125-LVE Network Camera |
| Mount Type: Wall Mount,Ceiling Mount |
| Video Formats: H.264,H.265,Motion JPEG,Zipstream,H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Product Series: M31 |
| Brand Name: AXIS |
| Maximum Aperture: f/2.1 |
| Image Sensor Size: 1/2.7" |
| Maximum Video Resolution: 2688 x 1512 |
| Maximum Frame Rate: 30 fps |
| Maximum Focal Length: 2.40 mm |
| Image Sensor Type: RGB CMOS |
| Effective Camera Resolution: 4 Megapixel |
| Ethernet Technology: Fast Ethernet |
| Field Of View: Horizontal field of view: 130°, Vertical field of view: 73° |
| Minimum Operating Temperature: -22°F (-30°C) |
| Maximum Operating Temperature: 122°F (50°C) |
| Minimum Storage Temperature: -40°F (-40°C) |
| Maximum Storage Temperature: 149°F (65°C) |
| Network (Rj 45): Yes |
| Longest Shutter Speed: 2 Second |
| Shortest Shutter Speed: 1/38500 Second |
| Lens Mount Type: M12-mount |
| Remote Management: Yes |
| Maximum Power Consumption: 10.50 W |
| Night Vision: Yes |
| Hd Recording: Yes |
| Lens Included: Yes |
| Night Vision Distance: 65.62 ft |
| Camera Iris: Fixed |
| Storage Type: Memory Card |
| Taa Compliant: Yes |
| Indoor/Outdoor: Indoor/Outdoor |
| Feature1: Network camera - Helps achieve high-quality video results |
| Feature2: Up to 2688 x 1512 resolution for surveillance in real-time |
| Feature3: Features RGB CMOS sensor |
| Feature4: 2.40 mm maximum focal length provides incredible detail and how effective is your network camera |
| Feature5: f/2.1 maximum aperture for reliable, detailed, and sharp output with added dependability |
| Feature6: Provides night vision of objects at a distance of up to 65.62 ft |
| Feature7: Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video |
| Feature8: Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain |
| Feature9: Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras |
| Feature10: PoE power source type for your network camera better reliance and maximum energy dependability |
