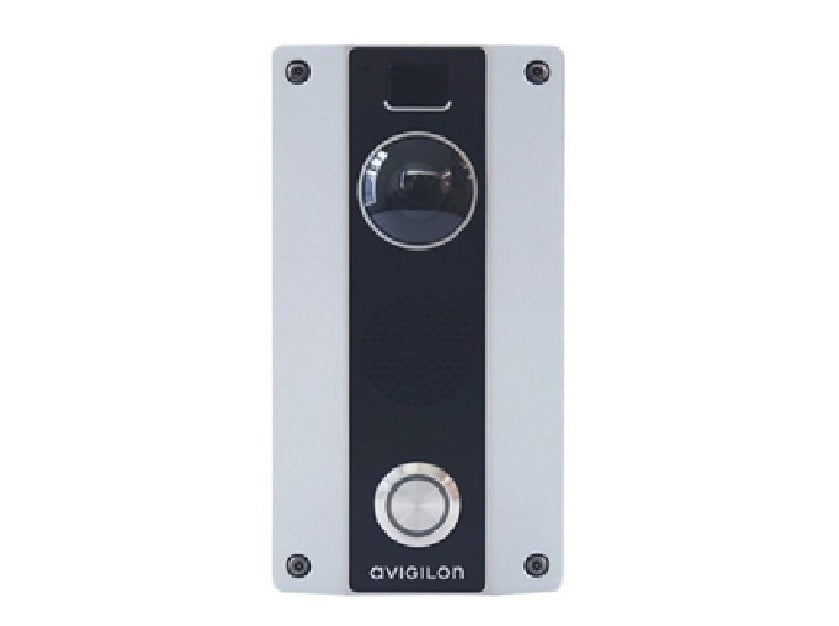

The Avigilon 3.0C-H4VI-RO1-IR is a 3-megapixel H4 Video Intercom featuring a fisheye lens, bi-directional communication, and integrated IR illumination, designed for secured entry systems. The "RO1" in the model name indicates it is for recessed mounting.



Specifications

Model Number:  3.0C-H4VI-RO1-IR

Brand:  Avigilon

Alt Part Number(s):  3.0C-H4VI-RO1-IR

Product Type: Camera



Technical Description

Brand: Avigilon

Model:  3.0C-H4VI-RO1-IR

Product Type:  Intercom Camera

Resolution: 3 MP (2048 × 1536) progressive-scan CMOS sensor

Frame Rate: Up to 30 fps

Lens: Fixed 1.83 mm,

Horizontal field of view:  170°

Effective IR range:  ~5 m (15 ft) at 0 lux

Ethernet: 100 Mbit/s, PoE (IEEE 802.3af)

Protocols: IPv4/IPv6, HTTP/S, RTSP, RTP, TCP/UDP, DHCP, DNS, NTP, IGMP, and more

Onboard storage:  microSD/SDHC/SDXC support

Audio codecs:  Opus, G.711

Weather rating:  IP66 dust/water resistance

Vandal resistance:  IK10 impact rating

Compression:  H.264

Power: 12 V DC

Mounting:  Recessed / Flush mount
