Description

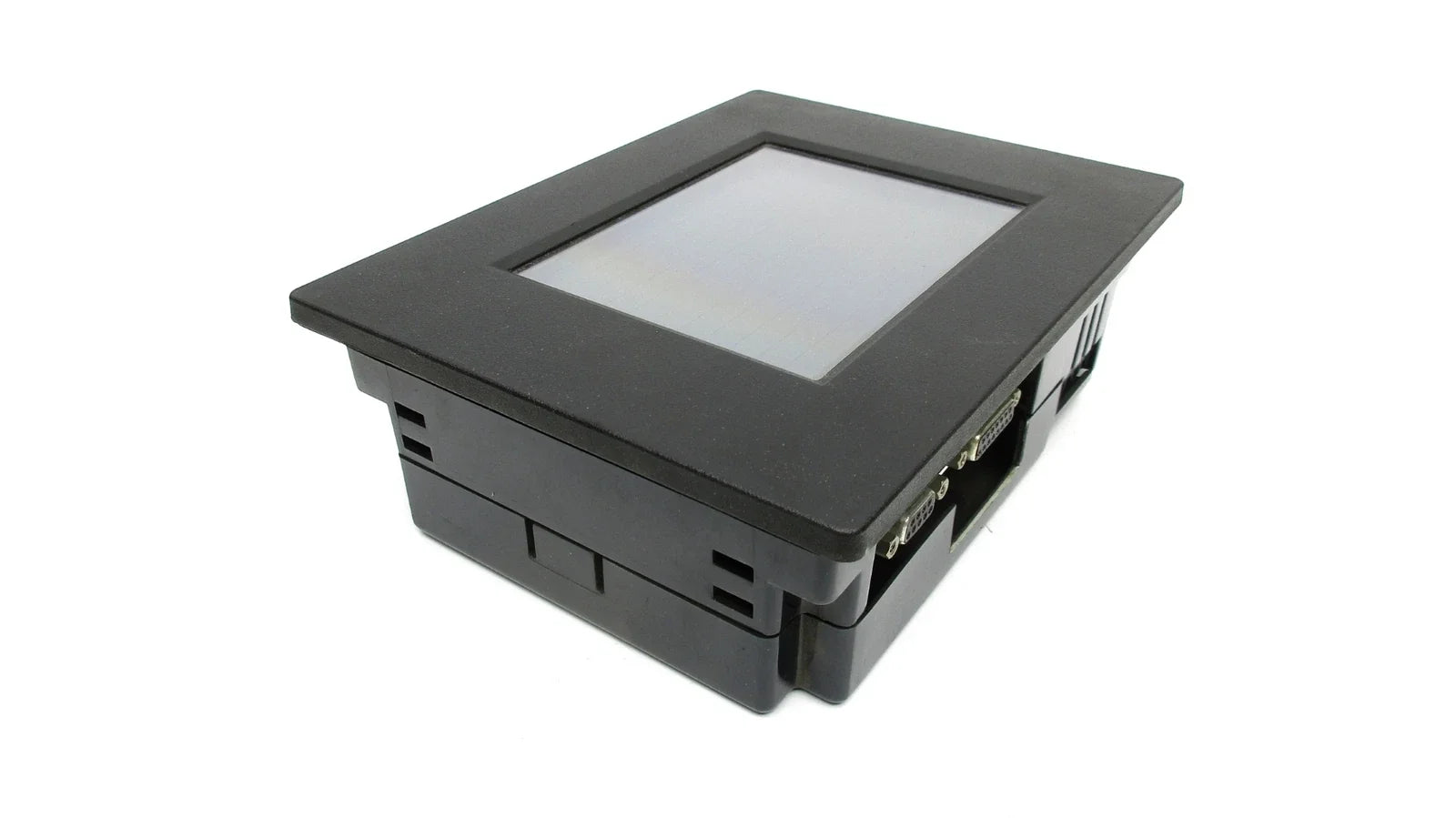

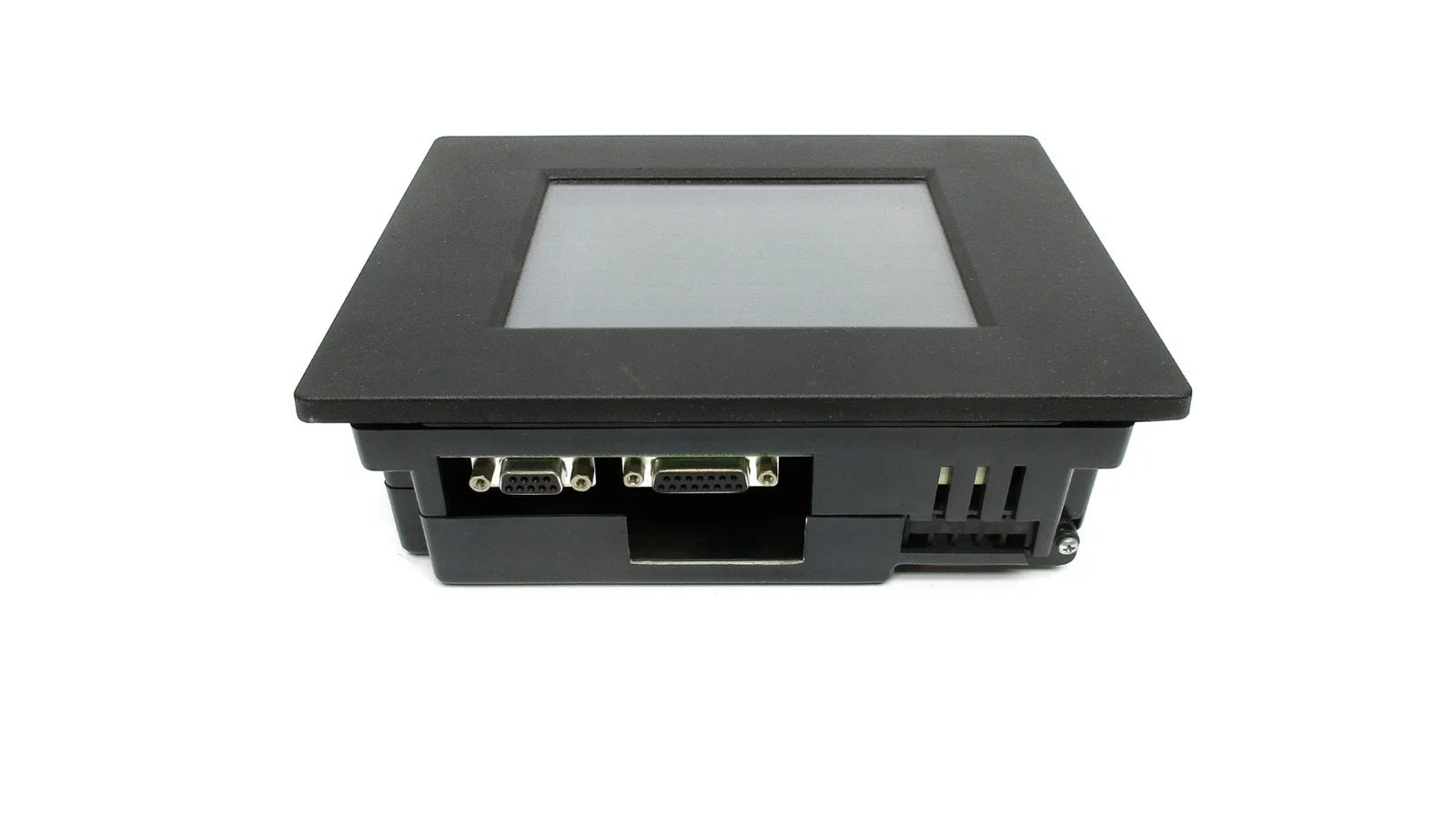

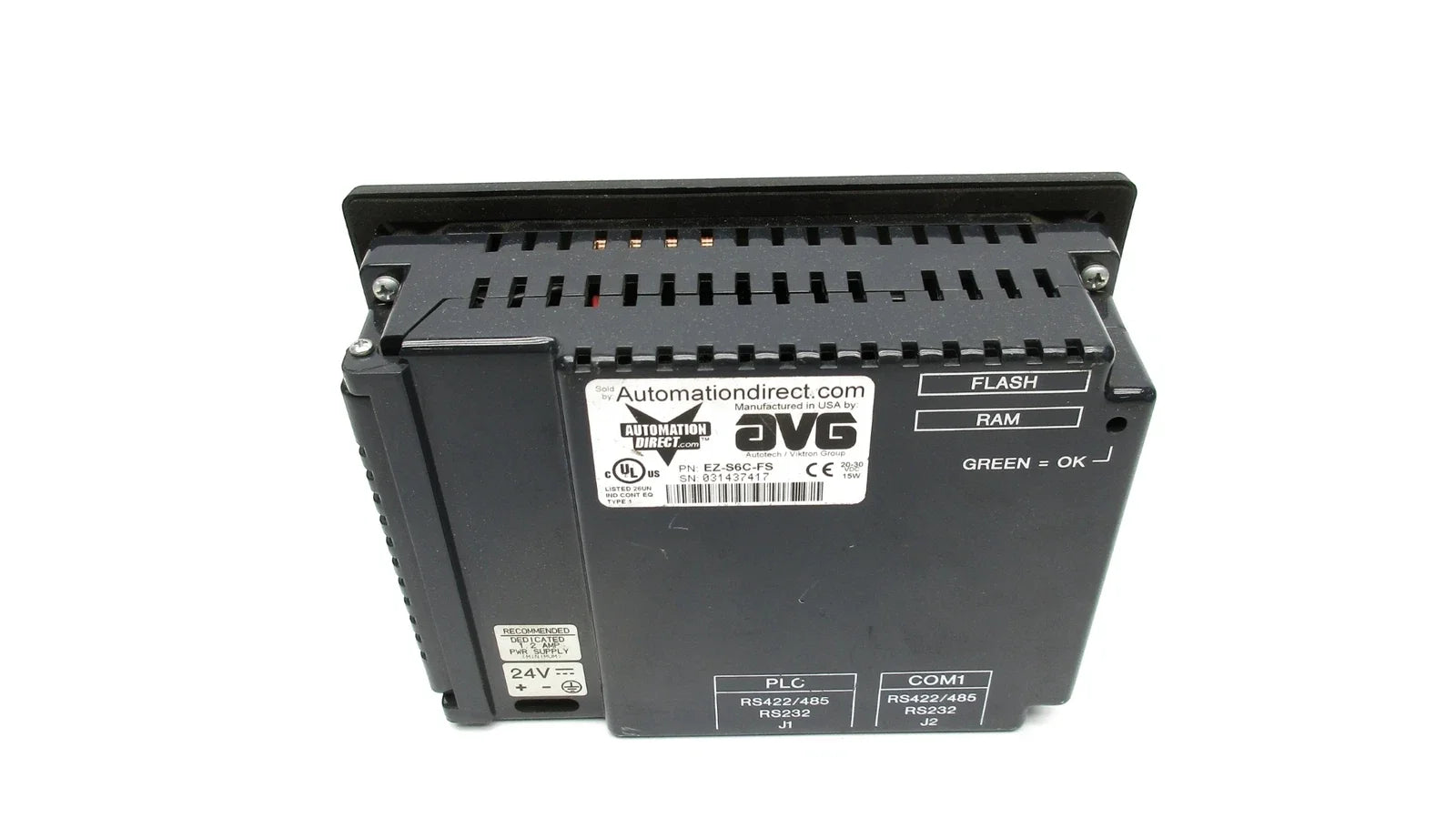

The Automation Direct EZ-S6C-FS EZTouch operator panel is a 6-inch slim color touch panel designed for industrial monitoring and control applications. It features a 320 × 240 STN LCD display with a responsive resistive touchscreen interface for efficient operator interaction. This panel provides reliable visualization and control in compact automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Industrial Automation |
| Part Number |
EZ-S6C-FS |
| Subcategory |
HMI Panels |
| Series |
EZTouch |
| Display Size |
6 inch |
| Display Type |
STN LCD Color |
| Resolution |
320 × 240 pixels |
| Touchscreen Type |
Resistive (16 × 12 grid, 192 cells) |
| Memory |
512K |
| Memory Expansion |
Up to 1 MB |
| Operating Temperature |
0°C to 45°C |
| Humidity Range |
10% to 95% |
| Enclosure Rating |
NEMA 1 |
| Bezel Type |
Slim |
| Weight |
2.5 lb (approx.) |
Information About EZ-S6C-FS
The EZ-S6C-FS is part of the EZTouch series, developed to deliver user-friendly human-machine interface solutions with a slim bezel design for space-constrained installations. It includes a 6-inch STN LCD display with a 16 × 12 touch grid, allowing precise and responsive input for system control. The panel is equipped with 512K memory expandable up to 1 MB, supporting application storage and interface configuration. Designed for general industrial use, it operates within standard temperature and humidity ranges and features a NEMA 1 enclosure for protection in controlled environments.
Key Features:
- 6-Inch STN LCD Display: Provides clear visualization with 320 × 240 pixel resolution
- Slim Bezel Design: Optimized for compact panel installations and space efficiency
- Resistive Touchscreen Interface: 192-cell touch grid ensures accurate operator input
- Expandable Memory: Includes 512K memory expandable to 1 MB for application storage
- Industrial Operating Range: Supports operation from 0°C to 45°C and 10–95% humidity
- NEMA 1 Enclosure: Suitable for protected indoor industrial environments
- Full Feature Set: Supports advanced HMI functionality for monitoring and control
- EZTouch Series Compatibility: Integrates with Automation Direct control systems
The EZ-S6C-FS delivers the reliability and precision required for operator interface control and industrial monitoring applications.
