Description

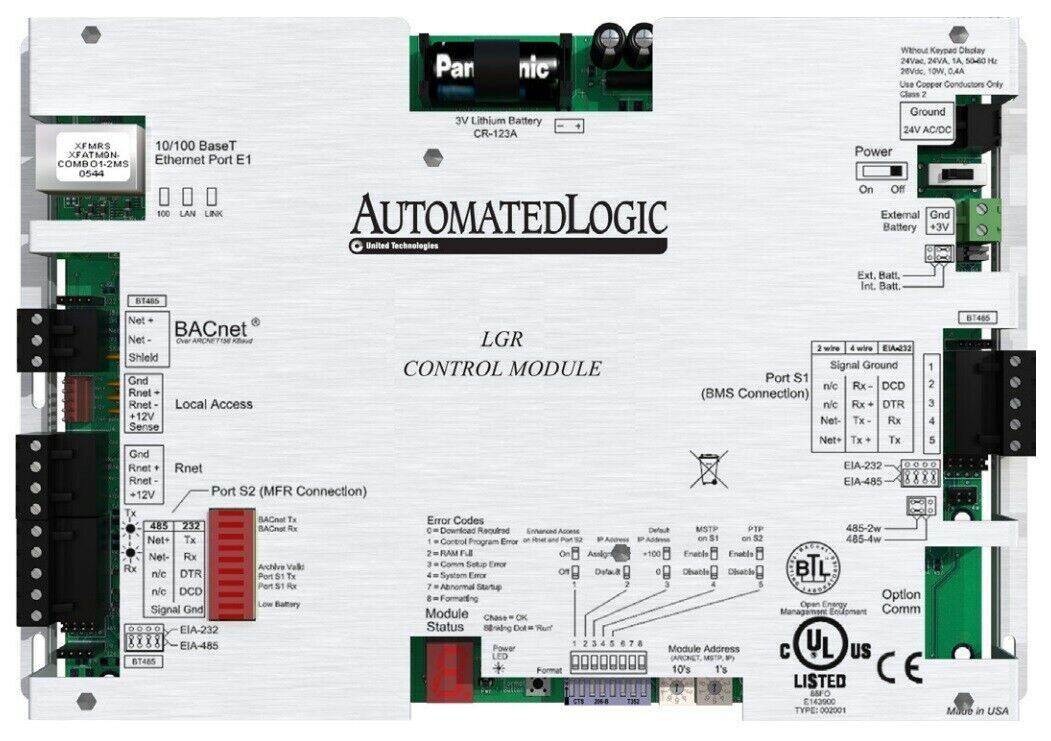

The Automated Logic LGR1000 router/control module is a high-speed BACnet router designed for advanced building automation system integration. It supports up to 1000 third-party points and provides reliable Ethernet-based communication. This module enables efficient data exchange and centralized control across complex automation networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automated Logic |
| Category |
Building Automation |
| Part Number |
LGR1000 |
| Subcategory |
BACnet Routers |
| Device Type |
Router / Control Module |
| Protocol |
BACnet |
| Integration Capacity |
Up to 1000 third-party points |
| Network Interface |
10/100 Base-T Ethernet |
| Power Supply |
24 VAC ±10%, 50/60 Hz |
| DC Power Option |
26 VDC ±10% |
| Power Consumption |
10 W |
| Real-Time Clock |
Battery-backed |
| Application |
Building automation and HVAC integration |
| Weight |
1.5 lb (approx.) |
Information About LGR1000
The LGR1000 is part of the LGR series, engineered for large-scale BACnet routing and system integration in building automation environments. It utilizes 10/100 Base-T Ethernet connectivity to ensure high-speed communication between networked devices and controllers. The module is designed to handle up to 1000 integration points, making it suitable for extensive multi-device systems. It operates on 24 VAC or 26 VDC power and includes a battery-backed real-time clock to maintain accurate system timing and coordination.
Key Features:
- High Integration Capacity: Supports up to 1000 third-party points for large-scale systems
- High-Speed BACnet Routing: Enables fast and reliable communication across automation networks
- Ethernet Connectivity: 10/100 Base-T interface for system integration
- Flexible Power Options: Operates on 24 VAC or 26 VDC for installation versatility
- Battery-Backed Real-Time Clock: Maintains accurate timekeeping during power interruptions
- Building Automation Compatibility: Designed for HVAC and facility control systems
- Reliable Data Handling: Ensures stable communication between connected devices
- Centralized Network Integration: Supports efficient management of distributed systems
The LGR1000 delivers the reliability and precision required for BACnet routing and large-scale building automation integration.
