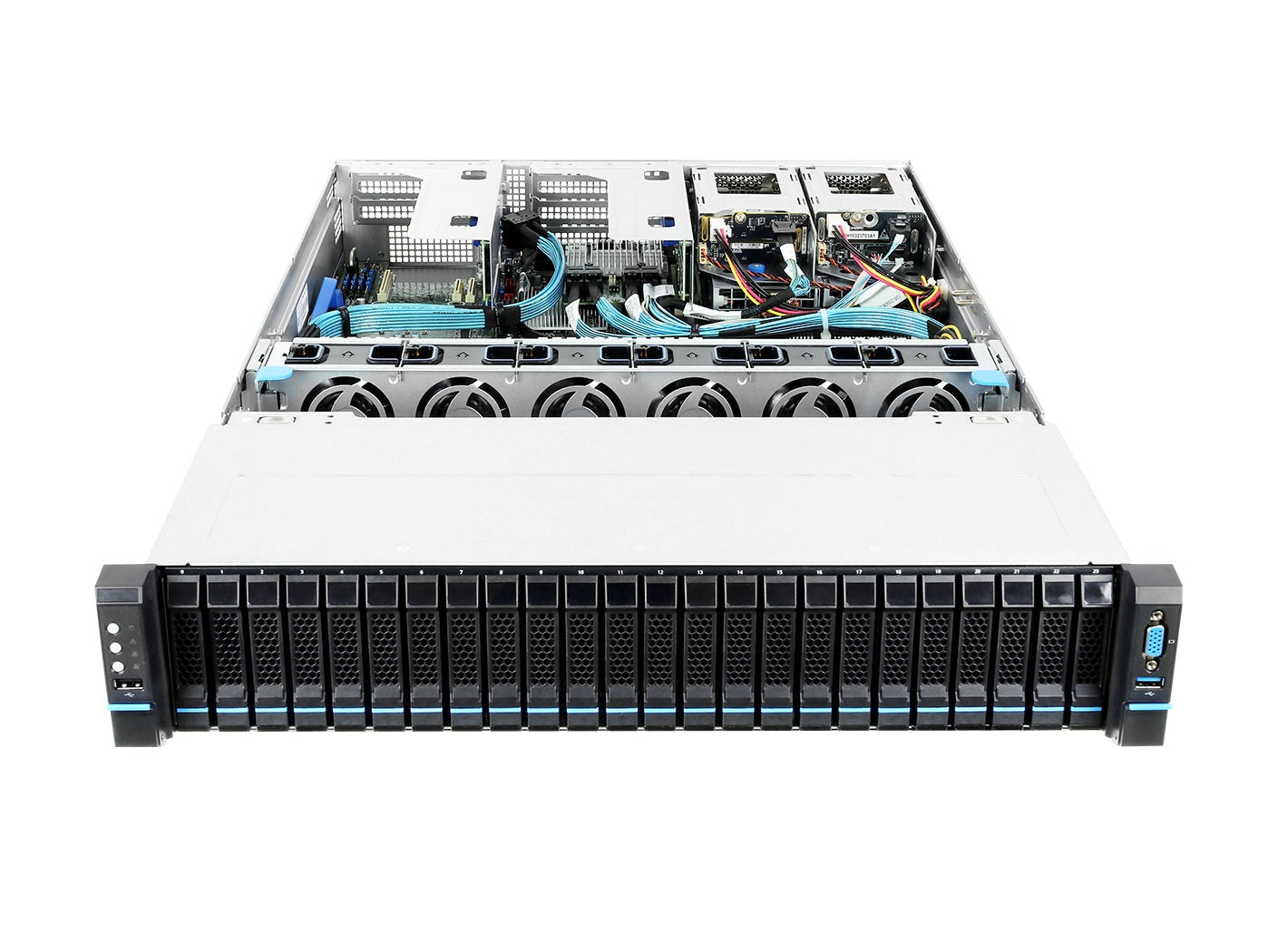

The RM23724-C622LM/22E is a 2U rackmount server barebone system from ASRock Rack. It is designed for high-density storage and high-performance computing, featuring support for dual Intel Xeon Scalable processors and extensive memory capacity
Specifications
Model Number: RM23724-C622LM/22E
Brand: ASRock
Alt Part Number(s): RM23724-C622LM/22E
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: RM23724-C622LM/22E
Chassis Model: RM23724
Processor Type: 2nd Gen Intel Xeon Scalable Processors
Processor Core: 80 Core/160 Thread
Processor Power: 70W to 205W TDP per socket
Processor Socket: Dual Socket P (LGA3647)
Motherboard: EP2C622D24LM
Chipset Type: Intel C622
Graphics Controller: ASPEED AST2500
Networking: 1 × RJ‑45 Gigabit Ethernet port, 1 × RJ‑45 Dedicated IPMI LAN port
Number of Drive Bays: 28 hot‑swappable 2.5″ drives
Expansion Slots: 3 (2 PCIe + 1 Mezzanine)
Memory Supported: Up to 6TB
Memory Technology: DDR4
Memory Speed: 2933, 2666, 2400, 2133MHz
Memory Slots: 24 × DDR4 DIMM slots
Power Supply: 1200W 2 (1+1), CRPS Platinum
System Cooling: 6 x 60 x 38 mm PWM (Hot-swap)
Form Factor: 2U Rackmount
