Overview

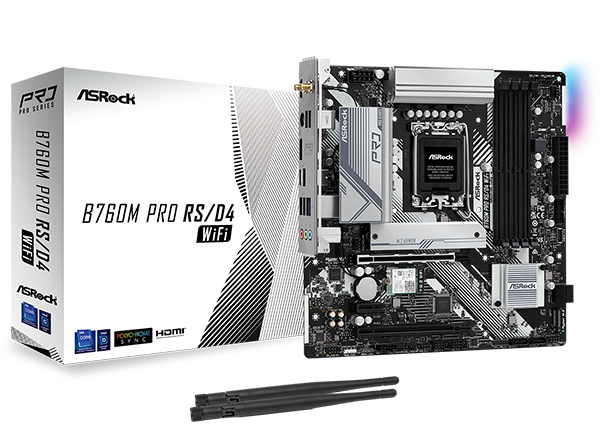

ASRock B760M PRO RS/D4 WIFI Motherboard features an Intel LGA1700 socket supporting 12th, 13th, and 14th Gen Core CPUs with DDR4 memory up to 128 GB. It includes PCIe 4.0 x16 GPU slot, 2 M.2 Gen4 slots, Wi-Fi 6E, Bluetooth 5.3, 2.5G Ethernet, HDMI/DisplayPort outputs, and 7.1 HD audio in a Micro ATX form factor.
Specifications
Model Number: B760M PRO RS/D4 WIFI
Brand:ASRock
Alt Part Number(s): B760M PRO RS/D4 WIFI
Product Type: Motherboard
Technical Description
Brand:ASRock
Model: B760M PRO RS/D4 WIFI
CPU Socket: Intel LGA1700
Supported CPUs: 12th Gen Intel® Core™; 13th Gen Intel® Core™; 14th Gen Intel® Core™
Chipset: Intel® B760
Boost Tech: Turbo Boost Max 3.0; Thermal Velocity Boost; Adaptive Boost
Memory Type: DDR4
Memory Slots / Max: 4 DIMMs; up to 128 GB
Memory Speed: Up to 5333+ MHz (OC)
Memory Profiles: Intel XMP 2.0
PCIe GPU Slot: 1 × PCIe 4.0 x16
Integrated Graphics: Intel Xe / UHD (CPU dependent)
Display Outputs: HDMI 2.1 (up to 4K @ 60Hz); DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)
M.2 Slots: 2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6 Gb/s
RAID Support: RAID 0; RAID 1; RAID 5; RAID 10
LAN: 2.5G Ethernet (Dragon RTL8125BG)
Wireless: Wi-Fi 6E; Bluetooth 5.3
Audio Codec: Realtek ALC897
Audio Channels: 7.1 HD Audio with Nahimic
USB Ports: USB-C & USB-A (USB 3.2 Gen1 and USB 2.0)
Expansion Slots: PCIe 4.0 x16; PCIe 4.0 x4; PCIe 4.0 x1
VRM: 7+1+1 power phase; 50A Dr.MOS
Cooling: Multiple fan and water-pump headers with smart control
Form Factor: Micro-ATX; 24.4 × 24.4 cm
OS Support: Windows 10 64-bit; Windows 11 64-bit
*
