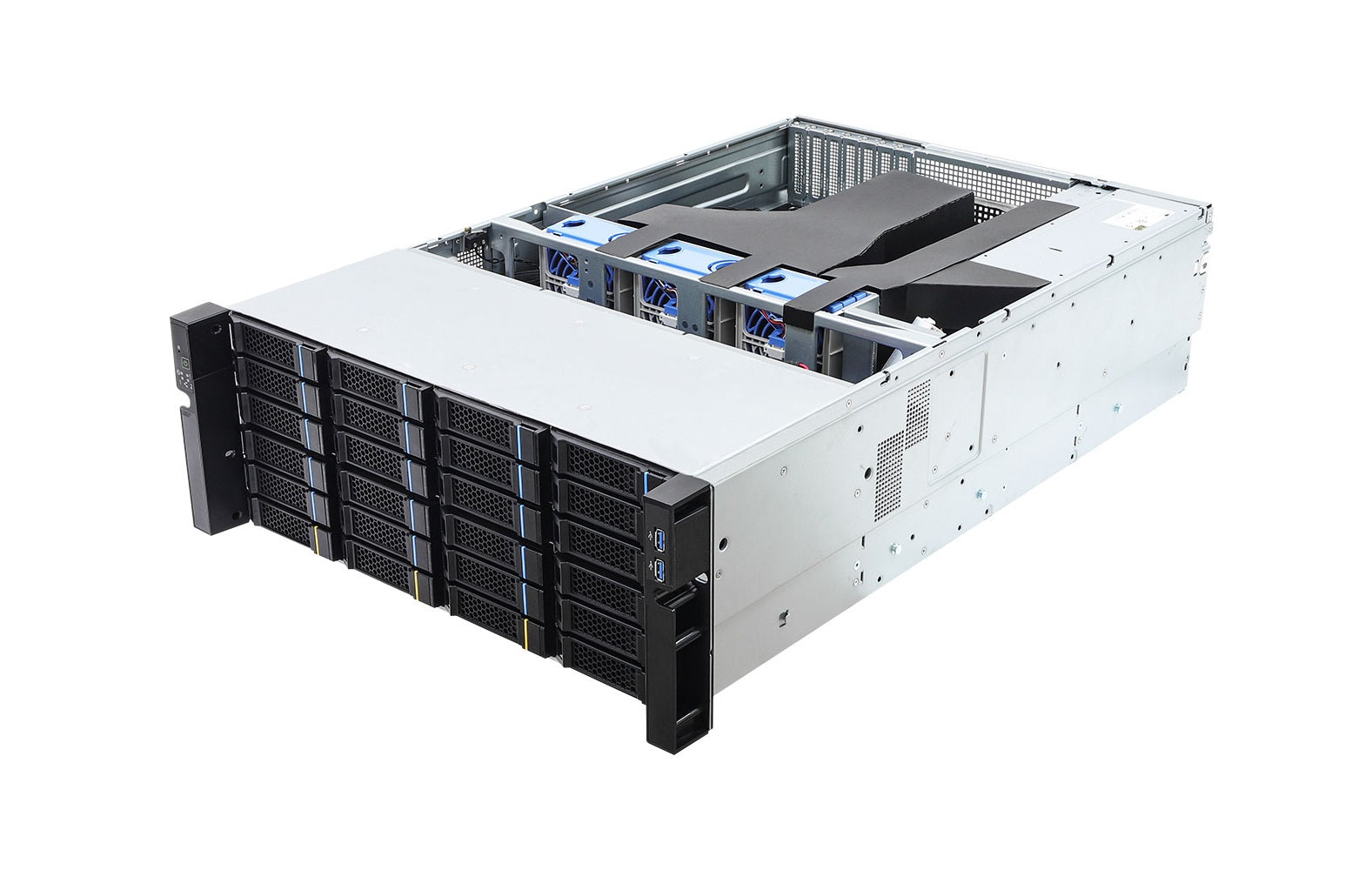

The ASRock Rack 4U36L6E-GENOA/2T is a high-density 4U storage server barebone built for AMD EPYC™ 9005/9004 series processors. It is designed for massive data capacity, featuring 36 hot-swap drive bays and Gen5 PCIe connectivity.
Specifications
Model Number: 4U36L6E-GENOA/2T
Brand: ASRock
Alt Part Number(s): 4U36L6E-GENOA/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 4U36L6E-GENOA/2T
Processor Type: AMD EPYC 9004/9005 Series
Processor Socket: Single SP5 (LGA 6096)
Processor Core: 96-Core/192 Threads
Processor Power: 400W
Chipset Type: System on Chip
Motherboard: GENOAD8UD-2T/X550
Networking: 2 × 10 GbE RJ‑45 (Intel X550‑AT2 onboard)
Drive Bays: 36 × 3.5″ SATA/SAS,6 × 2.5″ hot‑swap NVMe (PCIe 3.0 ×4)
Graphics Controller: ASPEED AST2600 BMC
VRAM Capacity: 512MB
Memory Supported: 2TB
Memory Technology: DDR5 RDIMM 128GB / RDIMM‑3DS 256GB per slot
Memory Channels: 8‑Channel
Memory Slots: 8 x DIMM
Expansion Slots: 4 × HHHL PCIe 5.0 ×16,2 × M.2 (PCIe 5.0 ×4)
Cooling: 7 PWM Hot-swap 80x38mm fans
Power Supply: 1+1 Redundant 1200 W CRPS, 80 PLUS Platinum
Form Factor: 4U Rackmount
