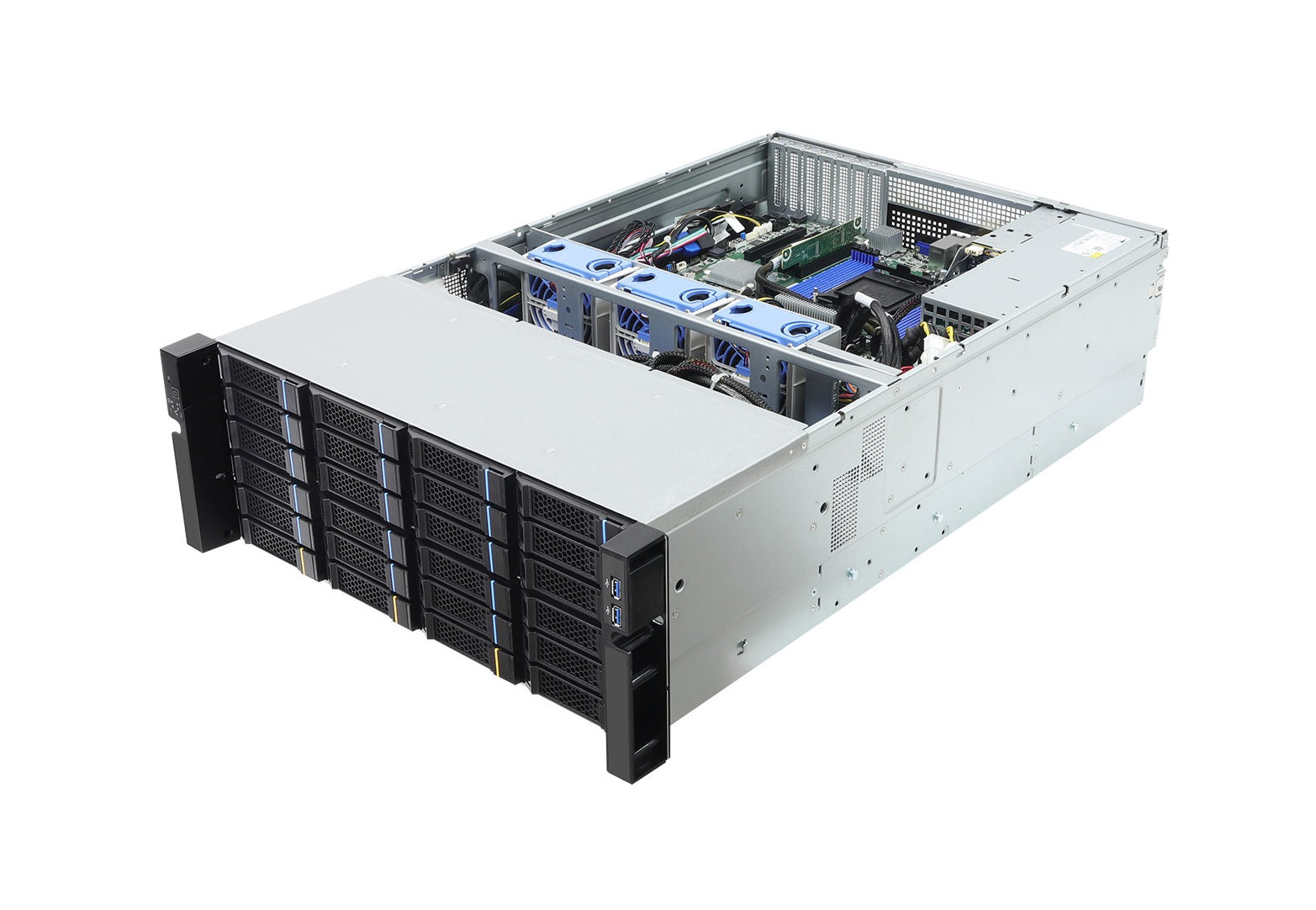

The ASRock Rack 4U36L6E-EGS/2T is a 4U storage-dense barebone server designed for 5th and 4th Gen Intel® Xeon® Scalable processors (LGA 4677). It features 36 hot-swap 3.5" drive bays, making it ideal for large-scale data storage and enterprise server applications.
Specifications
Model Number: 4U36L6E-EGS/2T
Brand: ASRock
Alt Part Number(s): 4U36L6E-EGS/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 4U36L6E-EGS/2T
Processor Type: 4th/5th Gen Intel Xeon Scalable
Processor Socket: Single E (LGA 4677)
Processor Core: 64-Core/128 Threads
Processor Power: 350W
Chipset Type: Intel C741
Motherboard: SPC741D8UD-2T/X550
Networking: Dual 10 GbE ports (Intel X550‑AT2)
Drive Bays: 36 × 3.5″ hot‑swap bays (SATA/SAS)
Graphics Controller: ASPEED AST2600 BMC
Memory Capacity: Up to 512GB per DIMM
Memory Supported: 4TB
Memory Channels: 8‑Channel
Memory Slots: 8 x DIMM
Expansion Slots: 3 × HHHL PCIe 5.0 / CXL 1.1 ×16 slots
Cooling: 7 PWM Hot-swap fans
Power Supply: 1+1 × 1200 W 80-PLUS Platinum CRPS
Form Factor: 4U Rackmount
