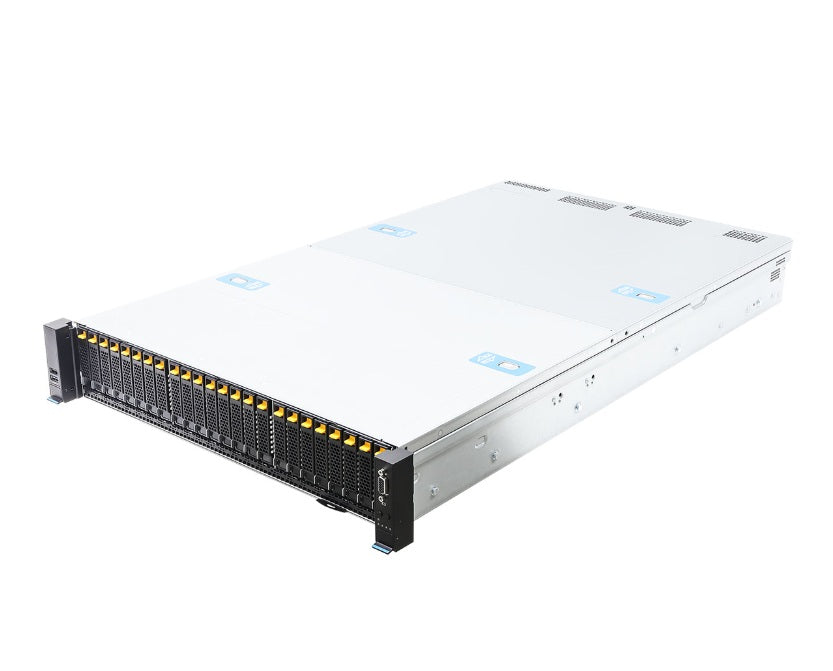

The ASRock Rack 2U24E-GENOA2 is a 2U rackmount server barebone designed for high-density storage and high-performance computing, specifically optimized for AMD EPYC™ 9005 and 9004 series processors. It features a dual-socket configuration and extensive NVMe storage capabilities to support demanding data center workloads.
Specifications
Model Number: 2U24E-GENOA2
Brand: ASRock
Alt Part Number(s): 2U24E-GENOA2
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 2U24E-GENOA2
Processor Type: AMD EPYC 7003 Series
Processor Core: 192 Core/ 384-Thread
Processor Power: Up to 360W
Processor Socket: Dual Socket SP5 (LGA 6096)
Motherboard: GENOA2D24TM3-2L+/2U
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 2 RJ45 (1GbE) by Intel i350
Number of Drive Bays: 24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 2 fixed 2.5'' NVMe (PCIe5.0 x4) drive bays
Expansion Slots: 2 × FHHL PCIe 5.0 ×16, 1 × HHHL PCIe 5.0 ×8 slot, 1 × OCP NIC 3.0 (PCIe 5.0 ×16), 2 × M.2 slots
Memory Supported: 12TB
Memory Technology: DDR5 SDRAM
Memory Speed: 4800 MHz
Memory Slots: 12+12 DIMM slots (1DPC)
Memory Channels: 16-Channels
Cooling: 6 PWM hot-swap 60x38 mm fans
Power Supply: 1+1 CRPS 1000W
Form Factor: 2U Rackmount
Height: 3.4"
Width: 17.2"
Depth: 30.3"
