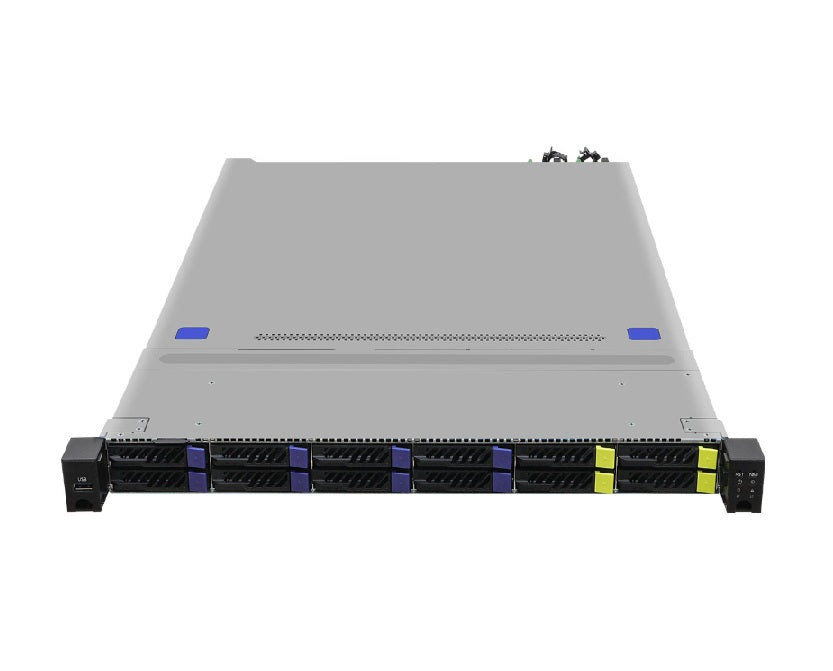

The ASRock Rack 1U8S4E-EGS/2T is a 1U, single-socket LGA 4677 barebone server designed for 4th/5th Gen Intel Xeon Scalable processors, featuring 8 DDR5 DIMM slots and 12 front drive bays (4 NVMe/8 SATA). The platform is built for high-speed connectivity with dual 10GbE networking, a PCIe 5.0 x16 slot, and redundant 750W PSUs. For technical specifications and detailed features, visit ASRock Rack.
Specifications
Model Number: 1U8S4E-EGS/2T
Brand: ASRock
Alt Part Number(s): 1U8S4E-EGS/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U8S4E-EGS/2T
Processor Type: Intel Xeon Scalable processors
Processor Core: 86-Core/172-Thread
Processor Power: Up to 300W
Processor Socket: Single Socket E (LGA 4677)
Motherboard: SPC741D8UD-2T/X550
Chipset: Intel C741
Graphics Controller: ASPEED AST2600
Networking: 2 RJ45 (10GbE) by Intel X550-AT2
Number of Drive Bays: 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 8 Hot-swap 2.5" SATA drive bays
Expansion Slots: 1 × PCIe 5.0 ×16
Memory Supported: 2TB
Memory Technology: DDR5 SDRAM
Memory Speed: 5600MT/s, 4800MT/s
Memory Slots: 8 DIMM Slots
Memory Channels: 8 Channels
Cooling: 6 PWM Easy-swap 40x56 mm fans
Power Supply: 1+1, 80-PLUS Platinum, 750W Slim PSU
Form Factor: 1U Rackmount
Height: 1.7"
Width: 17.2"
Depth: 26.6"
