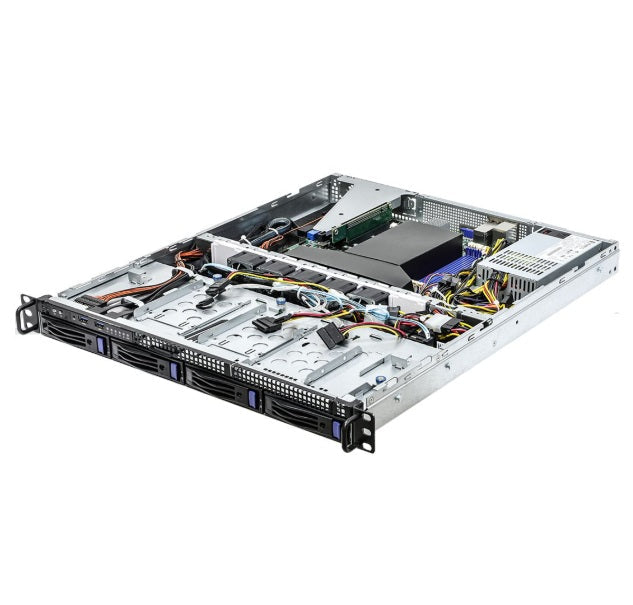

The ASRock Rack 1U4LW-ICX/2T is a cost-optimized, single-socket 1U barebone server designed for general-purpose workloads. It specifically targets 3rd Gen Intel Xeon Scalable (Ice Lake) processors, offering high-speed 10GbE networking and flexible storage in a shallow-depth chassis
Specifications
Model Number: 1U4LW-ICX/2T
Brand: ASRock
Alt Part Number(s): 1U4LW-ICX/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4LW-ICX/2T
Processor Type: Intel Xeon processors
Processor Core: 40-Core
Processor Power: 270W
Processor Socket: Single Socket P+ (LGA 4189)
Chipset Type: Intel C621A
Graphics Controller: ASPEED AST2500
Networking:(10 GbE) Intel X710-AT2: 2 RJ45
External:4 Hot-swap 3.5'' SATA drive bays
Internal: 3 fixed 2.5'' SATA drive bays
Rear Expansion Slots: 1 FHHL PCIe4.0 x16
Memory Supported: Up to~ 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed: 3200MHz
Memory Slots: 8-DIMM slots
Memory Channels: 8-Channels
Cooling: 4 PWM Hot-swap 40 x 28 mm fans
Power Supply: Single PSU 600W 80-PLUS Platinum
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 21"
