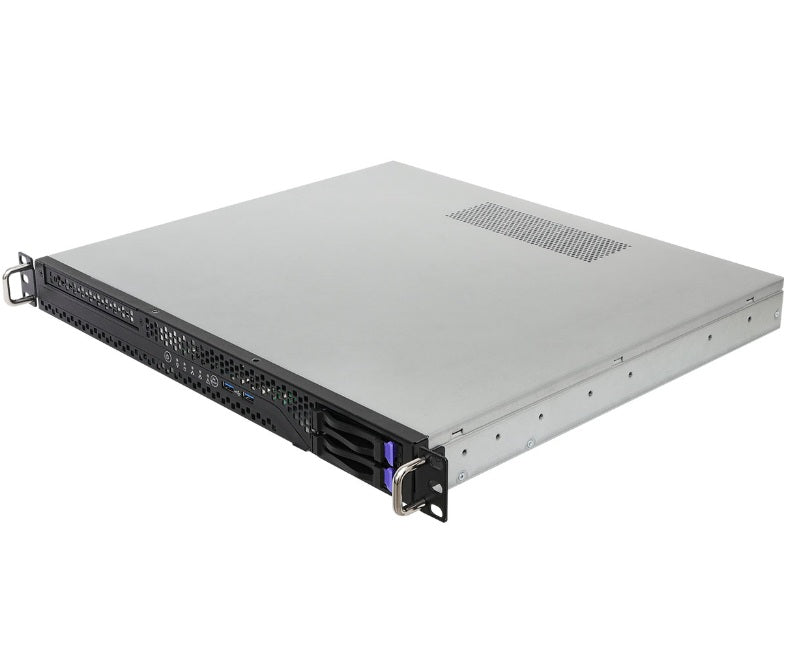

The ASRock Rack 1U2S-B650 is a 1U rackmount compact server barebone designed for AMD AM5 processors, specifically the Ryzen 7000, 8000, and 9000 series, as well as EPYC 4004 series. It is primarily marketed as an edge server or general-purpose networking solution for businesses looking to grow their IT infrastructure.
Specifications
Model Number: 1U2S-B650
Brand: ASRock
Alt Part Number(s): 1U2S-B650
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U2S-B650
Processor Type: AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series
Processor Core: 16-Core/ 32-Thread
Processor Power: Up to 170W
Processor Socket: Single Socket AM5 (LGA 1718)
Motherboard: B650D4U
Chipset Type: AMD B650E
Graphics Controller: ASPEED AST2600
Networking: 2 RJ45 (1GbE) by (Intel i210)
RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Number of Drive Bays: 2 × 2.5" hot-swap SATA, 1 × 3.5" SATA (fixed) or slim ODD
Expansion Slots: 1 × PCIe 4.0 x16 (FHHL)
Memory Supported: 192GB
Memory Technology: DDR5
Memory Speed: 5600 MHz (1DPC); 3600 MHz (2DPC)
Memory Slots: 4 DIMM slots
Memory Channels: Dual-channel
Cooling: 4 total PWM hot-swap fans (3 large + 1 smaller)
Power Supply: Single 315W 80 PLUS Gold PSU
Form Factor: 1U Rackmount
Height: 1.7"
Width: 15.5"
Depth: 16.9"
