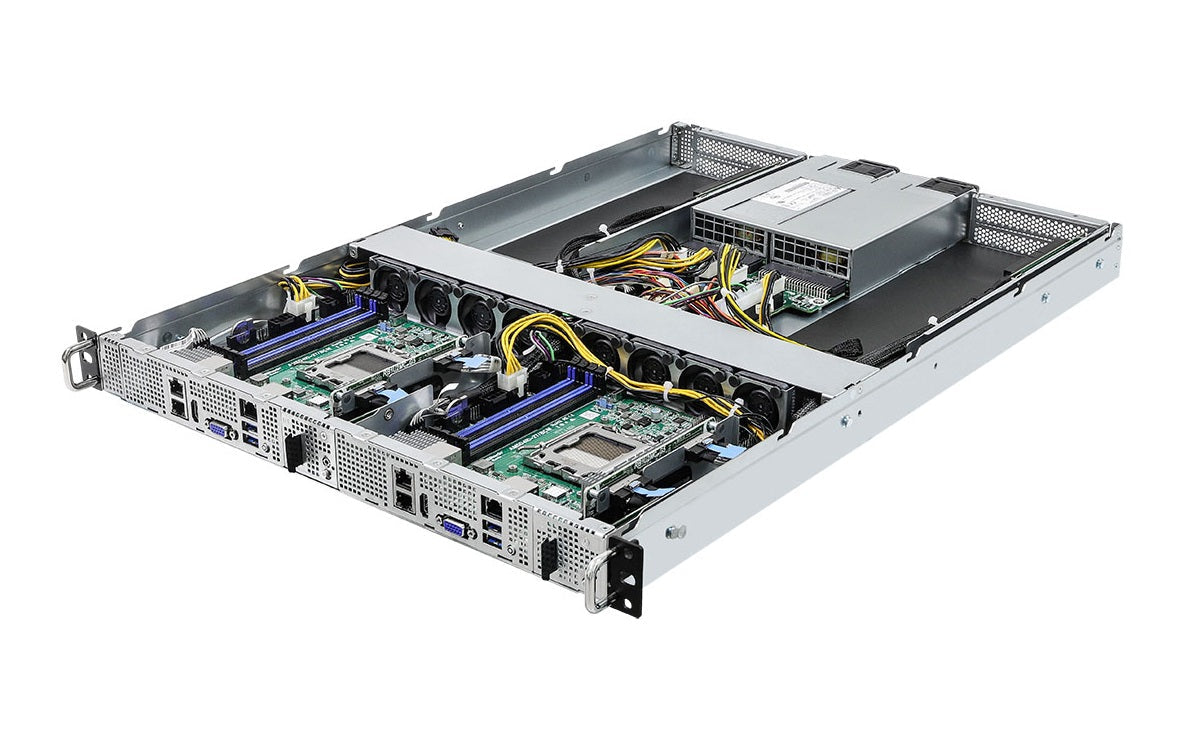

The ASRock Rack 1U2N2G-AM5/2T is a high-density 1U rackmount server barebone featuring two independent nodes. Designed for general-purpose server workloads, it supports modern AMD processors on the AM5 (LGA 1718) socket, including the AMD EPYC 4005/4004 and Ryzen 9000/8000/7000 series
Specifications
Model Number: 1U2N2G-AM5/2T
Brand: ASRock
Alt Part Number(s): 1U2N2G-AM5/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U2N2G-AM5/2T
Processor Type: AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series
Processor Core: 32 Core/64 Thread
Processor Power: Up to 120W
Processor Socket: Single Socket AM5 (LGA 1718)
Motherboard: AM5D4ID-2T/BCM
Chipset Type: KNOLL3 X300
Graphics Controller: ASPEED AST2600
Networking: 4 × 10GbE (data) 2 × IPMI (management)
Number of Drive Bays: 2 × M.2 NVMe drives (1 per node)
Expansion Slots: 2 × PCIe 5.0 x16 slots (1 per node)
Memory Supported: 384GB
Memory Technology: DDR5 288-pin ECC/non-ECC UDIMM
Memory Speed: 5600MHz (1DPC), 3600MHz (2DPC)
Memory Slots: 4 DIMM slots (2DPC)
Power Supply: 1000W 1+1 CRPS 80-PLUS Platinum
System Cooling: 8 PWM Hot-swap 40x56 mm fans
Form Factor: 1U Rackmount
Height: 1.7"
Width: 17.2"
Depth: 25.6"
