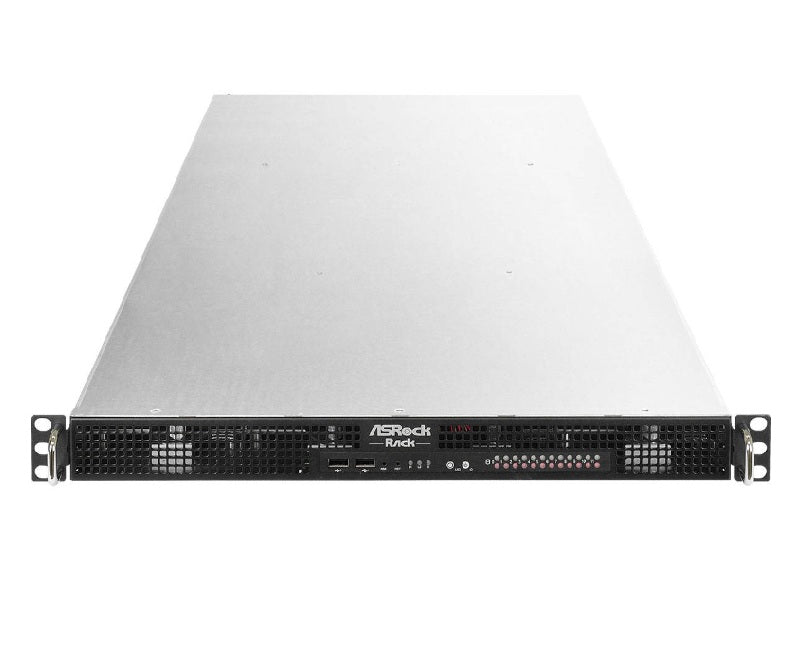

The ASRock Rack 1U12LX-C612D4U/2T8R is a 1U rackmount barebone server designed for high-density storage and networking, featuring a single LGA 2011-R3 socket for Intel Xeon E5-1600/2600 v3 and v4 series processors.
Specifications
Model Number: 1U12LX-C612D4U/2T8R
Brand: ASRock
Alt Part Number(s): 1U12LX-C612D4U/2T8R
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U12LX-C612D4U/2T8R
Processor Type: Intel Xeon processor E5-1600/2600 v3&v4 series
Processor Core: 22-Core/44 threads
Processor Power: 145W
Processor Socket: Single Socket LGA 2011 R3
Motherboard: EPC612D4U-2T8R
Chipset Type: Intel C612
Graphics Controller: ASPEED AST2400
Networking: Dual 10GbE (Intel X540 controller)
Number of Drive Bays: 12 Bay 3.5" SATA HDD (6Gb/s)
Rear Expansion Slots: 3 PCIe expansion slots
Memory Supported: 256GB
Memory Technology: DDR4
Memory Speed: 2133 / 1866 MHz
Memory Slots: 4 DIMM slots
Memory Channels: 4-Channels
Cooling: 40 x 26 mm Fan x4
Power Supply: Redundant 550W Platinum
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 43.3"
