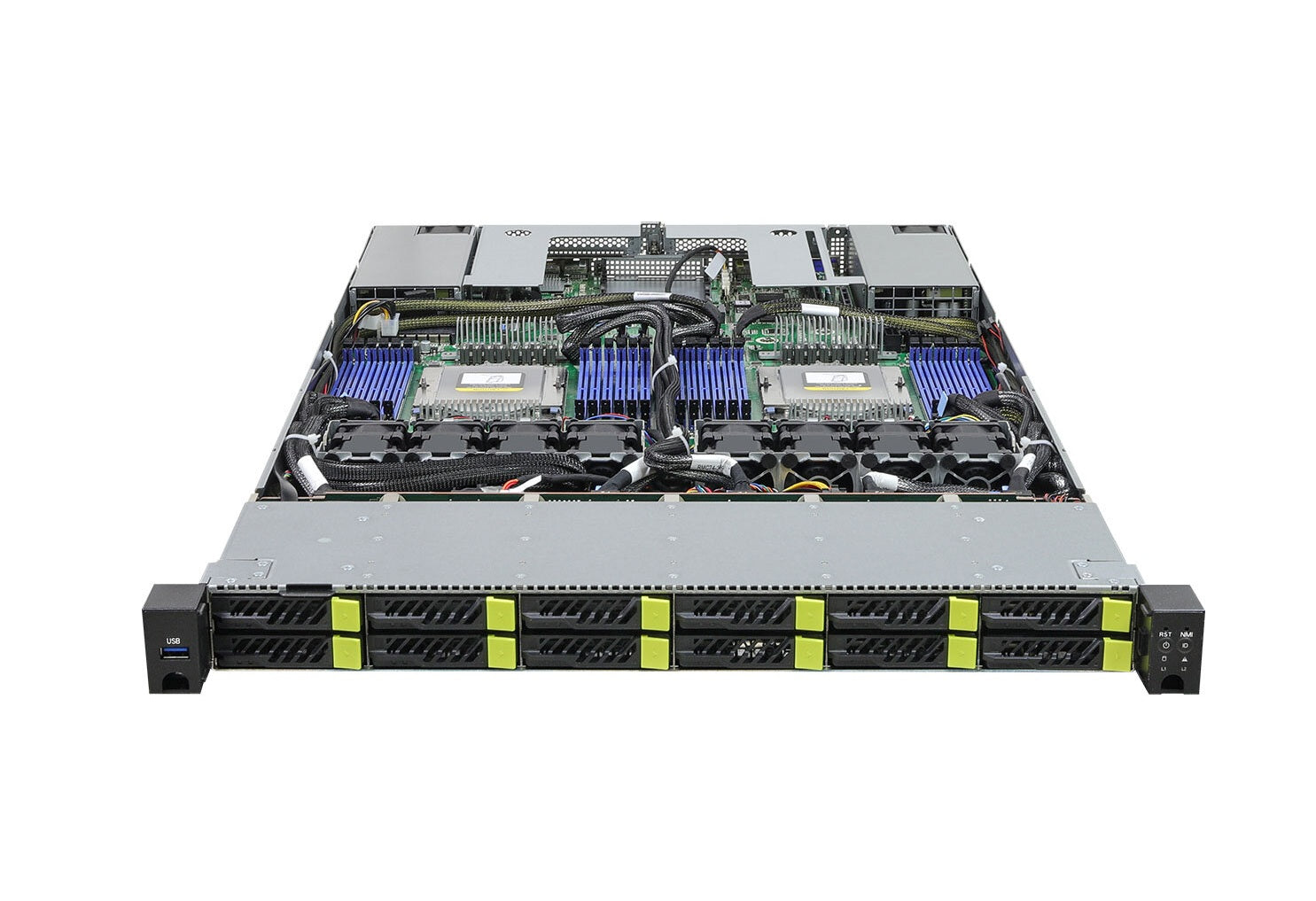

The ASRock Rack 1U12E-GENOA2 is a high-density 1U storage server barebone specifically engineered for AMD EPYC™ 9005 and 9004 series processors. It is distinguished by its unique ability to support 24 DIMM slots in a single-socket configuration, making it ideal for memory-intensive cloud and enterprise workloads.
Specifications
Model Number: 1U12E-GENOA2
Brand: ASRock
Alt Part Number(s): 1U12E-GENOA2
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U12E-GENOA2
Processor Type: AMD EPYC 9004/9005 Series
Processor Socket: Dual SP5 (LGA 6096)
Processor Core: 192-Core/384 Threads
Processor Power: 300W
Chipset Type: System on Chip
Motherboard: GENOA2D24G-2L2T/BCM
Networking: 2 x 10GbE (Broadcom), 2 x 1GbE (Intel), 1 Dedicated IPMI
Drive Bays: 12× hot-swap NVMe (PCIe 5.0) bays
Graphics Controller: ASPEED AST2600 BMC
Memory Capacity: Up to 256GB per DIMM
Memory Supported: 6TB
Memory Technology: DDR5 RDIMM / LRDIMM / 3DS RDIMM
Memory Channels: 24‑Channel
Memory Slots: 24 x DIMM
Expansion Slots: 2 FHHL PCIe 5.0 x16 slots, 1 OCP NIC 3.0 slot
Cooling: 8 PWM hot-swap fans
Power Supply: 1+1 redundant 1000W Slim PSUs 80- Platinum
Form Factor: 1U Rackmount
