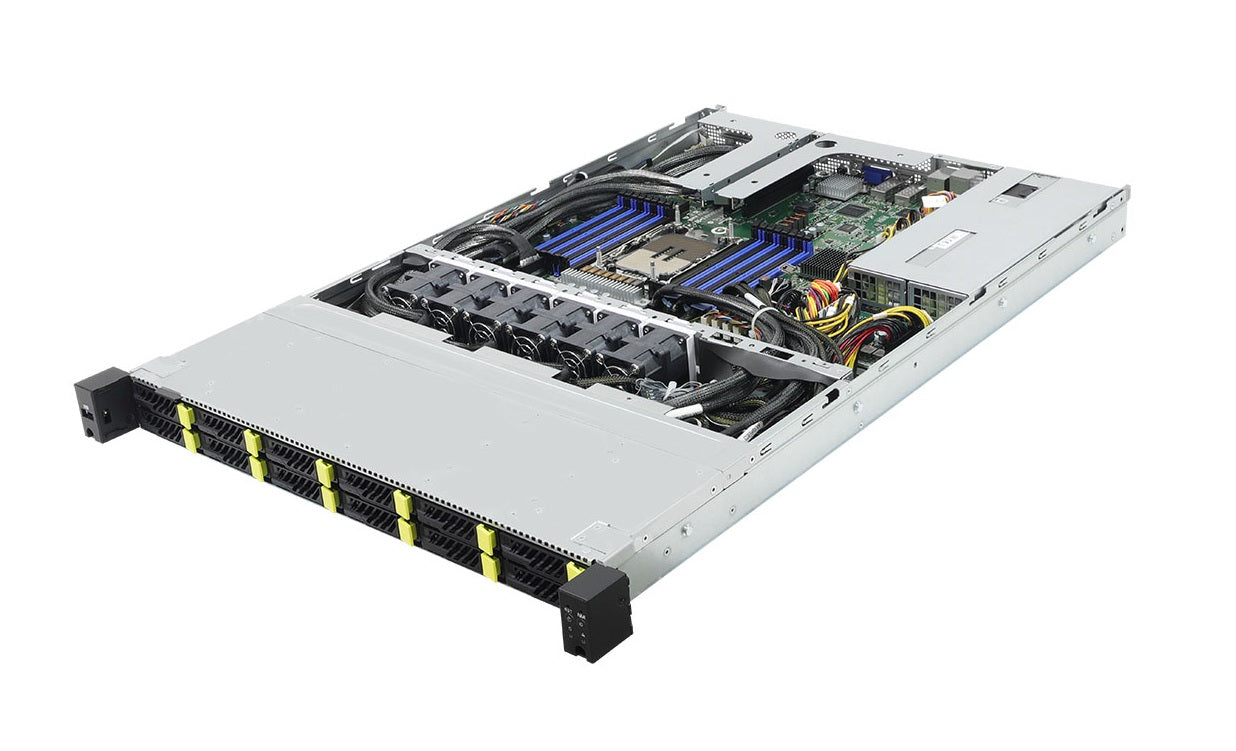

The ASRock Rack 1U12E-EGS/2L2Q is a high-density 1U rackmount storage server barebone designed for 4th and 5th Gen Intel Xeon Scalable processors. It is optimized for NVMe-heavy workloads and high-speed networking in data centres
Specifications
Model Number: 1U12E-EGS/2L2Q
Brand: ASRock
Alt Part Number(s): 1U12E-EGS/2L2Q
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U12E-EGS/2L2Q
Processor Type: 5th and 4th Gen Intel Xeon Scalable Processors
Processor Core: 64 Core/128 Thread
Processor Power: 150W - 350W CPU
Processor Socket: Single Socket E (LGA 4677)
Motherboard: SPC741D16QM3-2L2Q
Chipset Type: Intel C741
Graphics Controller: ASPEED AST2600
Networking: 5 physical Ethernet ports (2×25 GbE + 2×1 GbE + 1×IPMI)
Number of Drive Bays: 12 hot‑swap 2.5″ bays (plus internal M.2 slots)
Expansion Slots: 2 external (1 FHHL PCIe + 1 OCP NIC 3.0)
Memory Supported: Up to 4TB
Memory Technology: DDR5
Memory Speed: 5600 MT/s, 4800 MT/s
Memory Slots: 16 DIMM slots
Power Supply: 1000W 1+1 Slim PSU 80-PLUS Platinum
System Cooling: 6 PWM Hot-swap 40x56 mm fans
Form Factor: 1U Rackmount
