Description

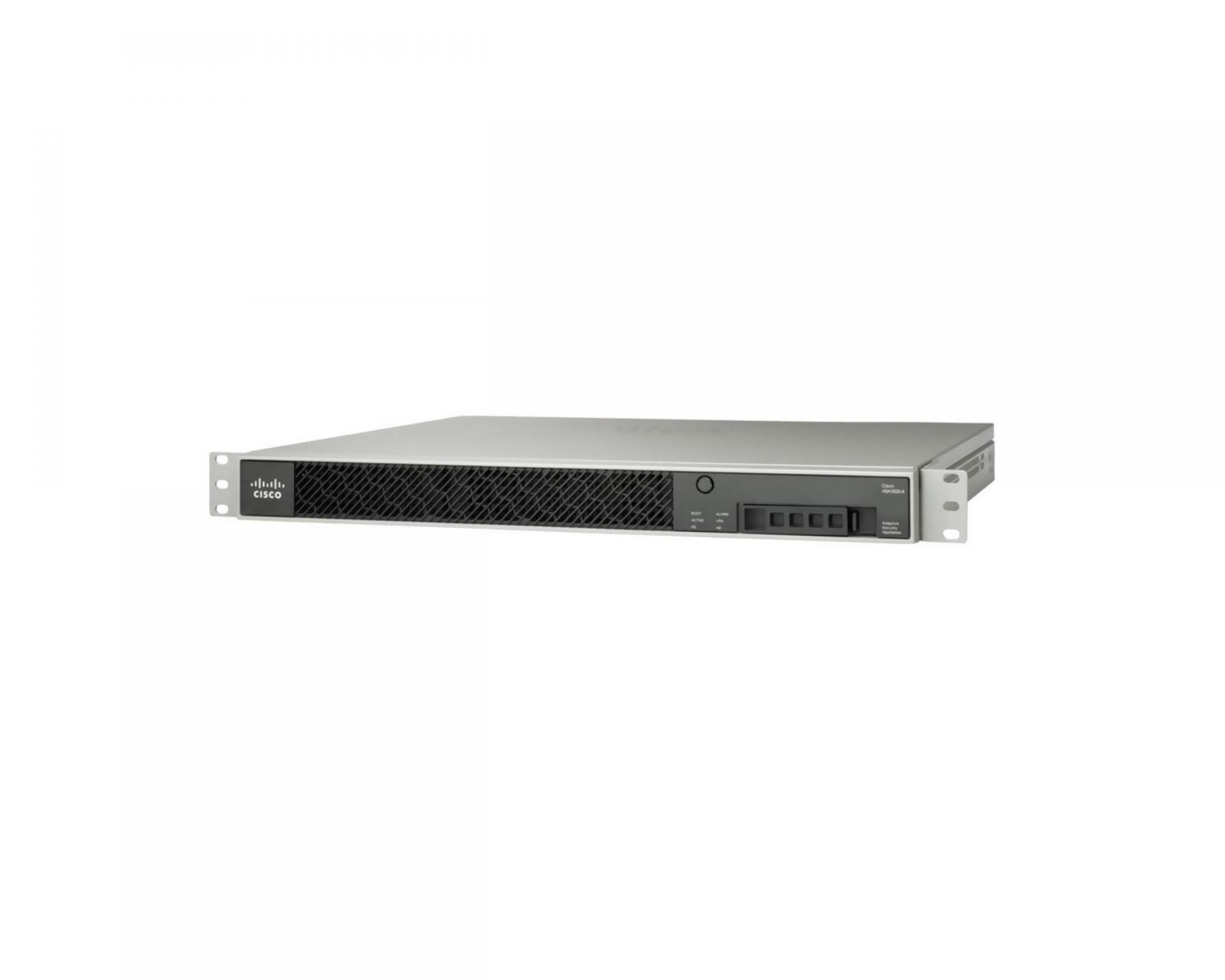

The ASA5512-X is a robust and secure next-generation firewall from Cisco, designed to safeguard midsize enterprise networks with advanced intrusion prevention, high-speed throughput, and scalable performance. This 1U rack-mountable firewall is well-suited for branch offices and small data centers that demand security without sacrificing speed.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
ASA5512-X
|
| Subcatecory |
|
| Form Factor |
1U Rack-Mountable |
| Firewall Throughput |
1 Gbps |
| VPN Throughput |
200 Mbps |
IPS/IDS Throughput
|
250 Mbps |
| Concurrent Connections |
115,000 |
| Connections/sec |
3,000 |
| Heat Dissipation |
192 BTU/hr |
| AC Input Voltage |
100–240 V |
| AC Input Frequency |
50–60 Hz |
| Input Current |
4.85 A |
| Weight |
13.39 lb (6.07 kg)
|
Information About ASA5512-X
The ASA5512-X is part of the Cisco ASA 5500-X Series, providing next-generation firewall capabilities in a compact and efficient 1U form factor. It supports up to 115,000 concurrent connections, with a maximum stateful throughput of 1 Gbps, making it highly effective for medium-sized enterprise environments. This firewall offers advanced threat protection, application control, VPN support, and intrusion prevention (IPS) functionality. With a rack-mountable chassis, dual AC power compatibility, and solid thermal efficiency (192 BTU/h), it ensures operational continuity and scalability in dynamic IT infrastructures.
Key Features:
-
High Throughput: Up to 1 Gbps stateful firewall throughput, 250 Mbps IPS throughput, and 200 Mbps VPN throughput
-
Concurrent Connections: Supports up to 115,000 simultaneous connections
-
Connections per Second: Handles up to 3,000 new connections per second
-
Form Factor: 1U rack-mountable metal chassis suitable for enterprise installations
-
Power Efficiency: Operates on a 100–240V AC power supply with an input frequency of 50–60 Hz and 4.85 A current
-
Thermal Performance: Heat dissipation rated at 192 BTU/hr for effective cooling
-
Security Functions: Next-gen firewall with IPS/IDS, VPN, application control, and deep packet inspection
The ASA5512-X is an efficient and secure solution for organizations seeking dependable firewall protection with strong throughput capabilities and advanced threat management.
