[shortdesc]
- APC Rack PDU, Basic, Zero U, 20A, 208V, 20 C13 & 4 C19 outlets, NEMA L6-20P, Vertical mount.
[/shortdesc]
[specifications] [/specifications]

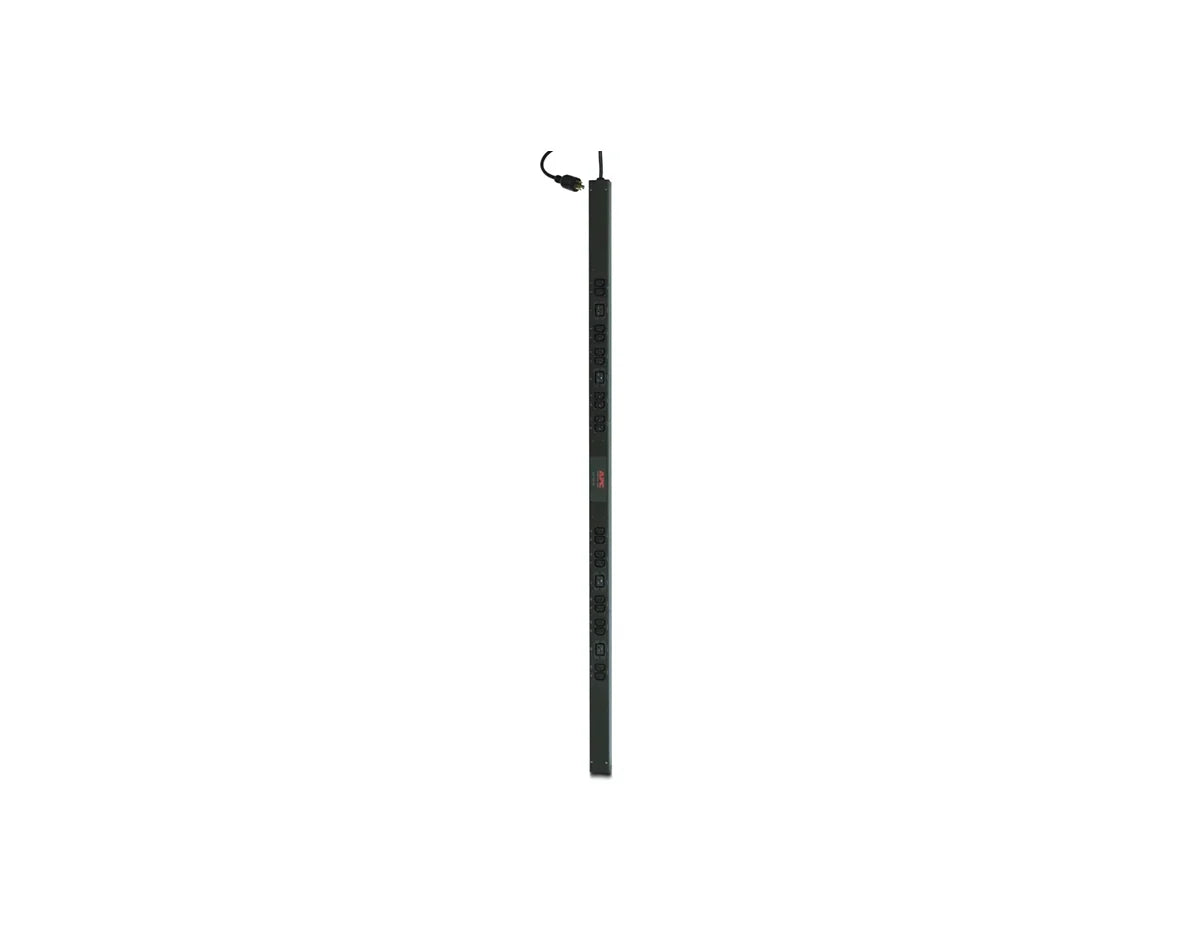

APC Rack PDU, Basic, Zero U, 20A, 208V, 20x C13 & 4x C19 Outlets, Vertical Mount (AP7540)
The APC AP7540 is a Basic Zero U Power Distribution Unit (PDU) designed for efficient power distribution in rack-mounted IT environments. It supports 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexible power delivery for a wide range of connected equipment. The unit operates at an input voltage of 208V with a load capacity of 3300 VA.
This vertical rack-mount PDU features a NEMA L6-20P input plug with a 10-ft (3.05m) power cord and supports input frequencies of 50/60 Hz. It comes with rack-mounting brackets, tool-less installation kit, and installation guide for easy setup. The durable black design ensures seamless integration with rack systems.
Certified for UL, CSA, and cUL compliance, the AP7540 operates in a temperature range of 32°F to 113°F (0°C to 45°C), making it suitable for data centers and enterprise IT setups.
Key Features:
-
Outlet Configuration: 20 IEC 60320 C13 and 4 IEC 60320 C19 outlets for flexible power distribution.
-
Input Plug: NEMA L6-20P with a 10-ft (3.05m) power cord.
-
Load Capacity: 3300 VA at 208V input voltage.
-
Mounting Mode: Zero U vertical rack-mount for efficient space utilization.
-
Installation: Comes with rack-mounting brackets and tool-less mounting kit.
-
Compliance: UL, CSA, and cUL certified for safety and performance.
-
Environmental Tolerance: Operating temperature between 32°F and 113°F (0°C to 45°C).
Why Choose the APC AP7540?
The APC AP7540 provides efficient, high-capacity power distribution for enterprise IT systems. Its Zero U vertical design, easy installation, and certified safety compliance make it an essential addition to data center power infrastructure.
