Overview

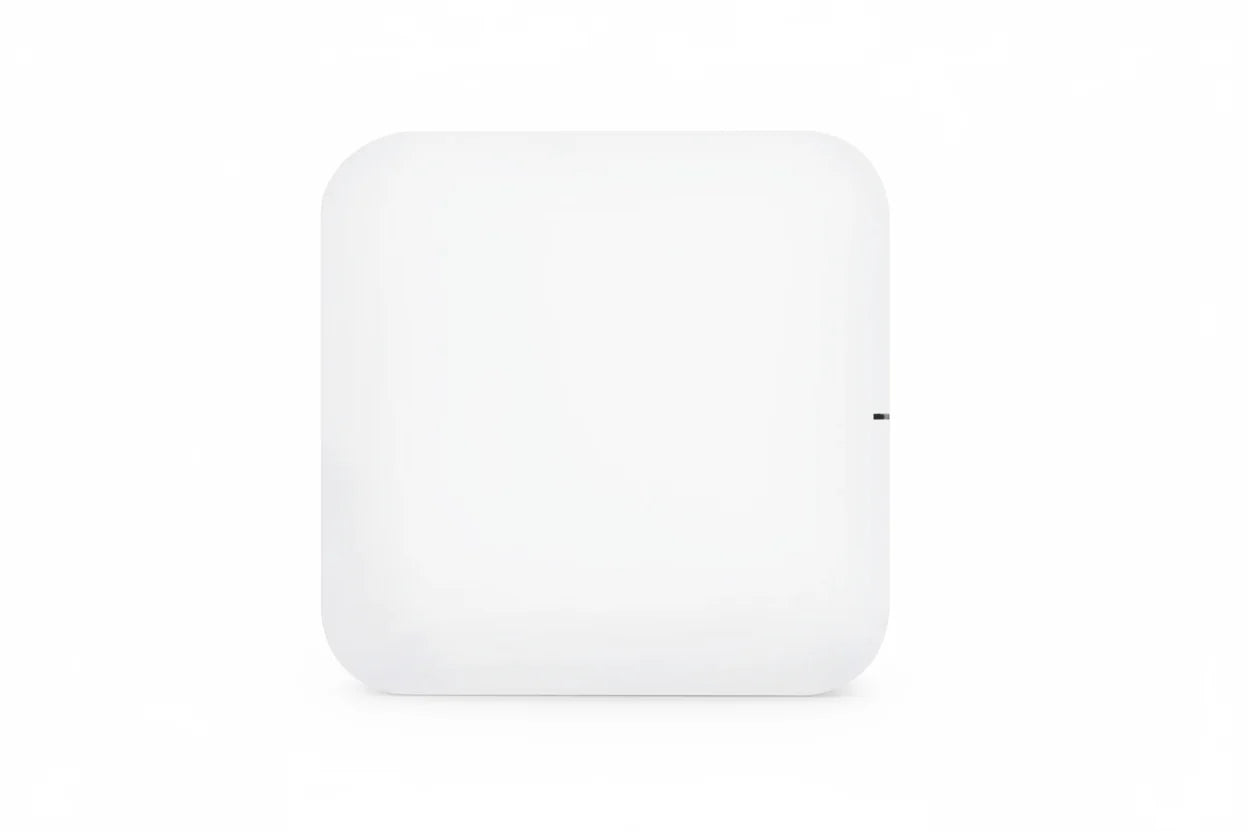

The AP-N716 is an indoor access point utilizing the Wi-Fi 7 802.11be standard. It features a tri-radio design with 2x2:2 MU-MIMO configuration across the 2.4 GHz, 5 GHz, and 6 GHz bands. Designed for enterprise and campus environments, this device provides a total aggregate data rate of 9300 Mbps and is managed through the AmpCon-Campus platform.
Key Features
-
Tri-Band Operation: Supports concurrent transmission across 2.4 GHz, 5 GHz, and 6 GHz spectrums, allowing for efficient traffic distribution across available wireless bands.
-
Wi-Fi 7 Technology: Utilizes 802.11be standards and an ultra-wide 320 MHz bandwidth to support high-throughput data demands for bandwidth-intensive applications such as AR/VR and high-definition video conferencing.
-
MU-MIMO Support: Employs 2x2 MU-MIMO across its three radios to manage multiple simultaneous device connections, facilitating concurrent data streams.
-
Advanced Security Protocols: Integrates WPA3-Enterprise, OWE (Opportunistic Wireless Encryption), and MPSK for robust authentication and data protection in multi-user network environments.
-

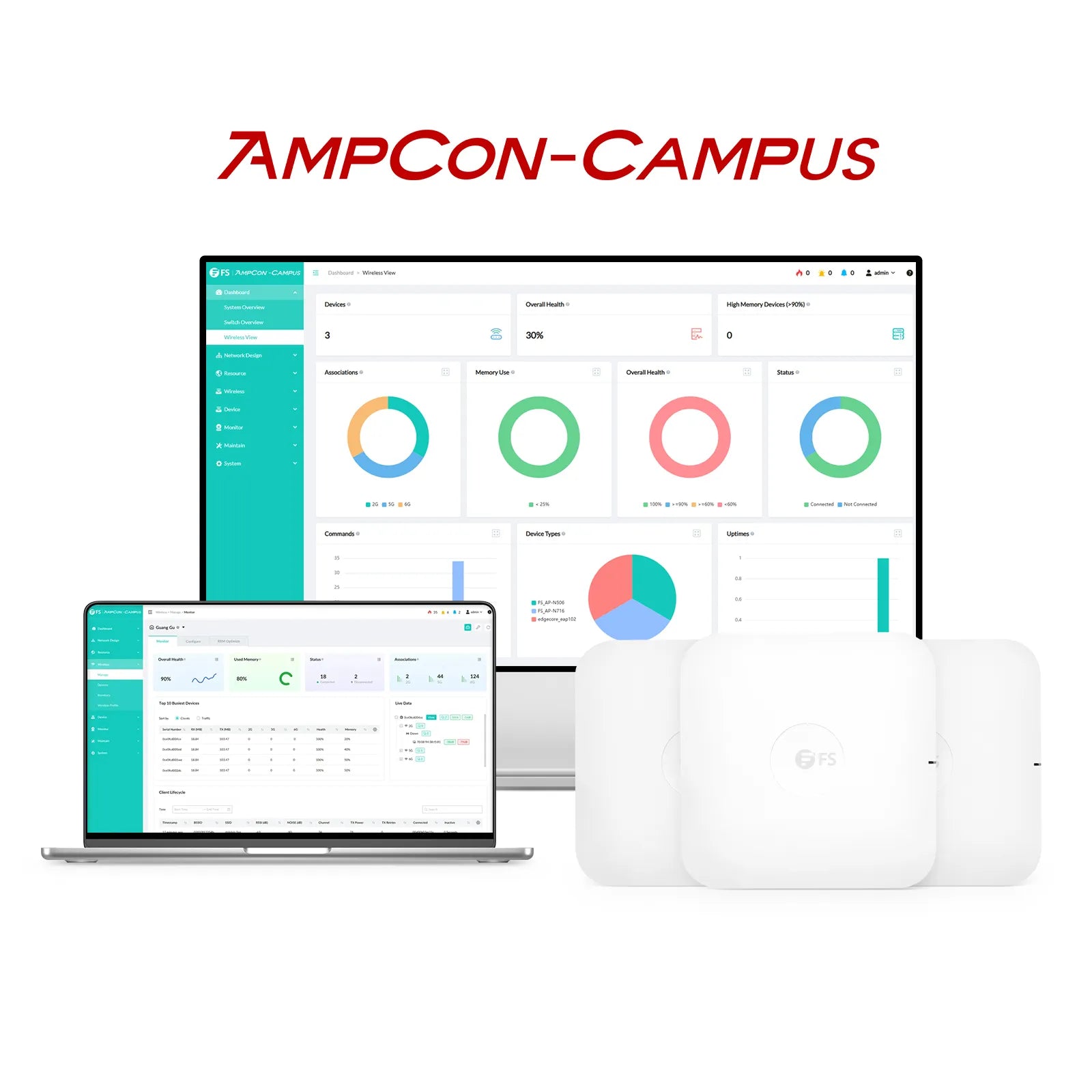

Centralized Management: Compatible with the AmpCon-Campus management platform, which allows for license-free device onboarding and unified network configuration.
Technical Specifications
| Feature |
Specification |
| Wireless Standard |
Wi-Fi 7 (802.11be) |
| Total Aggregate Rate |
9300 Mbps |
| Radio Configuration |
Tri-radio (2.4 GHz, 5 GHz, 6 GHz) |
| MIMO Configuration |
2x2:2 MU-MIMO |
| Channel Bandwidth |
Up to 320 MHz |
| Management System |
AmpCon-Campus |
| Operating System |
PicOS |
| Security |
WPA3-Enterprise, OWE, MPSK |
| VLAN Support |
4000+ VLANs |
