Description

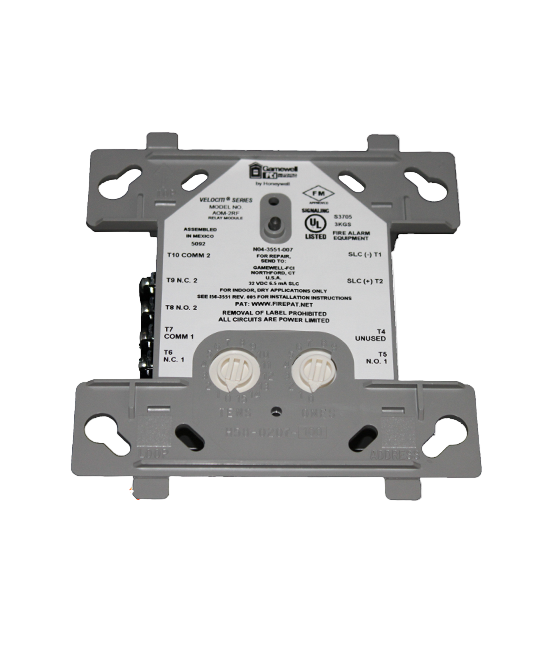

The Gamewell AOM-2RF-BP is a 10-pack of analog addressable relay modules from the Velociti® Series, designed for use with Gamewell-FCI fire alarm control panels. Each module provides two isolated sets of Form-C contacts for reliable switching of discrete circuits by coded panel commands.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Gamewell-FCI |
| Category |
Flame Safety Products |
| Part Number |
AOM-2RF-BP |
| Subcategory |
Relay Module |
| Quantity |
Pack of 10 units |
| Module Type |
Addressable Relay Module |
| Contact Type |
Two sets of Form-C contacts (simultaneous transfer) |
| Addressing |
Rotary decimal switch (01–159) |
| Indicators |
Bi-color LED (green = polling, red = alarm) |
| Operating Voltage |
15–32 VDC |
| Supervisory Current |
0.000375 A |
| Alarm Current |
0.0065 A |
| Operating Temp |
32°F to 120°F (0°C to 49°C) |
| Humidity Range |
10–93% non-condensing |
| Mounting |
4" square junction box, 2 1/8” deep |
| Protocol |
Velociti® Series high-speed communication |
| Circuit Supervision |
Relay contacts not supervised |
| Applications |
Switching of external circuits by fire alarm control |
| Weight (per unit) |
0.25 lbs (approx.) |
| Total Weight (10-pack) |
2.5 lbs (approx.) |
Information About AOM-2RF-BP
The AOM-2RF-BP is part of Gamewell’s Velociti® Series, which utilizes a high-speed communication protocol for faster response between modules and control panels. Each relay module supports two sets of Form-C contacts that operate simultaneously, with panel-controlled LED indicators for status monitoring. Designed for easy installation, the AOM-2RF mounts in a standard 4-inch square junction box and allows rotary switch addressing from 01 to 159. This bulk pack of 10 modules is well-suited for large-scale fire alarm installations requiring multiple relay outputs.
Key Features:
- Dual Form-C Contacts: Provides two isolated sets of contacts for versatile circuit control.
- High-Speed Protocol: Velociti® Series communication increases system response time.
- Panel-Controlled LED: Flashes green during polling, steady red in alarm condition.
- Rotary Addressing: Decimal switches support addressing from 01 to 159.
- Compact Design: Fits easily into a 4" square junction box (2 1/8” deep).
- Low Current Draw: Supervisory current of only 0.000375 A.
- Wide Environmental Range: Operates from 32°F to 120°F with up to 93% RH.
- Bulk Packaging: Supplied as a 10-pack for cost-efficient multi-point installations.
The AOM-2RF-BP delivers the reliability and speed required for scalable fire alarm relay control.
