Description

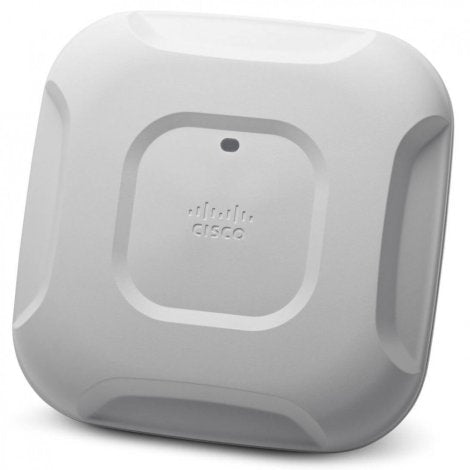

The Cisco AIR-CAP3702I-A-K9 is a high-performance dual-band wireless access point from the Aironet 3700 Series, designed for enterprise-grade 802.11ac Wave 1 deployments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
AIR-CAP3702I-A-K9 |
| Subcategory |
|
| Interface Ports |
1x 1 Gigabit Ethernet RJ-45 |
| MIMO Streams |
4x4 |
| Frequency Band |
2.4 GHz, 5 GHz |
| Maximum Data Rate |
1.3 Gbps |
| Antenna Type |
Internal omnidirectional antennas |
| Power over Ethernet (PoE) |
Yes |
| Power Consumption |
15.4W (PoE), 16.5W (Cisco PoE) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% noncondensing |
| Dimensions (W x D x H) |
8.7 x 8.7 x 2.1 in. (22.1 x 22.1 x 5.3 cm)
|
| Weight |
1.4 kgs |
Information About AIR-CAP3702I-A-K9
The Cisco AIR-CAP3702I-A-K9 is an enterprise-class wireless access point from the Aironet 3700 Series, built to deliver robust performance in high-density indoor environments. Featuring 802.11ac Wave 1 technology, it offers high throughput, improved coverage, and flexible deployment options for business-critical wireless networks. With support for Cisco’s modular architecture, the AP can adapt to evolving wireless demands and technologies.
Key Features:
-
Product Type: Dual-band 802.11ac Wireless Access Point
-
Wireless Standards: IEEE 802.11ac Wave 1, 802.11n, 802.11a/b/g
-
Max Data Rate:
-
Antenna Type: Internal antennas (integrated)
-
Modularity: Modular architecture supports add-ons like the Cisco Wireless Security Module
-
ClientLink 3.0: Enhances performance for all clients, including those with legacy 802.11a/b/g radios
-
CleanAir Technology: Helps detect and mitigate RF interference
-
Controller-Based Deployment: Requires a Cisco wireless LAN controller (WLC)
-
PoE Support: IEEE 802.3af/at compliant; can be powered over Ethernet
-
Ports: 1x 10/100/1000 Ethernet (RJ-45)
-
Operating Frequency: 2.4 GHz and 5 GHz simultaneous dual-band
-
Regulatory Domain: -A indicates compliance with FCC for use in the United States
The AIR-CAP3702I-A-K9 is a reliable, high-performance solution for organizations requiring secure, scalable, and high-speed wireless connectivity, with intelligent RF management and support for future expansion through Cisco’s modular design.
