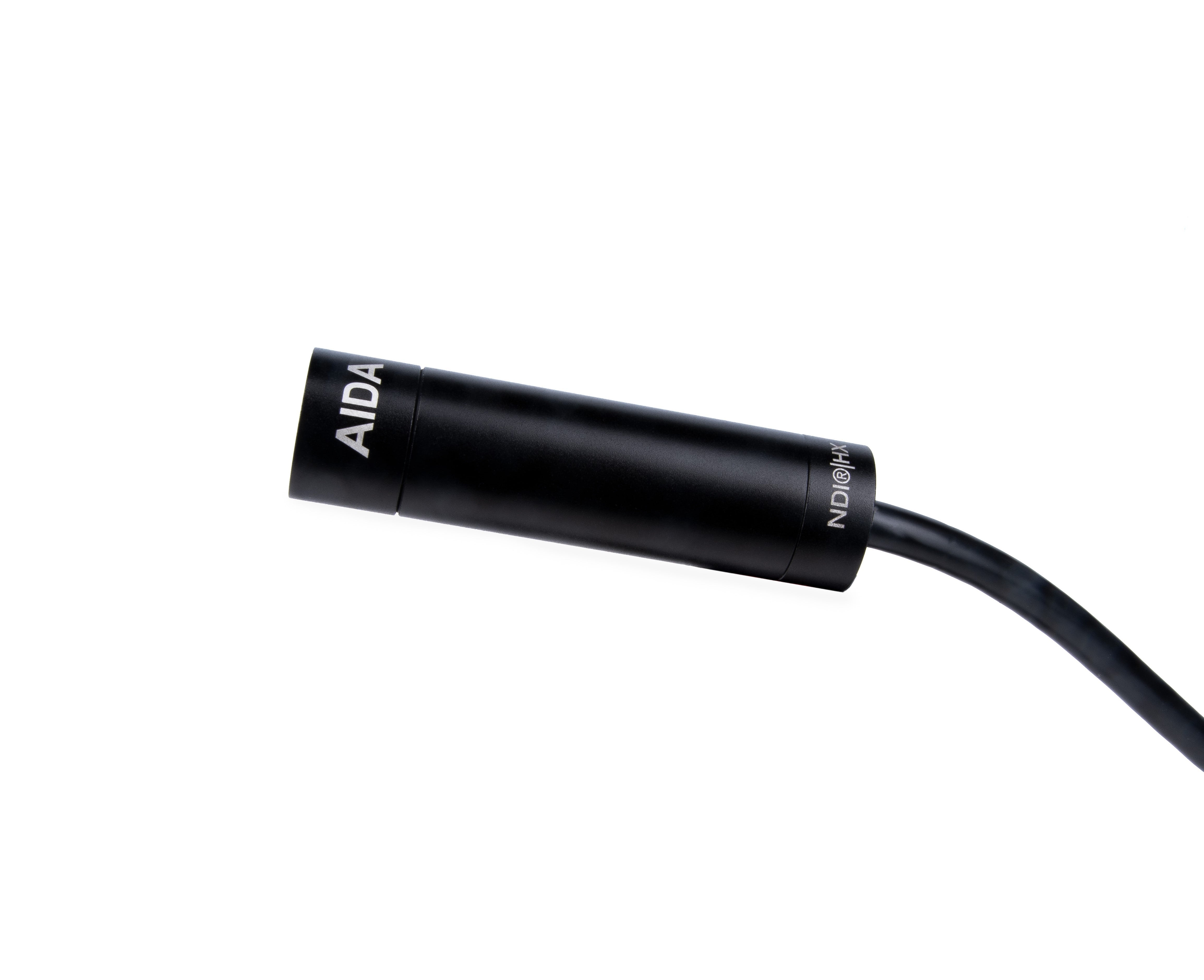

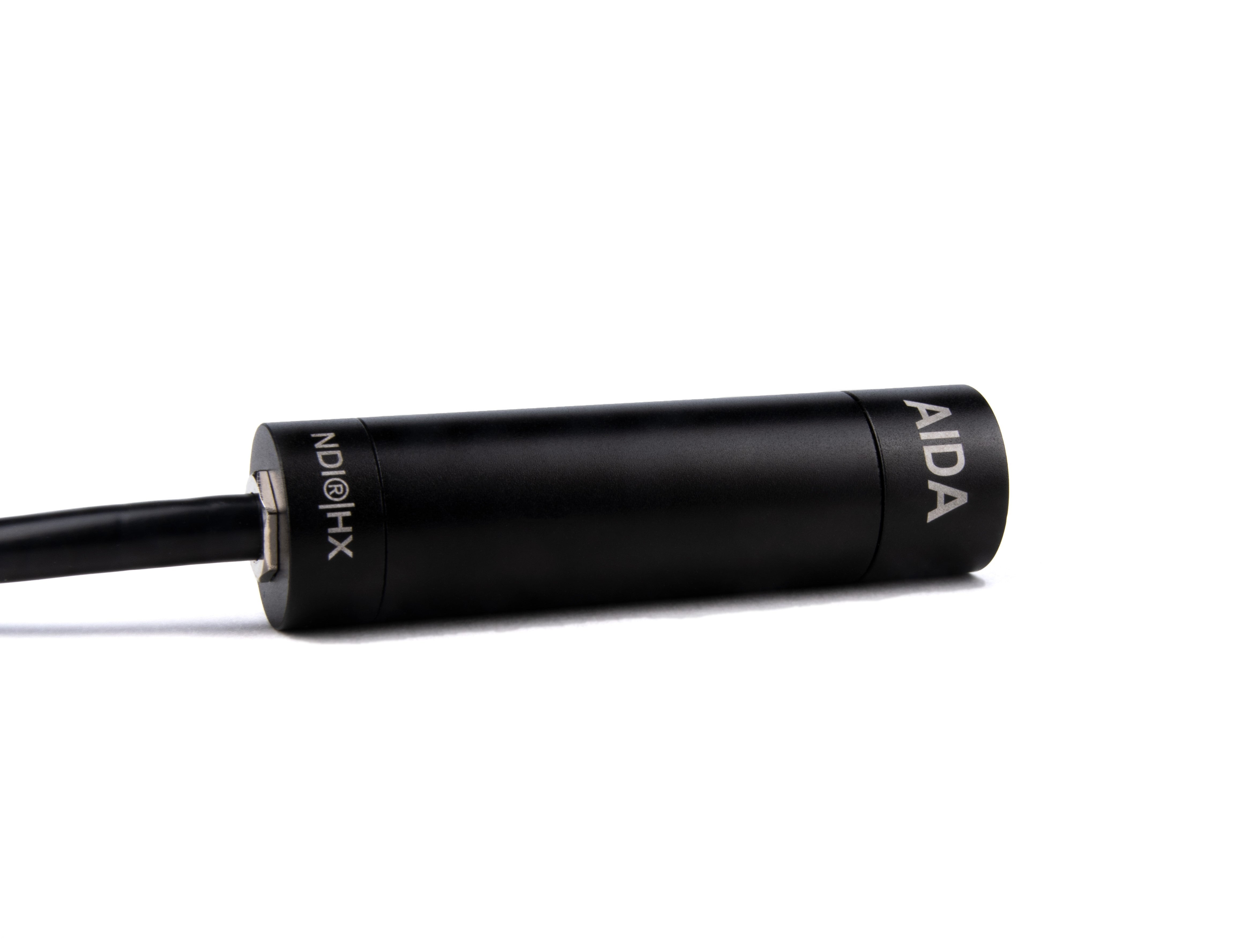

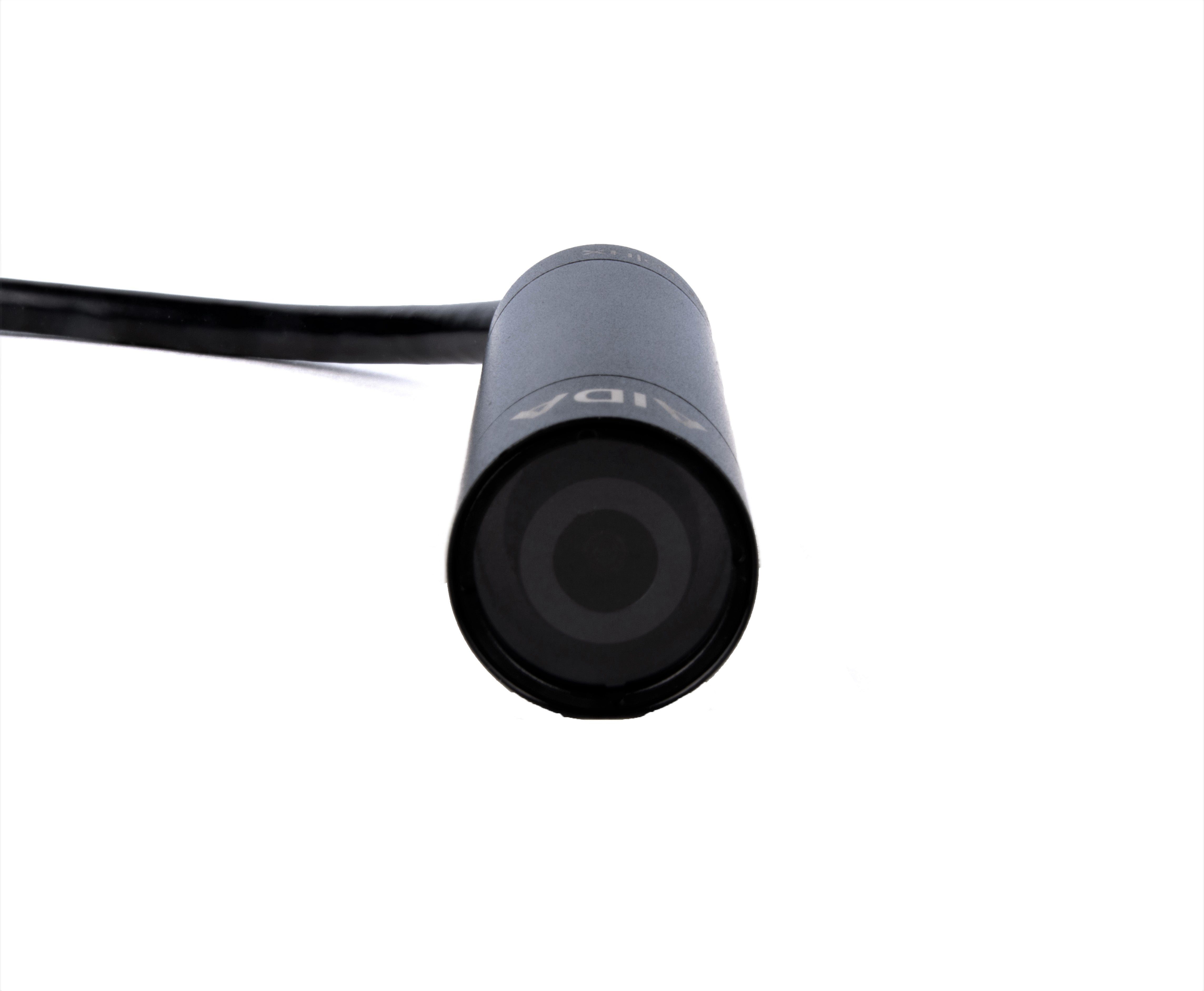

The most discreet NDI|HX camera has to be the AIDA Imaging Full HD NDI®|HX / IP Weatherproof Cylinder POV Camera. With its weatherproof barrel design, the HDNDI-MINI is protected where it is stashed. From the highs of rafters to the inside of pylons, the HD-NDI-MINI is the ultimate addition to any NDI workflow.
It's a lipstick-style camera that features IP and NDI|HX output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The camera features an M12 lens mount and a wide 4mm M12 lens is included.
FEATURES:
- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP
- The compact design used for discreet, hard-to-reach POV shots unobtainable by larger cameras
- M12 type lens for an even smaller form factor
- The weatherproof rating allows for extra protection against environmental elements
- Barrel design for better weatherproofing and fitment
- Perfectly suited for outdoor shots any new or existing NDI®|HX setup
SPECIFICATIONS:
Video
| Image Sensor |
1/3” Progressive CMOS |
Sensor Size
|
5.346mm x 3.003mm (16.9) |
Effective Pixels
|
Horizontal: 1920, Vertical: 1080 |
| Pixel Size |
2.75 μm (H) x 2.75 μm (V) |
| Resolution |
1080p, 1080i, 720p |
Resolution Rate
|
1080 60p/59.94/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
|
Output
|
IP (NDI|HX/SRT/RTMP/RTSP) |
| Color Space |
4:2:2 (YCbCr) 10bit |
| Min Illumination |
0.2Lux (day), 0.1Lux (Night) |
White Balance
|
Auto & Manual (9000 - 11,000 K) |
Lens
| Lens |
M12 (Default 4mm HD Lens with WP CAP) |
Standard
| IP Protocol |
UDP|IP, RTSP|RTMP, SRT, NDI|HX |
Physical
| Camera Control Protocol |
VISCA Over IP |
| Operation Temp |
32 °F - 104 °F |
| Dimension |
90mm x 24mm / 3.5” x 0.94” (with default WP cap) |
| Weight |
180g / 0.39lbs (with default WP cap) |
| Power |
12VDC (+9 - +15VDC) (PoE Adapter Included) |
WHAT'S INSIDE:

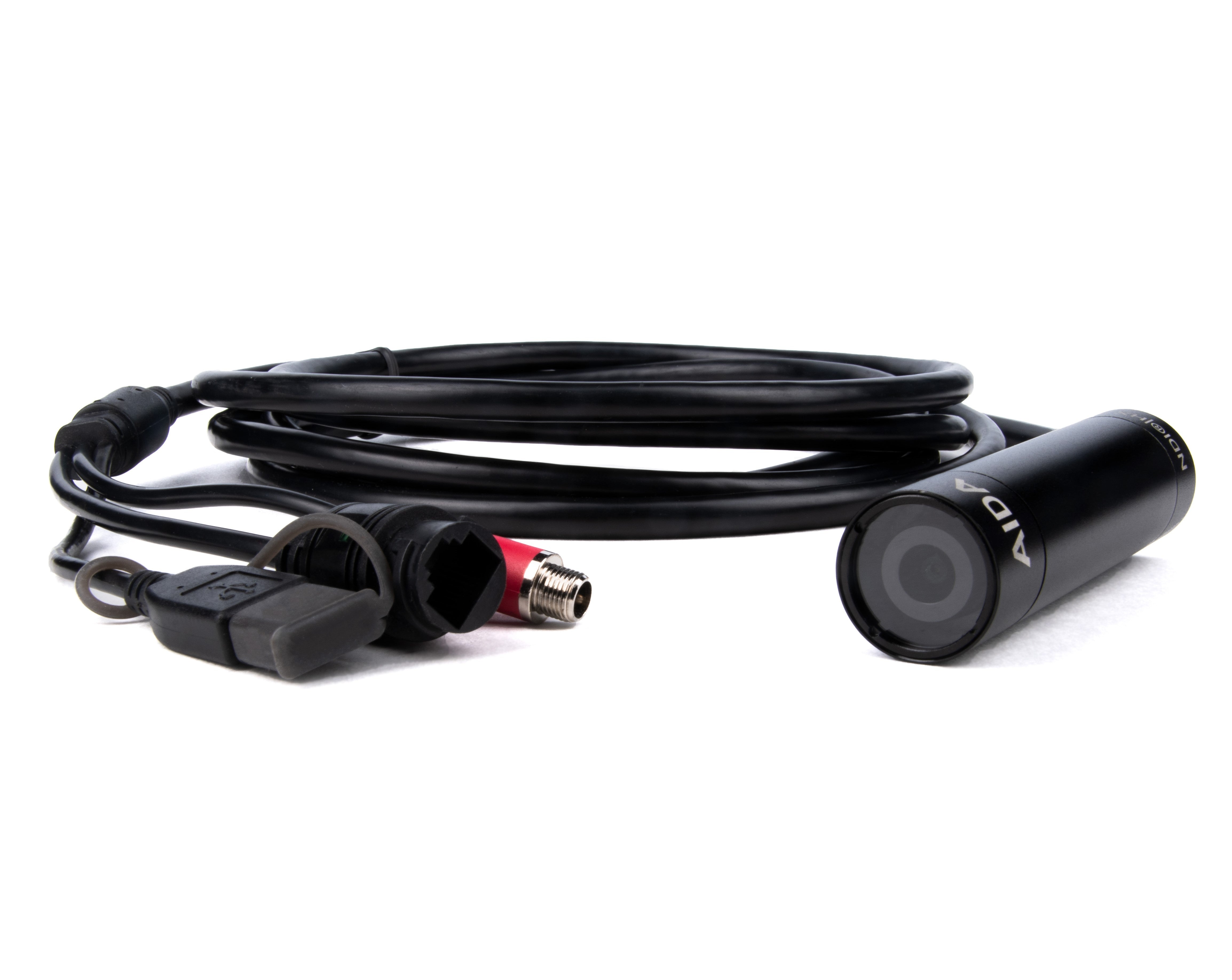

- AIDA Imaging Full HD NDI HX IP Weatherproof Cylinder POV Camera
- PoE Dongle Adapter
- 12 VDC Power Supply with Plug Adapter Kit
- 4mm M12 Lens
- M12 Cap
- Limited 2-Year Warranty
