The FSM-18S Fusion Splicer is a low cost, fixed V-groove, single fiber fusion splicer with the same robust features offered in other high end models. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and withstands a 30 drop test.

New features such as automatic tube heater operation, user-selectable clamping method (sheath clamp or fiber holder system), automated monitor image orientation, and battery charge capability during splicer operation provide the end user a reliable productivity tool. New software is included with each splicer and provides the user with the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.

Features:

• Rugged construction providing shock, dust and moisture resistance
• Dual monitor position with automatic image orientation
• Automatic arc calibration
• User-selectable fiber clamping method sheath clamp or fiber holders
• Auto-start tube heater
• Color LCD display and anti-reflective coating for excellent visibility in bright sunlight
• Simultaneous battery charge and splicer operation
• Long life battery (up to 150 splice/heat cycles per charge)
• Detachable work table incorporated into the transit case
• Data and video download software and splicer upgrade software included; software upgrades through PC application via the internet
• Green friendly RoHS & WEEE compliant

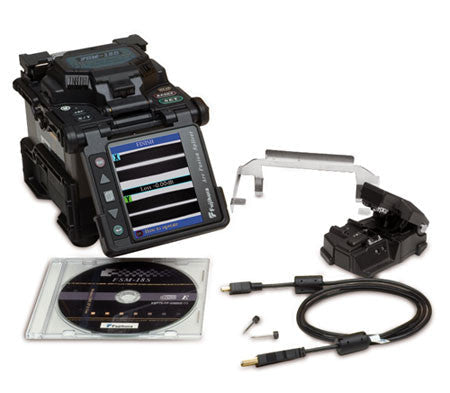

This Kit Includes:

• AFL CT-30A High Precision Fiber Cleaver
• BTR-08 Battery
• DCC-14 Charge Cord
• FSM-18S Fusion Splicer Machine
• ADC-13 AC Adapter
• ACC-14 AC Cord
• Spare Electrodes (pair)
• Sheath Clamp
• USB Cable
• Splicer Carrying Strap
• Quick Reference Guide
• Video Instruction Manual
• JP-05 Splice Sleeve Cooling Tray
• Transit Case with Carrying Strap
• 1 Year Warranty

Download Product Spec Sheet:

AFL FSM-18S Cladding Alignment Fusion Splicer Spec Sheet (PDF)
