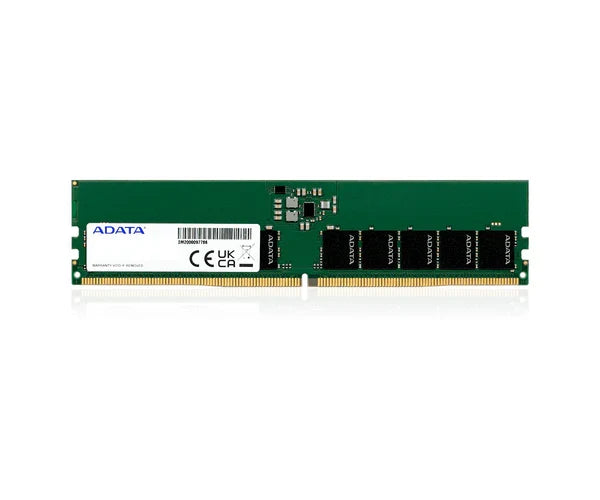

ADATA AD5E560016G10-BHYA DDR5 Memory Module series features 16GB DDR5 SDRAM capacity, 5600 MHz speed, PC5-44800 standard, 1.10V operating voltage, 288-pin DIMM form factor, unbuffered ECC U-DIMM design, and on-die ECC error checking. This JEDEC-compliant memory module supports DDR5 interface technology with 5600 MT/s frequency, RoHS compliance, and operating temperatures from 0ºC to 85ºC standard and -40ºC to 95ºC industrial.
Specifications
Model Number: AD5E560016G10-BHYA
Brand: ADATA
Alt Part Number(s): AD5E560016G10-BHYA
Product Type: Memory Module
Technical Description
Brand: ADATA
Model: AD5E560016G10-BHYA
Memory Size: 16GB
Memory Technology: DDR5 SDRAM
Memory Voltage: 1.10 V
Memory Speed: 5600 MHz
Memory Standard: DDR5-5600/PC5-44800
Error Checking: On-die ECC
Signal Processing: Unbuffered
Number of Pins: 288-pin
Form Factor: DIMM
Interface: DDR5
Module Type: ECC U-DIMM
Frequency: 5600 MT/s
Capacity: 16GB
Pin Count: 288 Pin
PCB Height: 1.23 inches/3.12cm
Operating Voltage: 1.1V
Operating Temperature(Standard): 0ºC to 85ºC
Operating Temperature(Industrial): -40ºC to 95ºC
Standard: JEDEC
RoHS: Yes
