Description

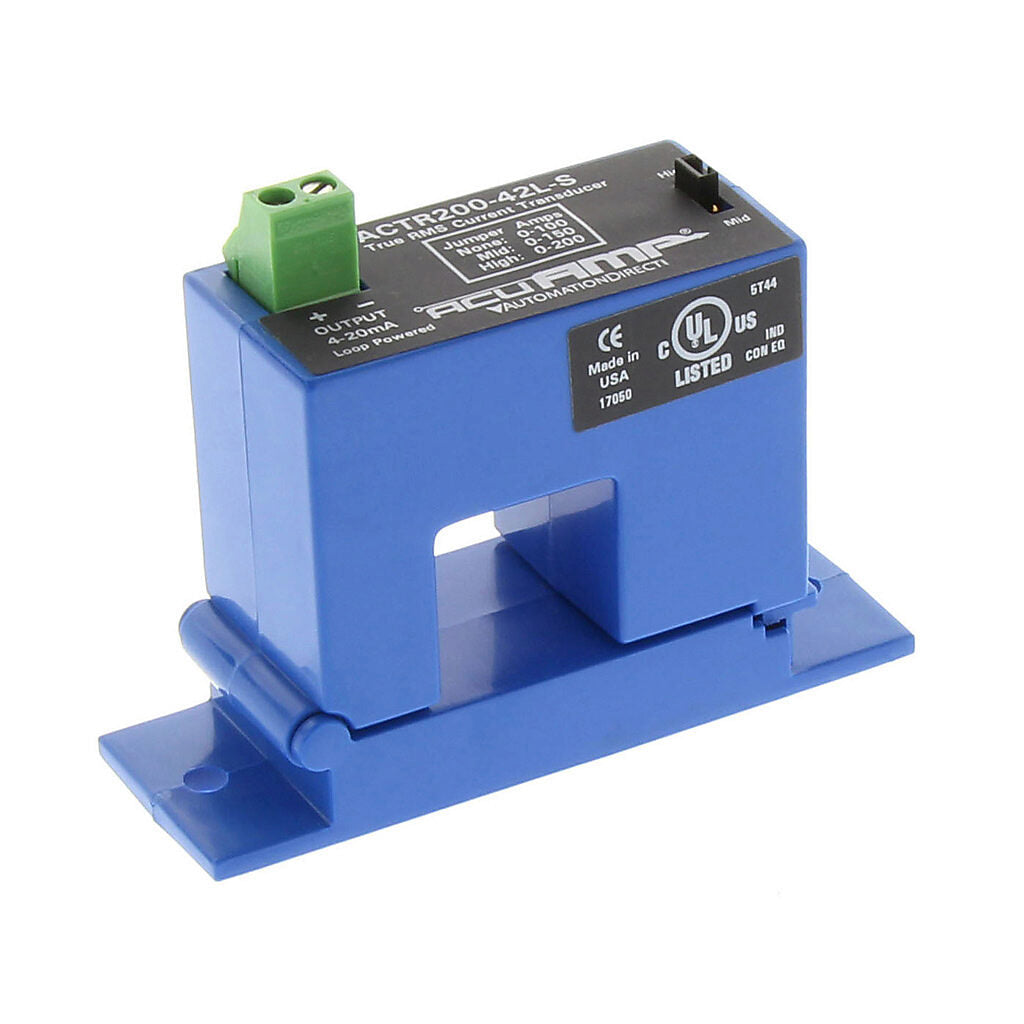

The AcuAMP ACTR200-42L-S is a single-phase AC current transducer designed for accurate current monitoring in industrial power systems. It features a split-core design with selectable sensing ranges of 0–100 A, 0–150 A, or 0–200 A and provides a True RMS 4–20 mA output signal. The unit operates from 24 VDC and is suitable for integration into control panels and energy monitoring applications.

Technical Specifications

Information About ACTR200-42L-S

The ACTR200-42L-S is part of the AcuAMP current sensing product line developed for industrial measurement and control systems. It utilizes a split-core housing that allows installation without disconnecting existing conductors, simplifying retrofit and maintenance tasks. The transducer measures AC current using True RMS technology, ensuring accurate readings even with non-linear loads. Designed for panel or DIN rail mounting, it connects via screw terminals and is UL 508 listed for use in industrial control equipment.

Key Features:

• Split-Core Design: Allows installation without removing or disconnecting conductors.

• Selectable Input Ranges: Jumper-configurable for 0–100 A, 0–150 A, or 0–200 A sensing.

• True RMS Measurement: Provides accurate current readings for distorted or non-linear waveforms.

• 4–20 mA Output: Industry-standard analog output for PLC and control system integration.

• 24 VDC Operation: Compatible with common industrial control power supplies.

• Single-Phase Monitoring: Designed specifically for AC single-phase applications.

• Flexible Mounting Options: Supports panel mounting or optional 35 mm DIN rail installation.

• UL 508 Listed: Certified for industrial control panel applications.

The ACTR200-42L-S delivers the reliability and precision required for industrial current monitoring and energy management systems.
