Description

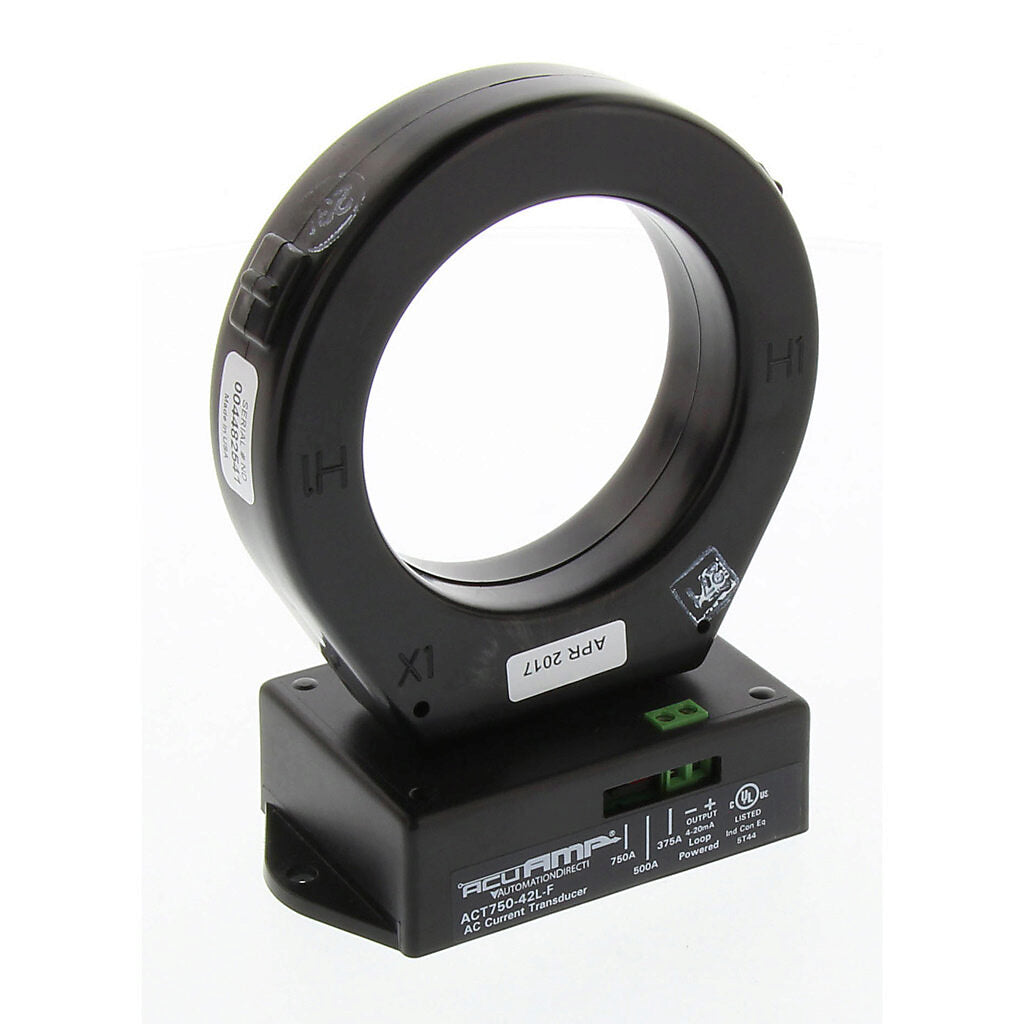

The Automation Direct ACT750-42L-F is an AcuAMP fixed-core AC current transducer designed for monitoring high-current single-phase circuits. It offers selectable sensing ranges of 0–375A, 0–500A, or 0–750A and provides a proportional 4–20 mA output signal for integration with control systems. Powered by 24 VDC, this transducer is suited for industrial load monitoring and current measurement applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Sensors |
| Part Number |
ACT750-42L-F |
| Subcategory |
Current Transducers |
| Series |
AcuAMP |
| Measurement Type |
AC current |
| Number of Phases |
1 |
| Body Type |
Fixed core |
| Selectable Sensing Ranges |
0–375A, 0–500A, or 0–750A |
| Output Signal |
4–20 mA |
| True RMS |
No |
| Operating Voltage |
24 VDC |
| Mounting Options |
Panel or optional 35 mm DIN rail |
| Electrical Connection |
Screw terminals |
| UL Rating |
UL 508 listed |
| Application |
Industrial load and current monitoring |
| Weight |
0.9 lb |
Information About ACT750-42L-F
The ACT750-42L-F is part of the AcuAMP series of industrial current transducers engineered for accurate AC current sensing in electrical distribution systems. It features a fixed-core body construction for secure installation in new panel builds or controlled retrofit environments. The device converts measured AC current into a standard 4–20 mA analog output compatible with PLCs, meters, and monitoring equipment. Designed for panel mounting or optional 35 mm DIN rail installation, it includes screw terminal connections and carries a UL 508 listing for industrial control panel use.
Key Features:
- Selectable Current Ranges: Configurable for 0–375A, 0–500A, or 0–750A measurement ranges.
- Fixed-Core Construction: Provides stable and secure mounting for permanent installations.
- 4–20 mA Output Signal: Standard analog output for PLC and monitoring system compatibility.
- 24 VDC Operation: Powered by common industrial control voltage.
- Single-Phase AC Measurement: Designed for one-phase current sensing applications.
- Panel or DIN Rail Mounting: Flexible installation options for control enclosures.
- Screw Terminal Wiring: Ensures reliable electrical connections.
- UL 508 Listed: Certified for use in industrial control panels.
The ACT750-42L-F delivers the reliability and precision required for industrial current monitoring and load measurement applications.
