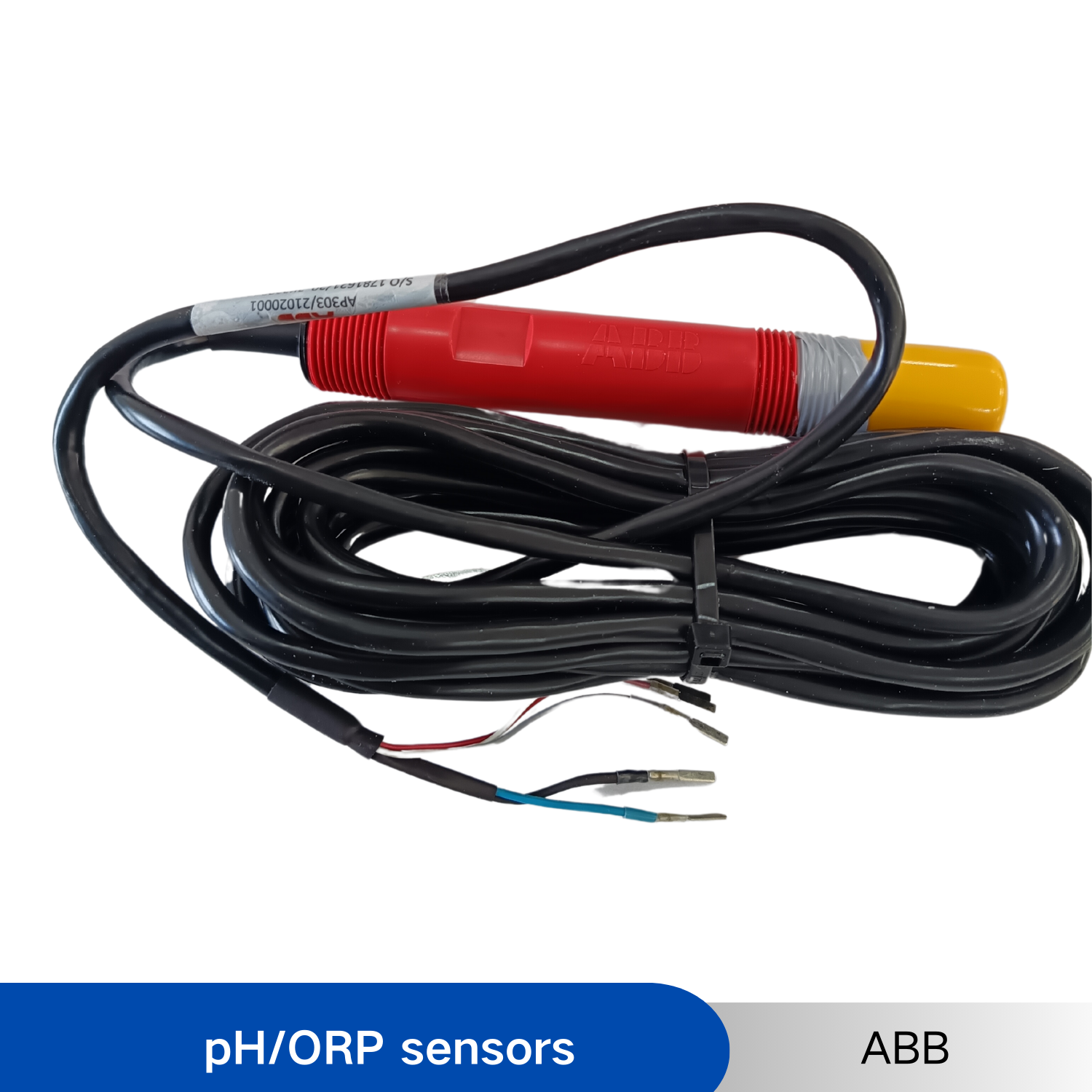

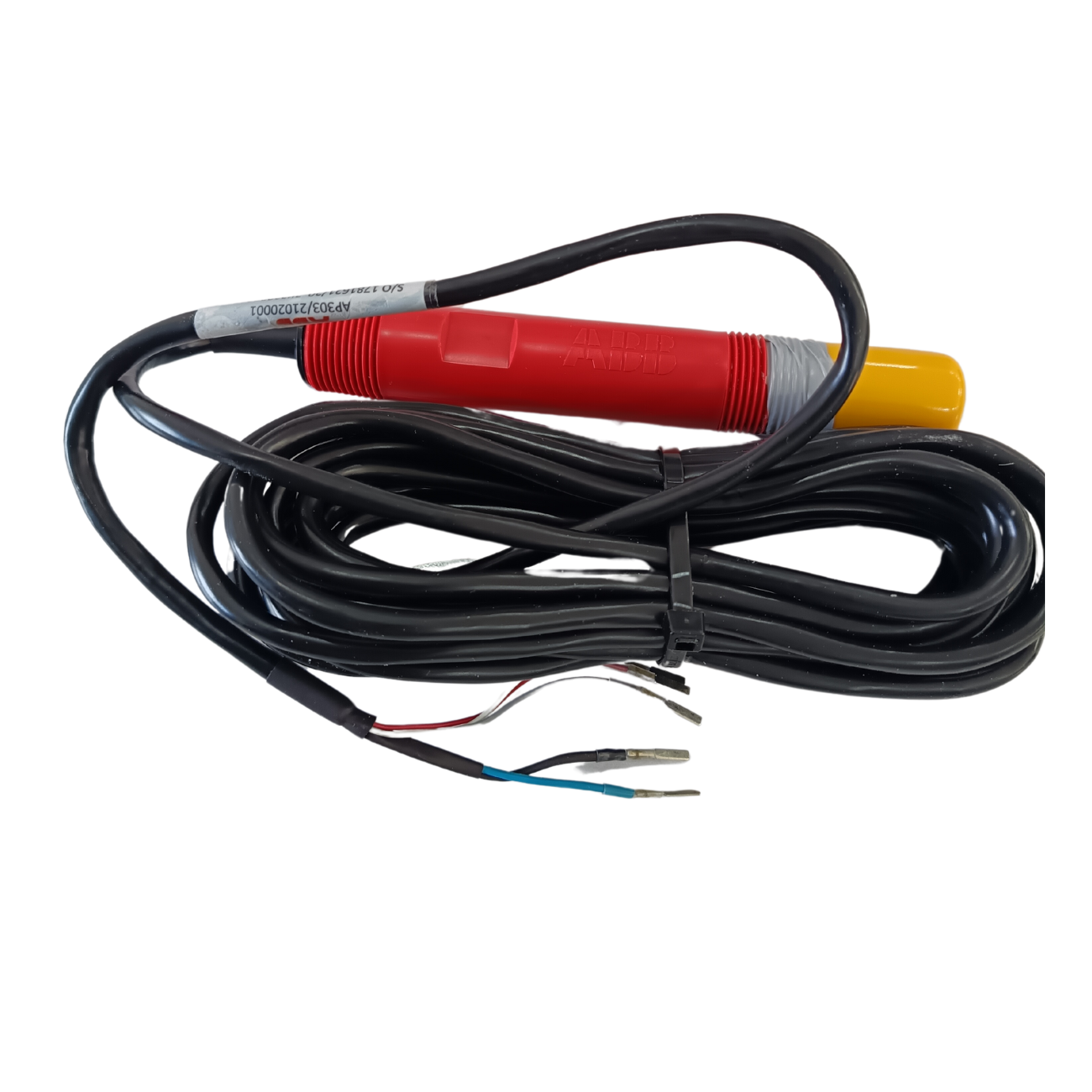

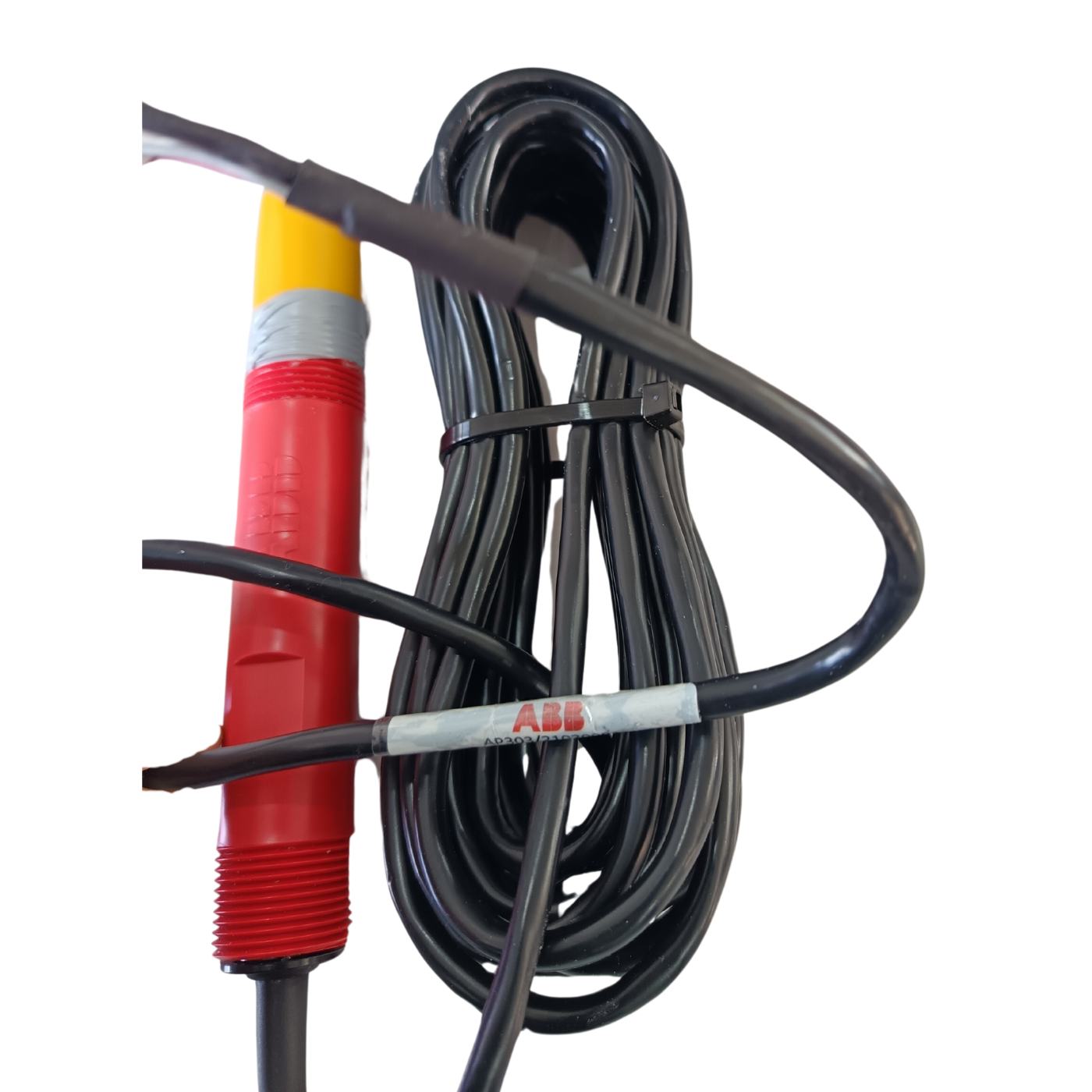

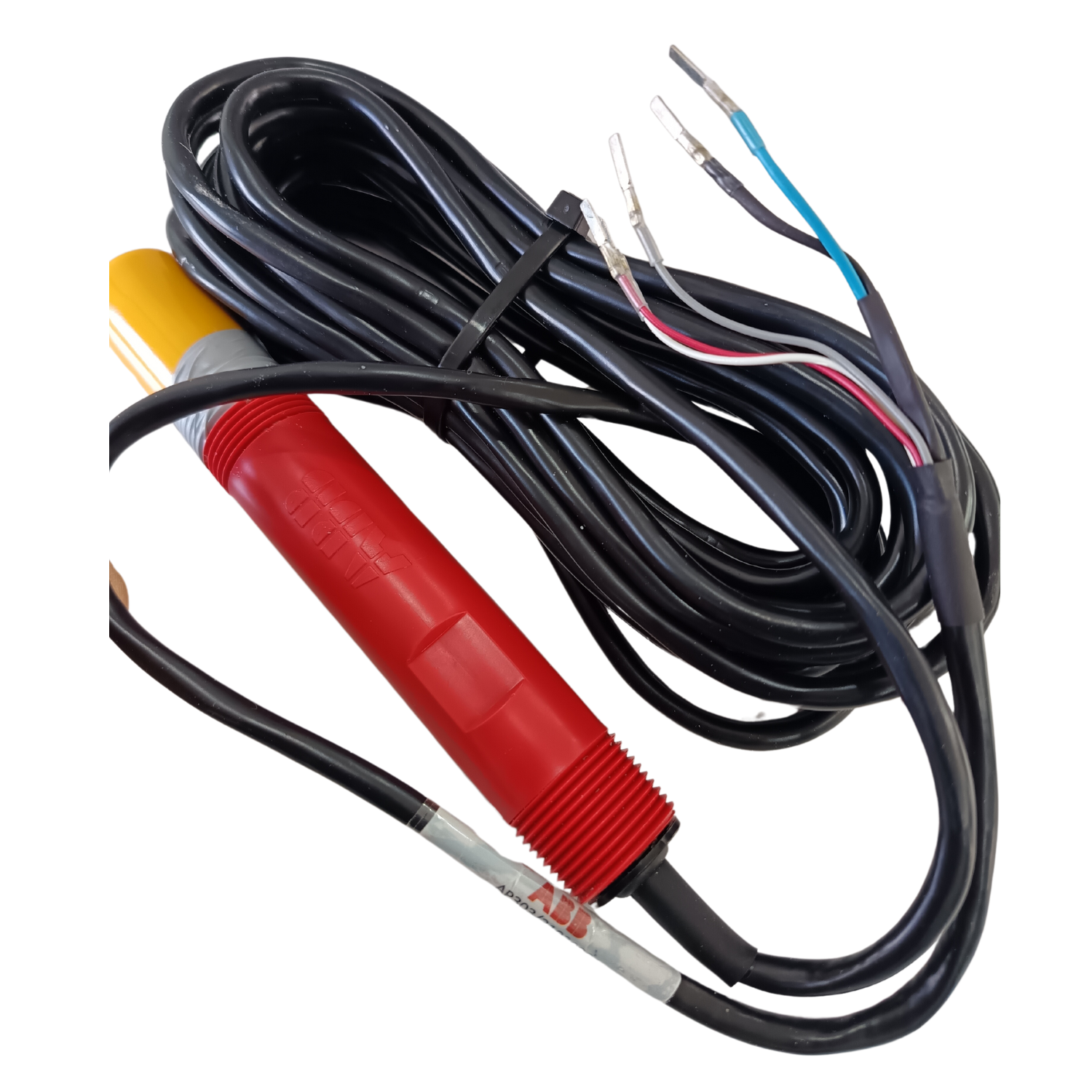

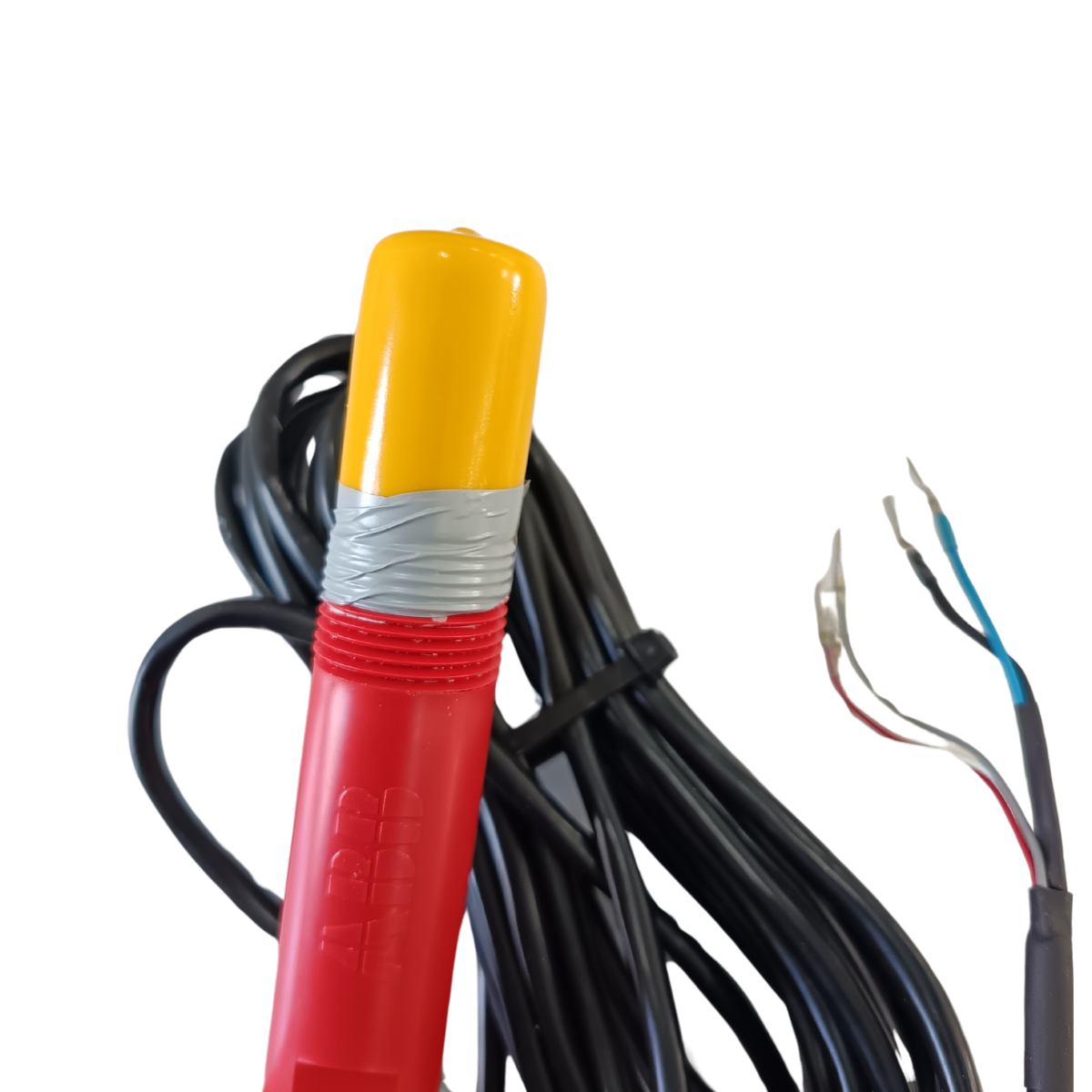

Genuine ABB AP300 series combination pH/Redox (ORP) sensor (AP30321020001), an economical, reliable solution combining measurement, reference, and temperature compensation in a single unit for water, food, pharmaceutical, and chemical process applications.

Specifications

• Model: AP30321020001 (AP300 series)
• Type: Combination pH / Redox (ORP) sensor
• pH Measuring Range: 0 to 14 pH (standard glass); 0 to 10 pH (low temperature glass)
• Redox (ORP) Measuring Range: -2000 to 2000 mV
• Temperature Range: 0°C to 105°C (body/bulb glass/ORP); 5°C to 100°C (flat glass)
• Max Pressure: 6 bar (90 psi) @ 25°C
• Temperature Compensator: Integral Pt100 or Balco 3kΩ
• Body Material: PPS (Ryton) or PVDF (Kynar), depending on variant
• Reference System: Ag/AgCl - 3.5M KCl in gel matrix
• Reference Junction: Porous PTFE

Ordering & Availability

This is a B2B wholesale listing. Contact us to request a formal quote (RFQ) with your required glass type, body material, and quantity for a tailored price.
