Description

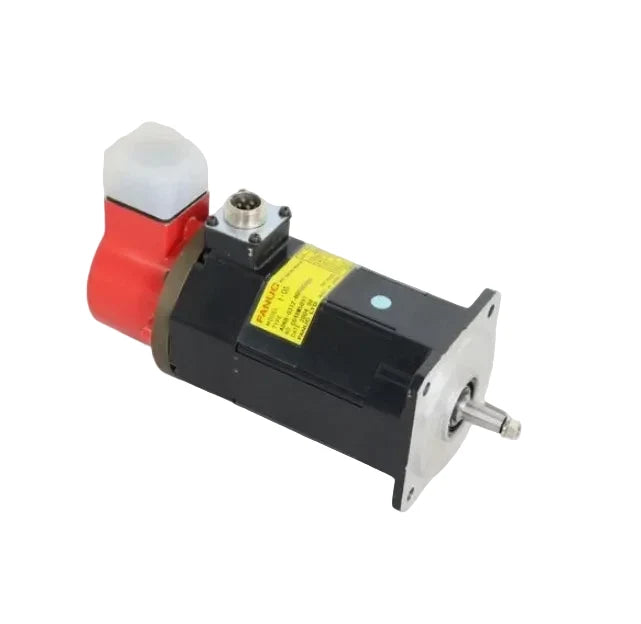

The Fanuc A06B-0312-B002 is a three-phase AC servomotor engineered for controlled motion applications in CNC and industrial automation systems. Rated at 120 V with a 2000 RPM operating speed, this Model 1-0S motor features a tapered shaft for secure mechanical coupling. It provides stable torque output and reliable closed-loop performance in precision-driven environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fanuc |
| Category |
Motors & Drives |
| Part Number |
A06B-0312-B002 |
| Subcategory |
AC Servo Motors |
| Motor Type |
AC Servomotor |
| Model |
1-0S |
| Rated Speed |
2000 RPM |
| Voltage |
120 V |
| Phase |
Three Phase |
| Poles |
8 Poles |
| Stall Torque |
2 Nm |
| Stall Current |
2.2 A |
| Excitation Type |
Permanent Magnet |
| Insulation Class |
Class F |
| Ambient Temperature Rating |
40°C |
| Shaft Type |
Tapered Shaft |
| Weight |
15 lbs |
Information About A06B-0312-B002
The A06B-0312-B002 is a Fanuc AC servomotor designed for integration with compatible Fanuc servo amplifiers and CNC control platforms. Built as a permanent magnet excitation motor with 8 poles, it supports smooth rotational characteristics and controlled torque delivery across its operating range. The unit operates on 120 volts, three-phase power and is rated for ambient temperatures up to 40°C, with Class F insulation to ensure thermal durability. Its tapered shaft configuration allows accurate alignment and secure transmission of motion in machine tool and automated axis systems.
Key Features:
- Model 1-0S Configuration: Designed for CNC axis drive and servo-controlled motion systems.
- 2000 RPM Speed Rating: Supports controlled and stable rotational performance.
- 120 V Three-Phase Operation: Compatible with designated industrial servo drive systems.
- 8-Pole Design: Provides smooth torque characteristics and consistent motor response.
- Permanent Magnet Excitation: Enhances efficiency and precise control capability.
- Tapered Shaft Construction: Ensures secure mechanical fit and accurate alignment.
- Stall Torque Rating: Delivers stable holding torque of 2 Nm.
- Class F Insulation: Supports thermal endurance in industrial operating environments.
The A06B-0312-B002 delivers the reliability and precision required for CNC axis control and industrial motion applications.
