Description

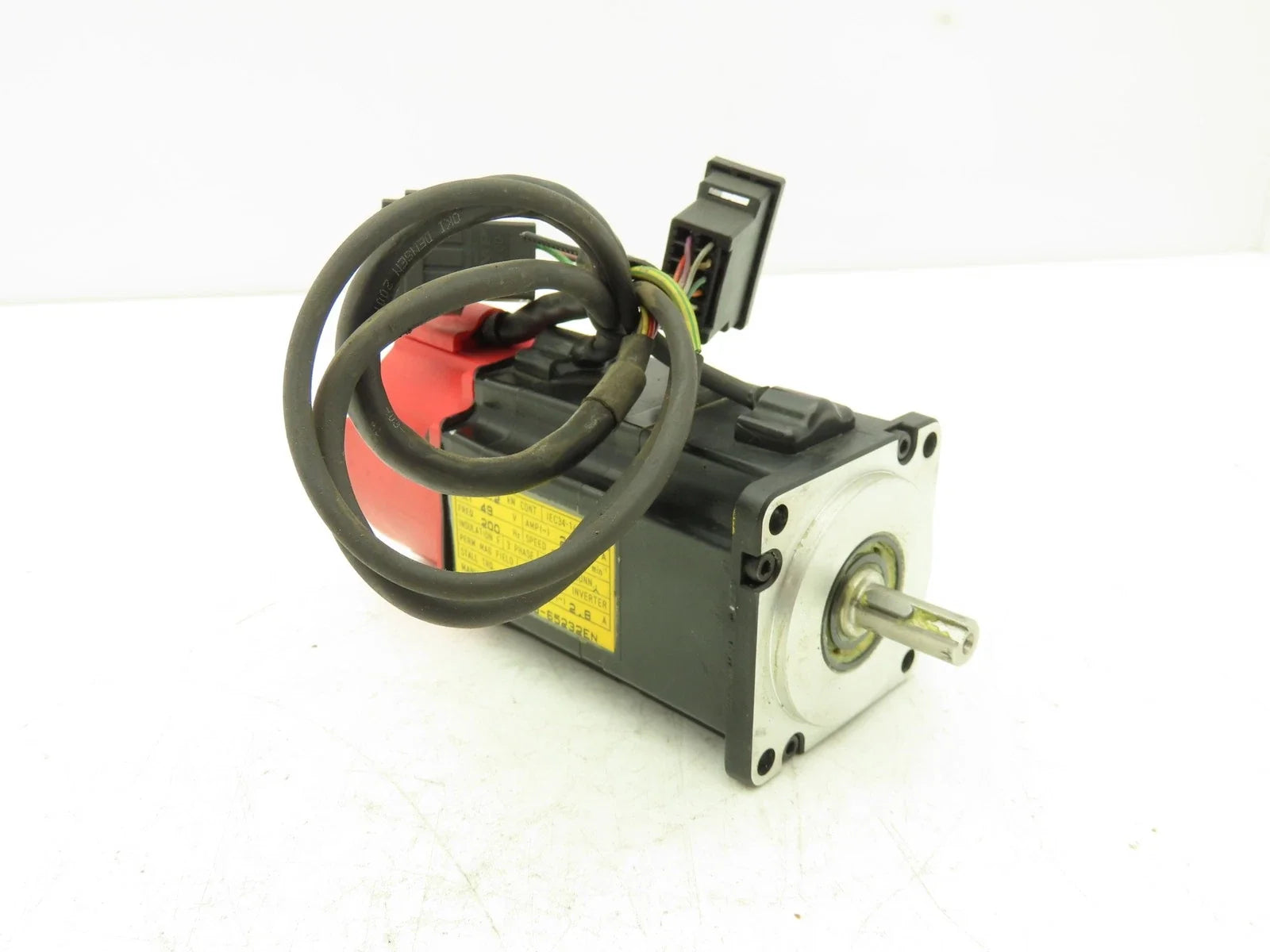

The GE Fanuc A06B-0113-B175 is an AC servo motor designed for precision-controlled motion in CNC and automated machinery. This B0.5/3000 A32B model features an integrated brake and operates at 3000 RPM for accurate axis positioning. It is engineered to deliver stable torque output and controlled response in three-phase servo drive systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
Motors & Drives |
| Part Number |
A06B-0113-B175 |
| Subcategory |
AC Servo Motors |
| Motor Type |
AC Servo Motor |
| Series |
B0.5/3000 |
| Model Configuration |
A32B |
| Rated Speed |
3000 RPM |
| Rated Current |
2.8 A |
| Voltage |
49 V |
| Frequency |
200 Hz |
| Phase |
Three Phase |
| Brake |
Integrated Holding Brake |
| Application |
CNC Machinery |
| Duty Rating |
Continuous Duty |
| Weight |
14 lbs |
Information About A06B-0113-B175
The A06B-0113-B175 is a GE Fanuc AC servo motor from the B0.5/3000 series, developed for integration with compatible CNC servo amplifiers. Operating at 49 V and 200 Hz with a 2.8 amp rating, it supports efficient three-phase performance for controlled motion applications. The A32B configuration includes a built-in holding brake, allowing secure axis positioning during power-off or idle conditions. Designed for machine tool and automated production equipment, it provides reliable rotational stability and repeatable positioning accuracy.
Key Features:
- B0.5/3000 Series Design: Engineered for CNC axis drive applications.
- 3000 RPM Speed Rating: Supports high-speed precision motion control.
- Integrated Holding Brake: Maintains axis position during power interruption or standby.
- Three-Phase Operation: Ensures balanced and stable motor performance.
- 49 V Operating Voltage: Compatible with designated Fanuc servo amplifiers.
- 2.8 Amp Current Rating: Provides controlled and efficient power usage.
- 200 Hz Frequency Rating: Designed for servo-controlled drive environments.
- A32B Motor Configuration: Supports accurate closed-loop positioning systems.
The A06B-0113-B175 delivers the reliability and precision required for CNC axis control and automated motion applications.
