Description

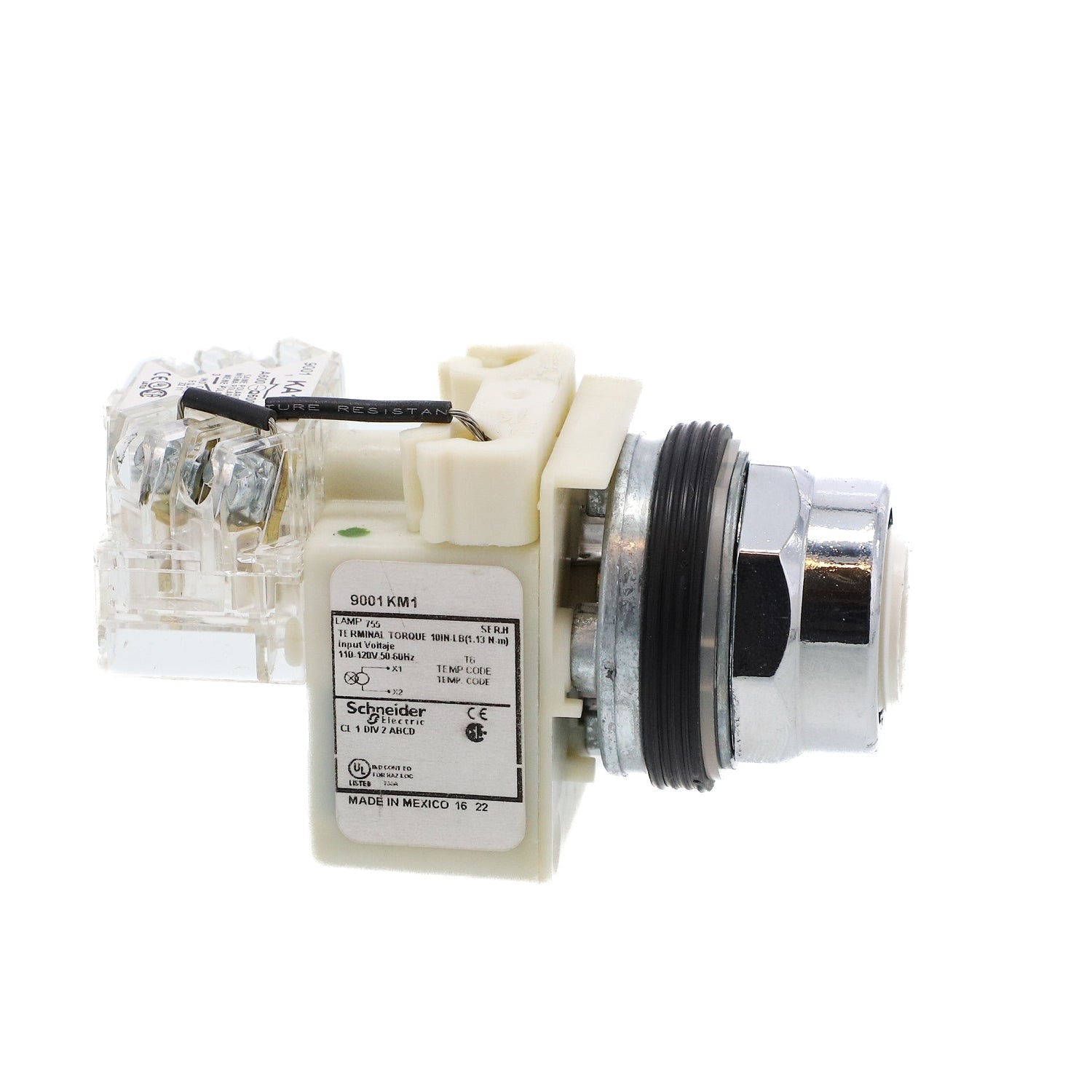

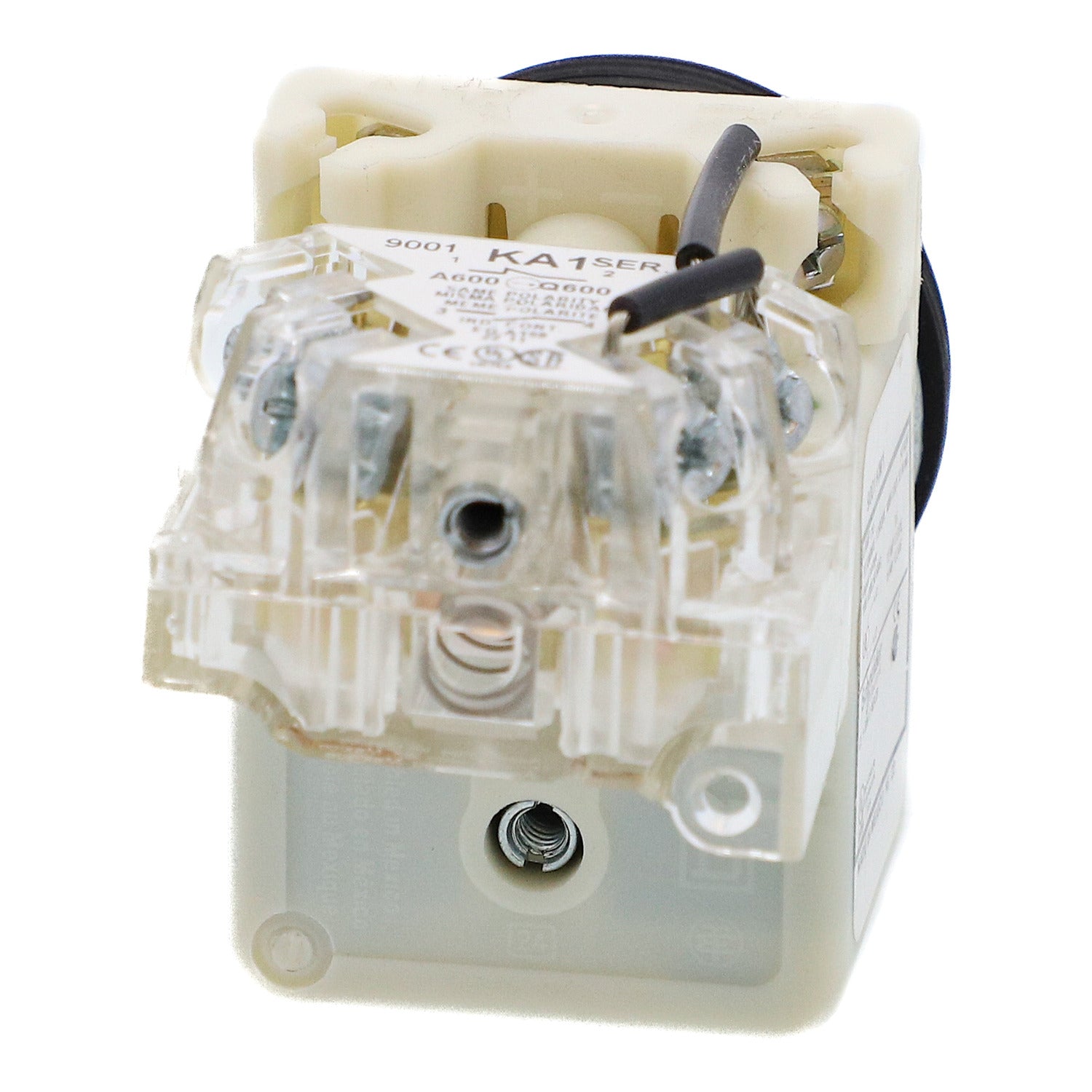

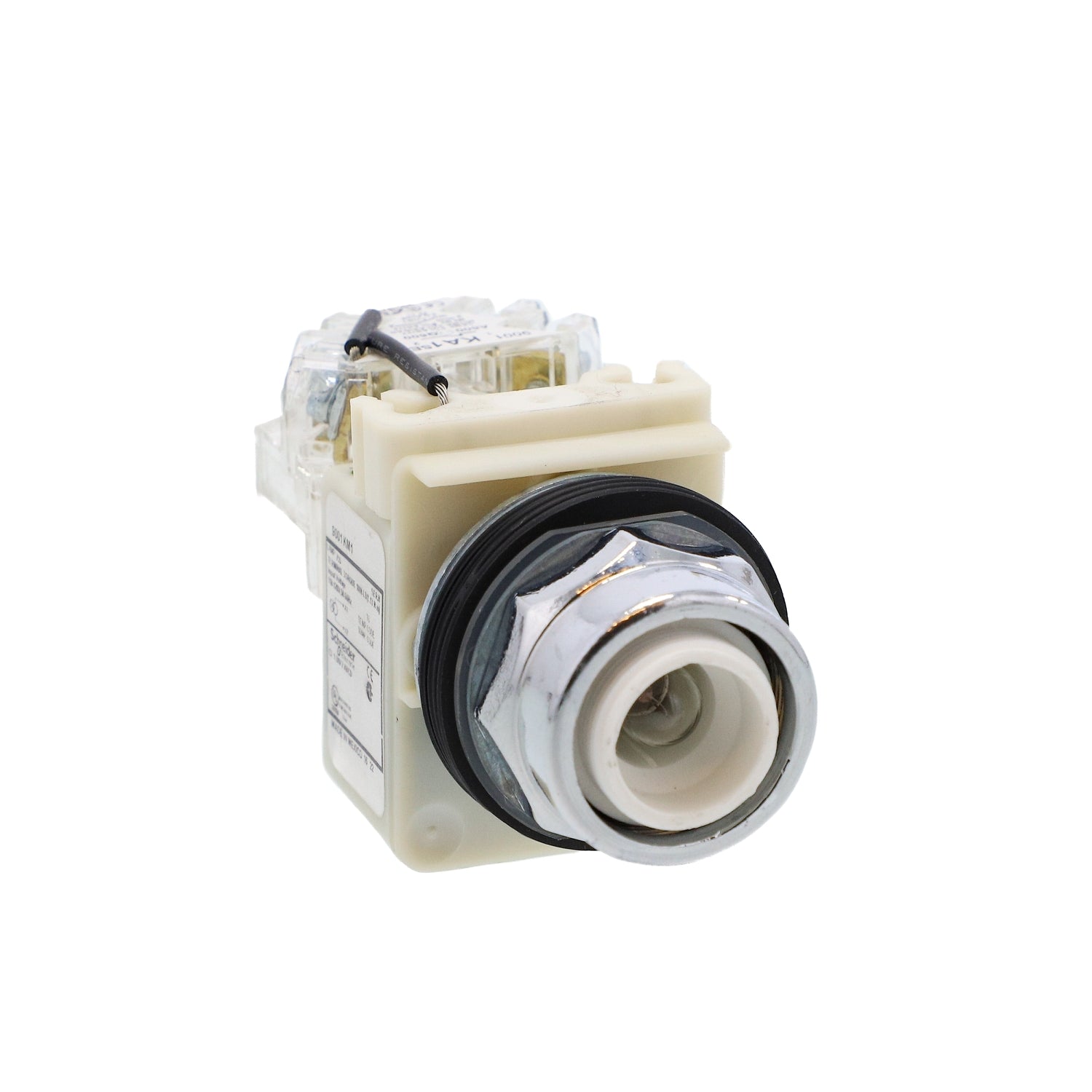

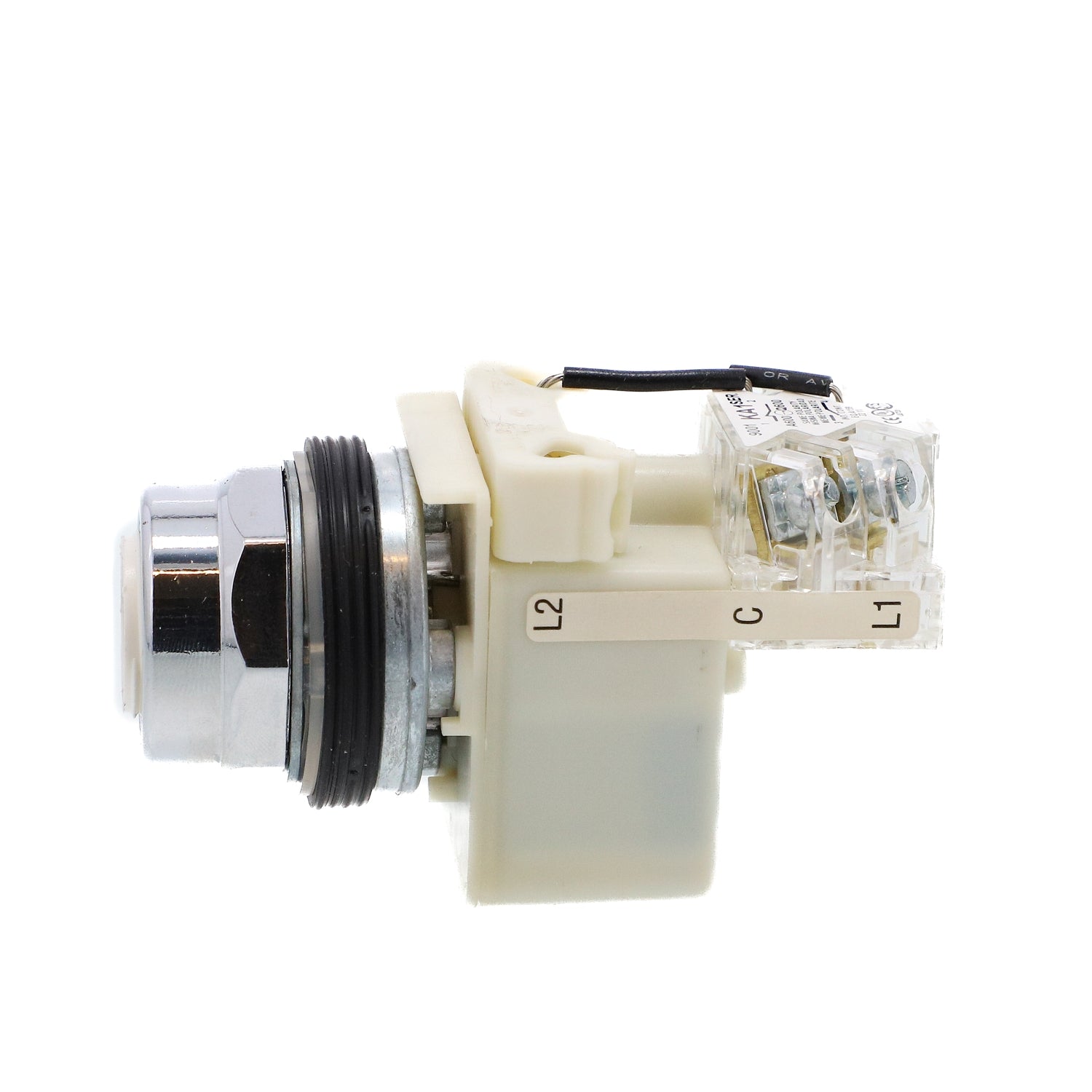

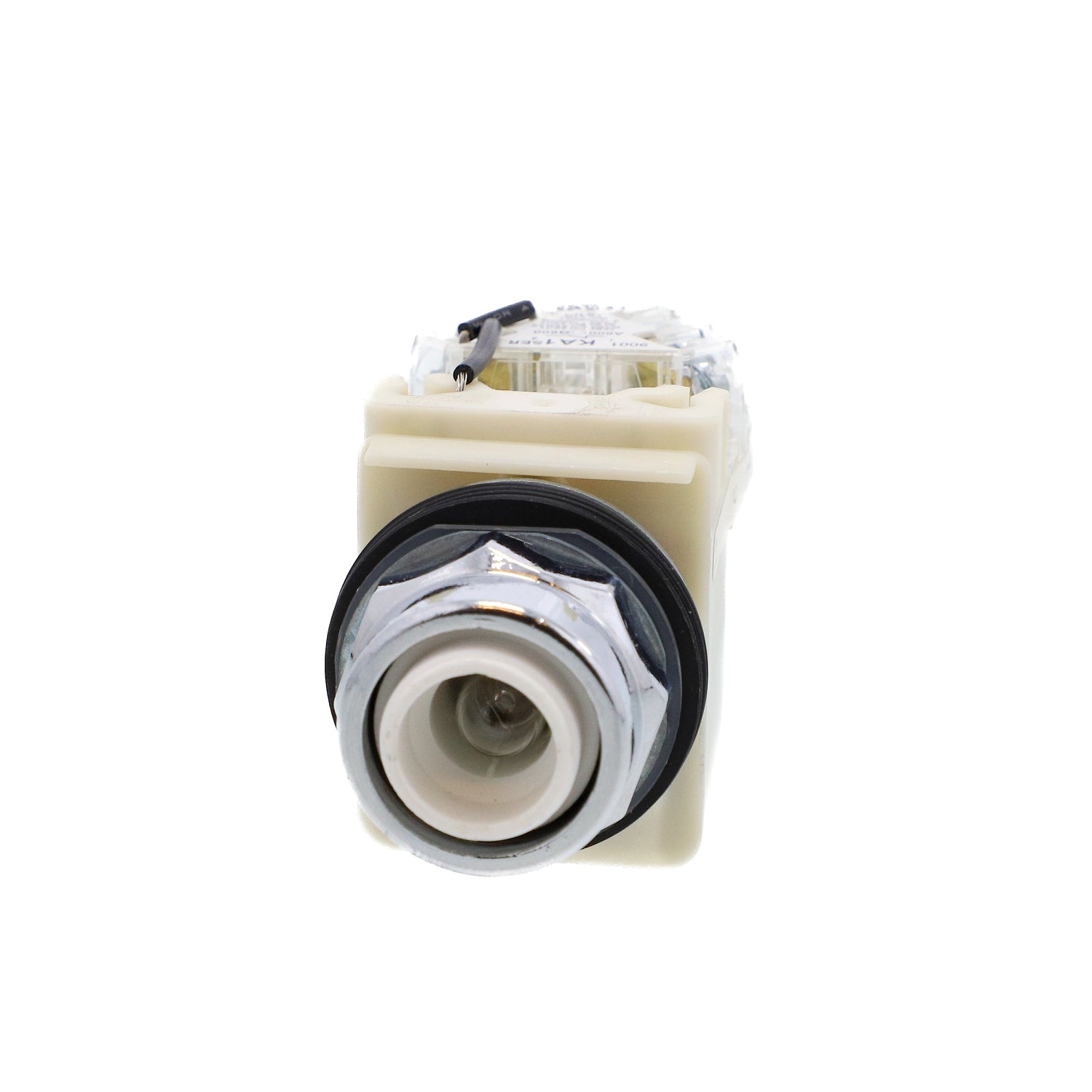

The Schneider Electric 9001KT1 is a push-to-test pilot light head from the Harmony 9001K series, designed for industrial signaling applications. It features a durable metal bezel, incandescent illumination, and integrated transformer for 110–120 V AC supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
|
| Part Number |
9001KT1 |
| Subcatecory |
|
| Series |
Harmony 9001K
|
| Mounting Diameter |
1.2 in (30 mm)
|
| Bezel Material |
Chrome-plated Metal
|
| Operating Mode |
Push-to-Test
|
| Lens/Cap Color |
Without cap
|
| Bulb Base |
BA 9s
|
| Light Source |
Incandescent
|
| Light Block Supply |
Via internal transformer (110–120 V AC)
|
| Frequency |
50/60 Hz
|
| Contact Configuration |
1 C/O (1 change-over contact)
|
| IP/NEMA Protection |
IP66, NEMA 1, 2, 3, 3R, 4, 6, 12, 13
|
| Certifications |
UL (E42259), CSA (LR25490), CE, ABS, RoHS
|
| Operating Temperature Range |
-25°C to +70°C (-13°F to +158°F)
|
| Package Dimensions |
4.5 x 2.3 x 2.0 in (11.43 x 5.84 x 5.08 cm)
|
| Country of Origin |
9.12 oz (258.5 g)
|
| Package Weight |
Mexico (MX)
|
Information About 9001KT1
The 9001KT1 is a 30 mm pilot light head from the Harmony 9001K metal series by Schneider Electric. Engineered for push-to-test operation, it incorporates a BA9s incandescent bulb with an internal transformer supporting 110–120 V AC at 50/60 Hz. Its robust chrome-plated metal bezel ensures resistance against vibration, corrosion, and environmental factors. With approvals from UL, CSA, and CE, it is well-suited for demanding industries like petrochemical, marine, automotive, and heavy machinery.
Key Features:
- Metal Bezel Construction: Provides high durability and strength for rugged industrial settings.
- Push-to-Test Functionality: Allows manual verification of lamp functionality without disconnecting the circuit.
- Internal Transformer: Operates with 110–120 V AC supply using integrated step-down transformer.
- 30 mm Panel Mounting: Compatible with standard control panel openings for easy installation.
- Incandescent Bulb Illumination: Traditional lighting for clear signaling under various conditions.
- NEMA Enclosure Ratings: Complies with NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental protection.
- Vibration Resistant: Qualified for 7g from 2 to 500 Hz, ensuring stable operation in mobile and heavy machinery.
- Global Certifications: UL, CSA, CE compliant, also meets IEC, EN, and NOM standards.
- ABS Certified: Approved by the American Bureau of Shipping for marine applications.
- Wide Temperature Range: Operates reliably from -25°C to +70°C, suitable for extreme conditions.
The 9001KT1 provides a rugged and certifiable signaling solution for harsh and high-reliability industrial environments.
