Description
The 889M-F12AH-10 is a 10-meter M23 cordset from Allen-Bradley, designed for use with industrial sensors and actuators. It features a 12-pin female straight connector and provides rugged, reliable connections for harsh environments, supporting high-speed signal and power transmission in automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Wire and Cable |
| Part Number |
889M-F12AH-10 |
| Subcategory |
Quick Disconnect Cables & Cord Sets
|
|
Amperage
|
4 Amp |
| Cable Type |
Multi-Core
|
| Connector Material |
Au |
| Material |
Brass |
| Number of Pins |
|
| Standard |
|
| Wire Size |
|
| Applications |
|
| Connector Type |
Female (Bus) Straight, Free Conductor End
|
| Number of Poles |
|
| Temperature Rating |
|
| Voltage |
|
| Color |
|
| Cable Length |
|
| Weight |
|
Information About 889M-F12AH-10

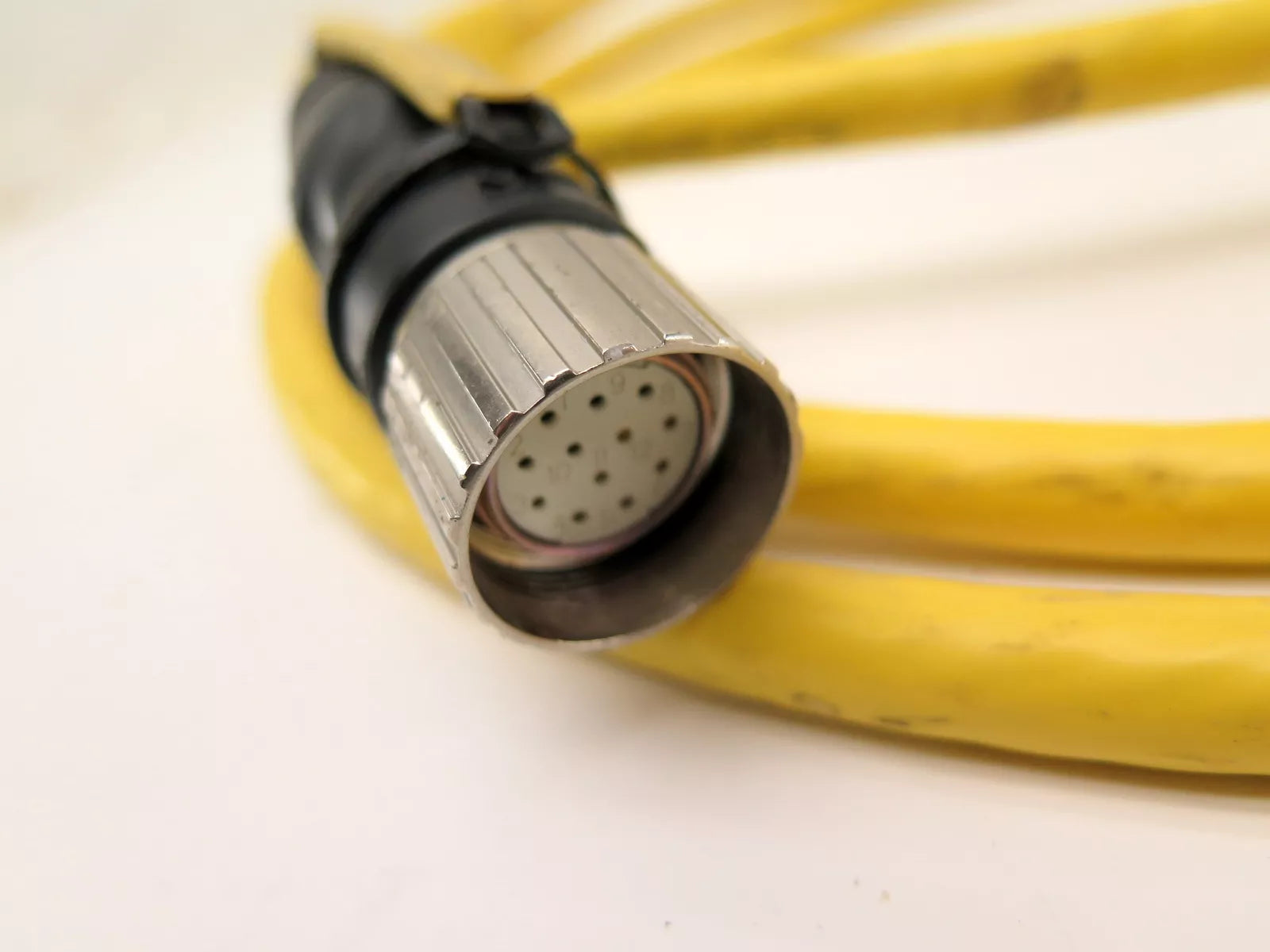

The Allen-Bradley 889M-F12AH-10 is a 10-meter M23 cordset designed to provide secure and reliable connections for high pin-count field devices in industrial automation systems.
Key Features:
-
Connector Type: 12-pin female, straight M23 connector.
-
Cable Specifications:
-
Length: 10 meters (32.8 feet).
-
Material: Yellow, unshielded PVC cable.
-
Conductor Size: 18 AWG with one twisted pair.
-
Electrical Ratings:
-
Voltage Rating: 300V.
-
Current Rating: 4A.
-
Construction Materials:
-
Coupling Nut: Nickel-plated brass.
-
Connector Shell: Molded oil-resistant polyurethane (PUR).
-
Contacts: Gold over nickel-plated brass.
-
Color Coding: Complies with IEC standard color code.
This cordset is part of Rockwell Automation's Bulletin 889M M23 series, which offers secure connections for devices requiring multiple pins.
