Description

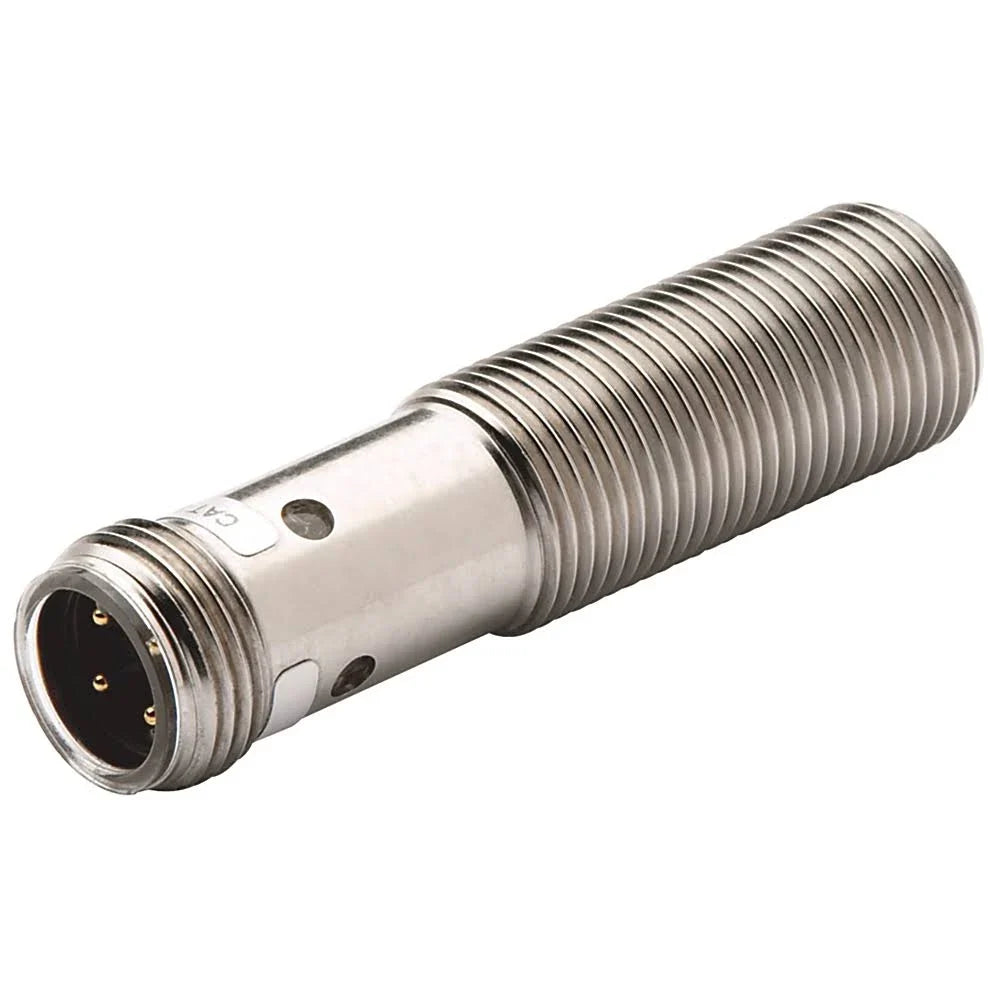

The Allen-Bradley 872C-DH5NP18-D4 is an 18 mm barrel-style inductive proximity sensor from the WorldProx™ series, engineered for reliable non-contact metal detection in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Sensors & Switches |
| Part Number |
872C-DH5NP18-D4 |
| Subcategory |
|
|
|
DC Standard |
|
Barrel Type
|
Short |
|
Material
|
Metal |
| Mounting Type |
Concise |
| Output |
Normally Open |
| Size |
18 mm Barrel Diameter |
| TC Connection |
4 Pin DC Micro QD |
| Voltage |
30 Volt |
| Barrel Diameter |
18 mm |
| Connection Type |
Plug-in |
| Maximum Load Current |
200 mA |
| Operating Frequency |
1500 Hz |
| Sensing Range |
5 mm |
| Standard |
C-TICK,CCC,CE,CUL,KC,RCM,UL |
| Type |
Cylinder, Screw-Thread, Metallic Target, Barrel |
| Weight |
0.07 lbs |
Information About 872C-DH5NP18-D4
The Allen-Bradley 872C-DH5NP18-D4 is an 18 mm barrel-style inductive proximity sensor from the WorldProx™ series. It is designed for reliable non-contact detection of metal objects in industrial automation settings. With a compact short-barrel design and robust construction, it is ideal for space-constrained environments requiring precise sensing.
Key Features:
- Application: Designed for use in industrial automation tasks such as object detection, part positioning, and presence sensing on conveyors, assembly lines, and packaging equipment.
- Barrel Design: Features an 18 mm threaded barrel with a short-body form factor, allowing flush mounting in tight installation areas.
- Sensing Distance: Offers a 5 mm sensing range with a shielded sensing face for enhanced immunity to interference.
- Output Configuration: PNP, Normally Open (N.O.) output suitable for standard 3-wire DC control systems.
- Voltage Range: Operates from 10–30 VDC, making it compatible with a wide range of industrial power supplies.
- Connection Type: Includes a 4-pin Micro (M12) quick-disconnect connector for easy and efficient wiring.
- Housing Material: Constructed from nickel-plated brass for corrosion resistance and mechanical durability.
- Ingress Protection: Rated IP67 for reliable performance in harsh environments, including exposure to dust and water.
- Temperature Range: Supports an operating range from -25°C to +70°C (-13°F to +158°F), ensuring functionality in diverse conditions.
- Certifications: Compliant with UL, CE, cUL, C-Tick, and KC standards for global use and safety assurance.
The 872C-DH5NP18-D4 is a dependable and compact proximity sensor that delivers accurate metal detection in demanding industrial applications. Its robust housing, quick-connect interface, and global certifications make it a versatile and trusted component in modern automation systems.
