Its compact size disguises its storage capacity. At just 22" long, 8.5" in diameter, it can store up to 576 fiber splices, using mass fusion splicing. Craft-friendly, affordable, reliable, durable and tested in accordance with Bellcore Testing Requirement GR-771-CORE and UL 1863, the COYOTE Closure has proven well worth the effort. This is the closure that will ensure long-term reliability and quality of the signal -- voice, video and data.

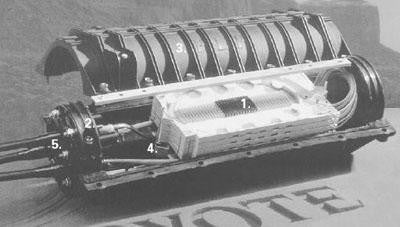

Features:
1. Fiber management system includes splice trays for mass or single splicing (fusion and mechanical).
2. Three-section End Plate has six cable entry ports, captive hardware, strength member tie-off, isolated grounds and requires no field drilling.
3. Durable glass-filled high-density thermoplastic shells. 8.5" in diameter. Built-in shell stabilizers and air valve.
4. Field-proven, permanent neoprene gasket sealing system. No re-entry kits needed. No flame required to break the seal or to install.
5. LOCK-TAPE Sealing System ensures a tight, permanently sealed End Plate assembly and maximum shear strength to resist cable pull out.

The Three-Section Six Port End Plate accommodates up to four 7/8" cables and two 3/4" cables. Additional grommets are available for multiple smaller cable entries in one grommet. Please check the attached PDF spec sheet for more information.

Specifications:
1. Size: 22(L) x 10.75(W) x 9.25(H) inch
2. Splice Tray Capacity: Holds up to eight (P/N: 80805110) 36 count single fiber splice trays; or up to four (P/N: 80805146) 144 count(mass fusion, 96 count for mass mechanical splice) ribbon splice tray.

Contents:
Closure, one Three-Section Six Port End Plate, one Blank End Plate, and Storage Compartment Kit.

Note:
1. This kit is for loose tube applications.
2. Splice trays must be ordered separately and are not included in this kit.
