Description

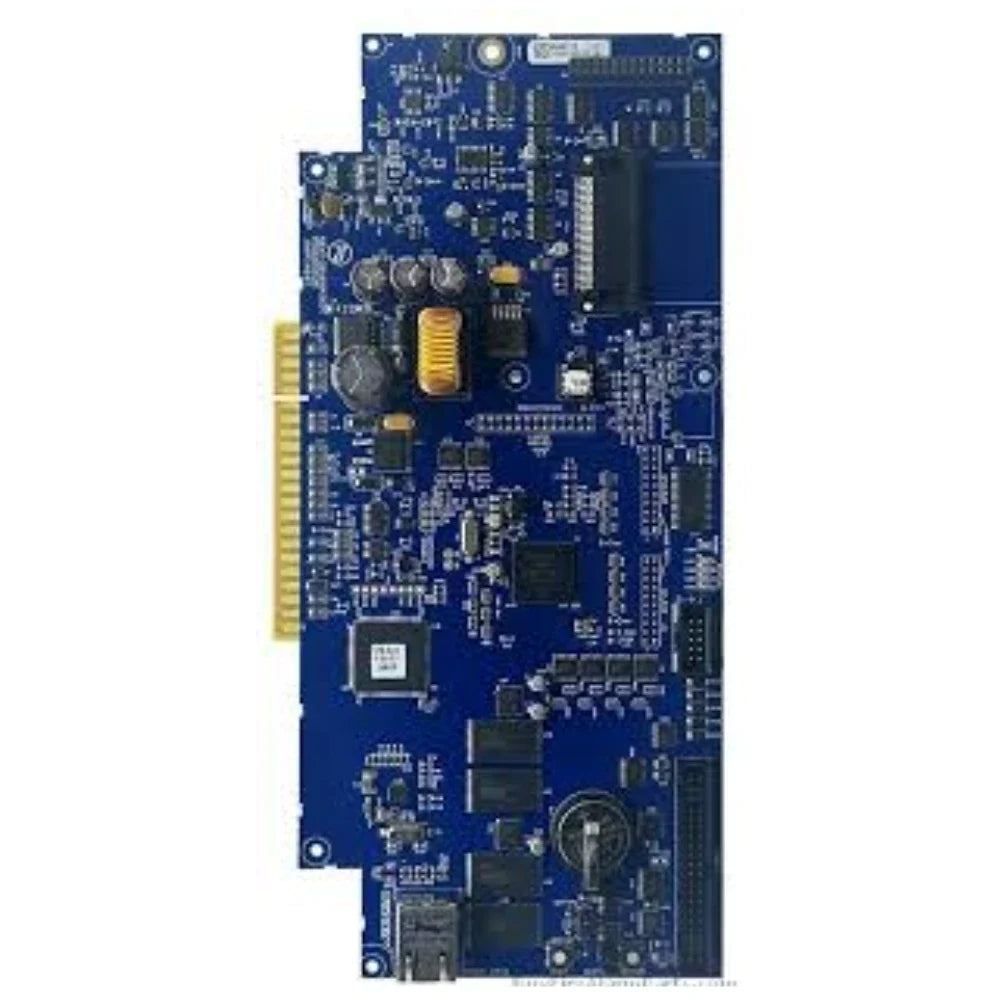

The Simplex 8566-719 is a master controller board designed for use in the Simplex 4100ES fire alarm control system. It serves as the primary processing module responsible for system logic, communication, and overall control operations. This board is used in system maintenance, upgrades, or replacement applications within compatible control panels.

Technical Specifications

Information About 8566-719

The 8566-719 is part of the Simplex 4100ES system architecture and functions as the central control and processing board. It manages system-level communication between input, output, and networked modules within the fire alarm control panel. The board is engineered to meet life safety system requirements, ensuring reliable performance in regulated environments. It is designed for direct installation in Simplex 4100ES control cabinets and interfaces seamlessly with other system components.

Key Features:

• Master Controller Function: Acts as the primary processing and control module for the 4100ES system.
• 4100ES System Compatibility: Designed specifically for Simplex 4100ES fire alarm control panels.
• System Communication Management: Coordinates data exchange between internal and external system modules.
• OEM-Equivalent Design: Matches original specifications for proper fit and function.
• Control Panel Integration: Intended for secure installation within Simplex control enclosures.
• Reliable Processing Performance: Supports stable system operation under continuous monitoring conditions.
• Life Safety Application Support: Engineered for use in regulated fire alarm environments.

The 8566-719 delivers the reliability and precision required for central control of advanced addressable fire alarm systems.
