Description

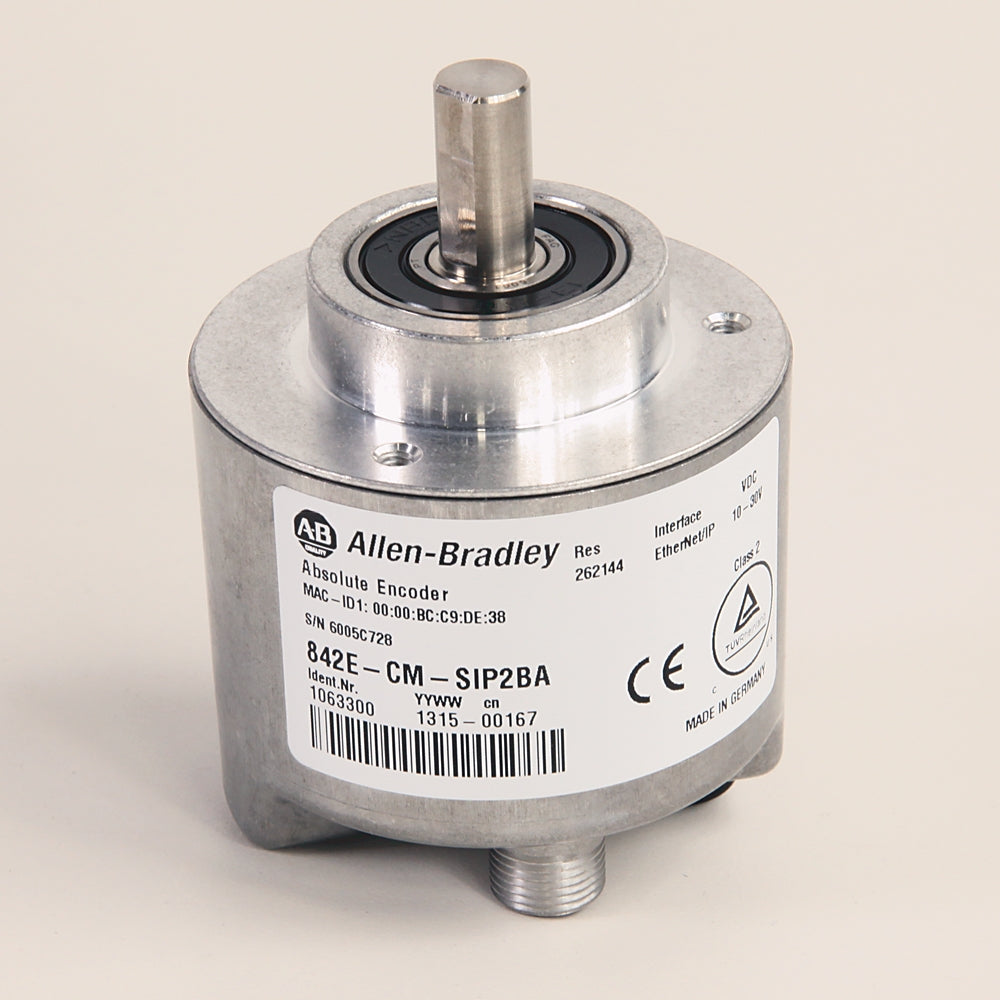

The 842E-CM-SIP2BA is a high-precision single-turn absolute encoder from Allen-Bradley, featuring integrated motion over EtherNet/IP. It is designed to deliver reliable position feedback in demanding automation environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
842E-CM-SIP2BA
|
| Subcatecory |
|
| Shaft Type |
3/8 in Solid Shaft with Flat |
| Communication Output |
EtherNet/IP with 1588 |
| Resolution |
18 Bit / 262,144 Steps/Rev |
| Voltage Range |
10-30 V |
| Connection Type |
M12 Connector |
| Standard |
CCC, CE, KC, RCM |
| Applications |
Absolute Encoder |
| Shipping Weight |
0.9800 lb |
Information About 842E-CM-SIP2BA
The 842E-CM-SIP2BA is part of the Allen-Bradley 842E series of absolute encoders, specifically engineered for Ethernet/IP communication with CIP Sync/1588 protocol support. This model offers 262,144 steps per revolution with an 18-bit resolution, ensuring accurate and detailed motion tracking. It operates with a 10-30V DC power supply and features a 3/8-inch solid shaft with a flat and M12 connector interface for secure and easy integration. Its compact design, single-turn functionality, and robust construction make it ideal for applications requiring reliable position encoding in factory automation and motion control systems.
Key Features:
-
EtherNet/IP Communication with CIP Sync: Enables real-time position feedback using 1588 time synchronization protocol.
-
18-Bit Single-Turn Resolution: Delivers 262,144 steps per revolution for high-precision motion tracking.
-
Robust Mechanical Design: Equipped with a 3/8" solid shaft and flat, ensuring secure mechanical coupling.
-
Wide Voltage Range: Operates on 10–30V DC for compatibility with standard industrial power supplies.
-
Compact M12 Connector Interface: Ensures simple and reliable integration into industrial systems.
The 842E-CM-SIP2BA provides reliable absolute position data through EtherNet/IP, making it suitable for motion control applications in complex industrial environments.
