Description

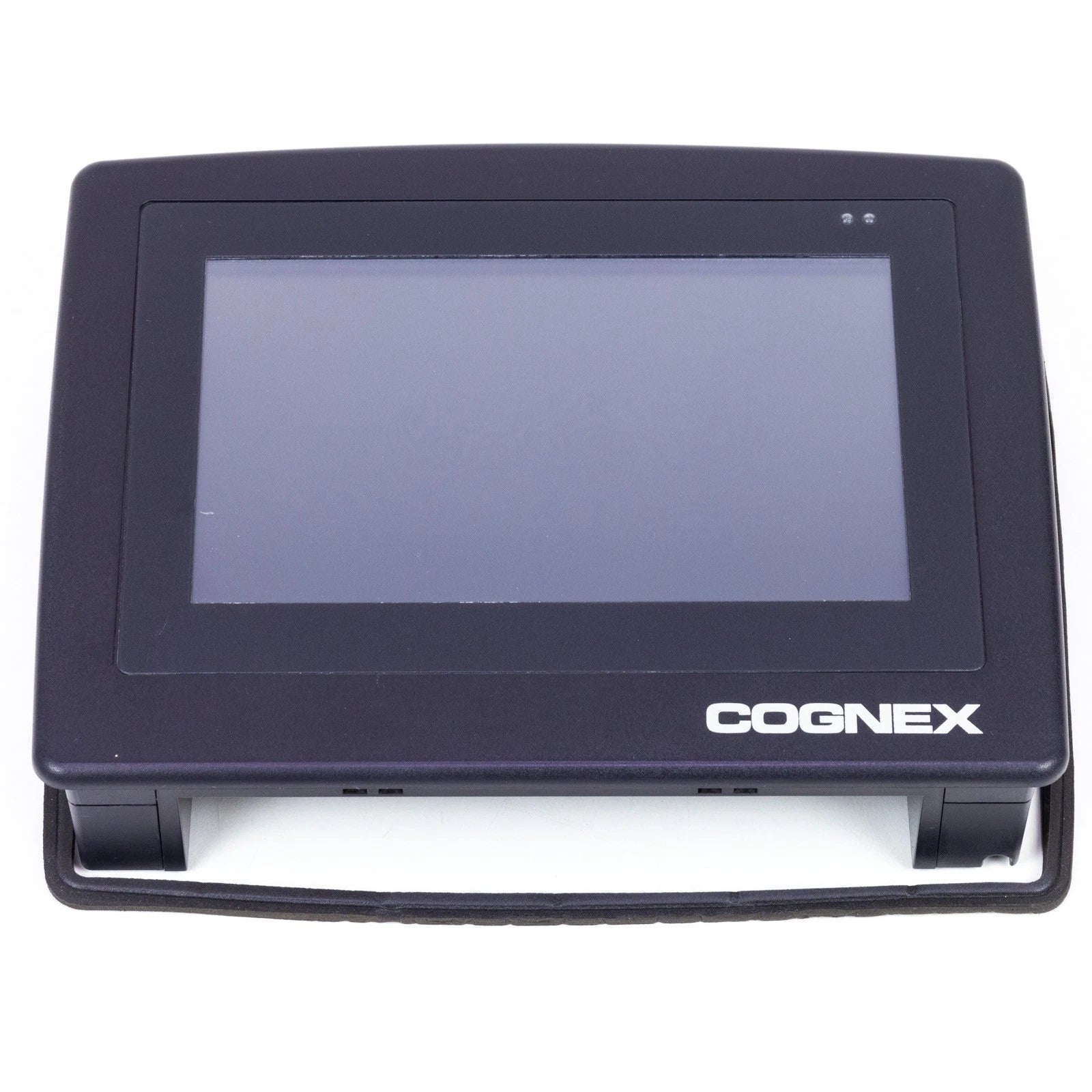

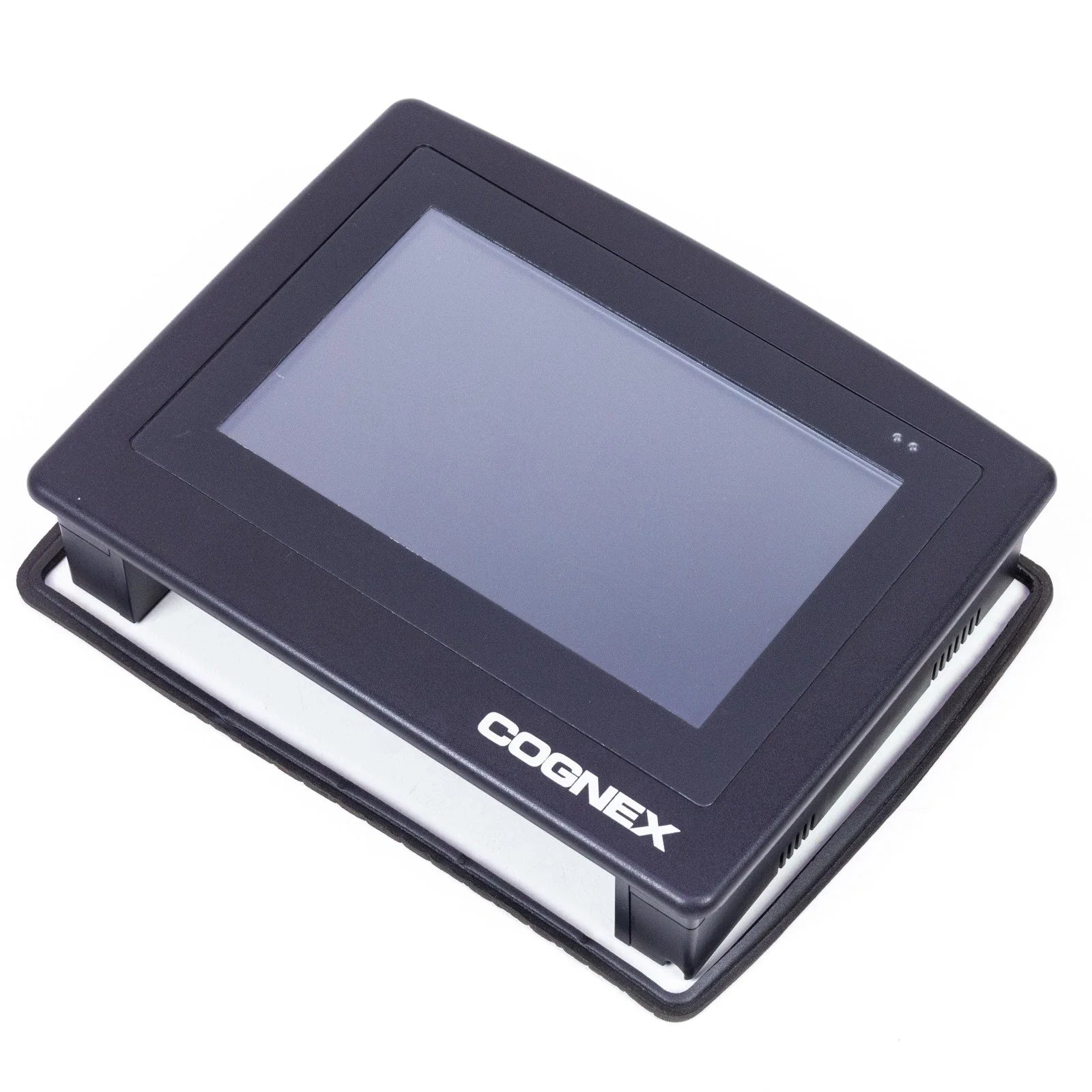

The Cognex 821-0004-1R VisionView 700 is a 7-inch industrial touchscreen display panel designed for real-time monitoring and control of machine vision systems. It is built to interface with Cognex In-Sight vision sensors and VisionPro software, providing a reliable and intuitive human-machine interface (HMI) for inspecting and analyzing production line data directly on the factory floor.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cognex |
| Category |
|
| Part Number |
821-0004-1R
|
| Subcategory |
Operator Interface |
| Display Type |
Touchscreen Panel |
| Screen Size |
7 inches |
| Power Supply |
24 VDC, 2.0 A |
| Wiring Type |
Class 2 Wiring |
| Supported Sensors |
Up to 4 Vision Sensors |
| USB Ports |
3x USB |
| Software Support |
Cognex In-Sight |
| Weight |
1.23 lbs |
Information About 821-0004-1R

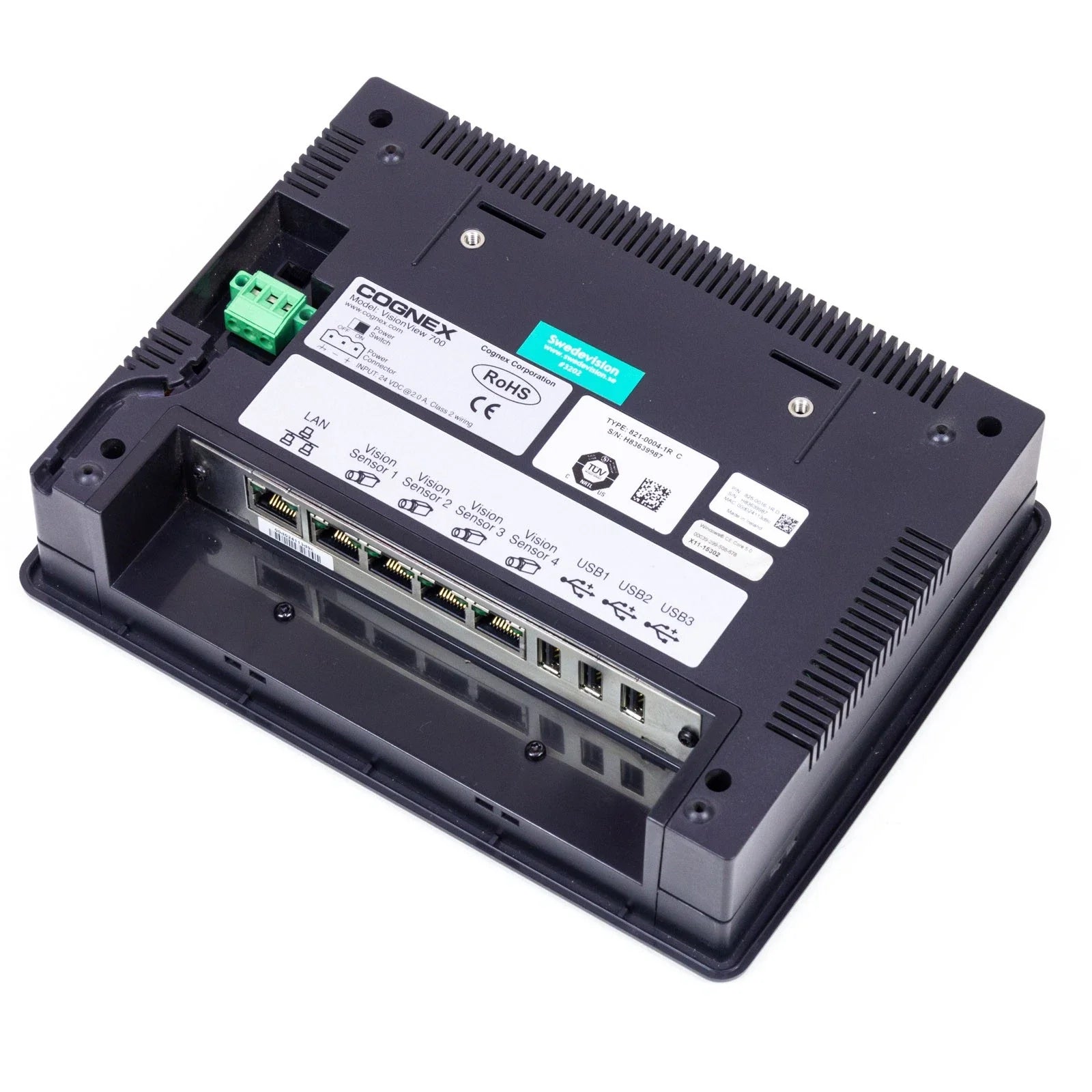

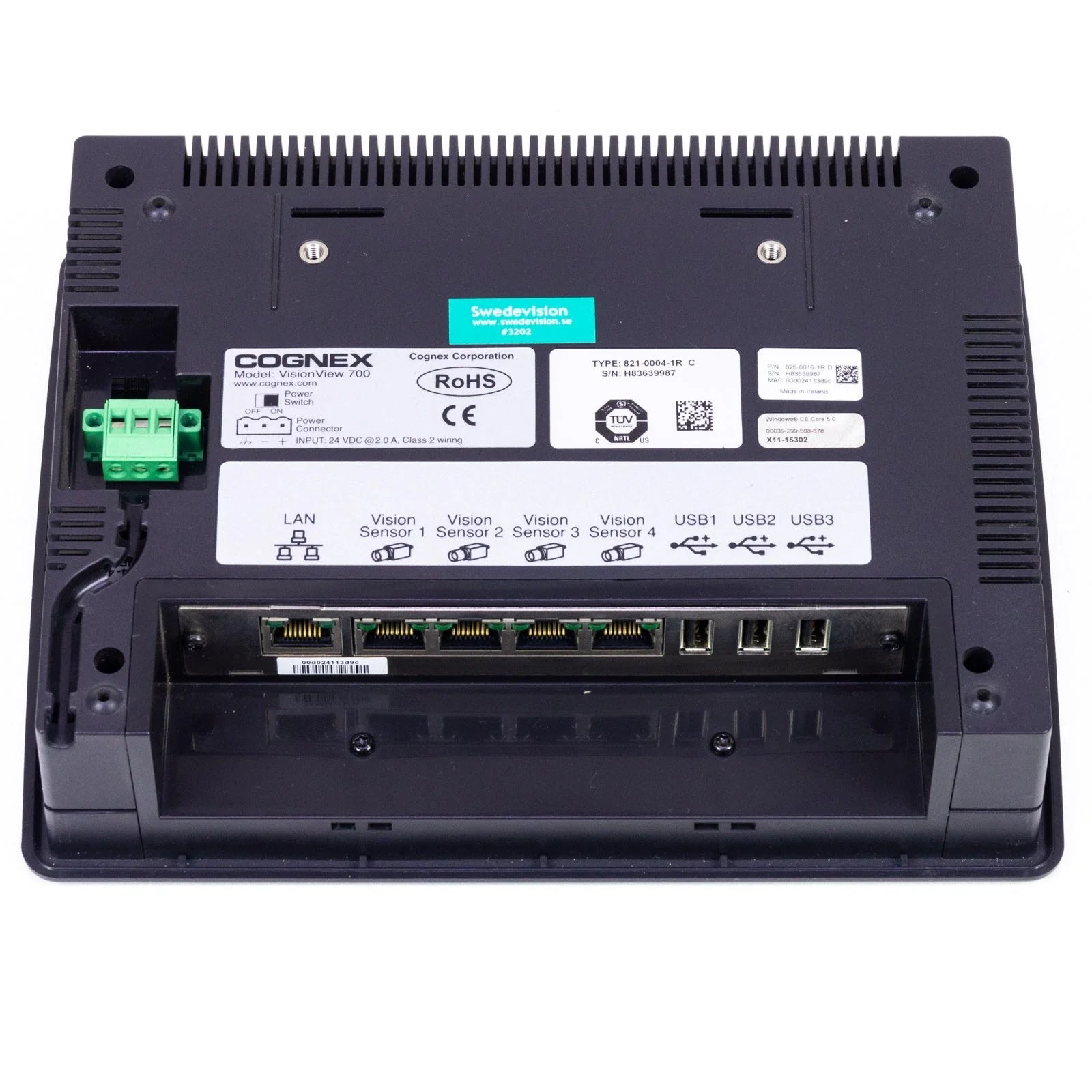

The 821-0004-1R VisionView 700 supports up to four vision sensors simultaneously, offering real-time visualization, results monitoring, and user input functionality. It is ideal for applications that require quick interaction with Cognex vision systems without a full PC. Powered by 24 VDC Class 2 wiring, it consumes 2.0 Amps, ensuring efficient energy use in industrial environments. The panel includes three USB ports for peripherals such as a mouse, keyboard, or USB storage device, and is compatible with In-Sight software to provide seamless system configuration and control.
Key Features:
- 7-Inch Touchscreen Display: Provides a bright and responsive interface for operators and technicians to interact with vision systems.
- Multi-Sensor Support: Capable of simultaneously handling up to four Cognex vision sensors, increasing inspection capacity.
- USB Expansion: Equipped with 3 USB ports for connecting input devices or downloading inspection data.
- Industrial Power Supply: Operates on 24 VDC at 2.0 Amps, making it suitable for Class 2 wiring environments.
- Software Compatibility: Fully supports Cognex In-Sight software, enabling image review, job changes, and diagnostics.
- Durable Design: Engineered for harsh industrial environments with a rugged form factor and reliable performance.
The VisionView 700 provides a compact and cost-effective way to deploy and manage Cognex vision systems directly at the point of use.
