Description
The Allen-Bradley 802T-AP is a rotary lever limit switch from the Bulletin 802T series, designed for heavy-duty industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
800T-T4T8AAXX |
| Subcategory |
|
|
Action
|
Momentary, Maintained |
|
Contact Configuration
|
2 NO, 1 NC |
|
Standard
|
CCC,CE,CSA,CUL,KC,MARINE,UL
|
|
Actuator
|
Switch Position Knob |
|
Operator Type
|
Four Way Toggle
|
|
Type
|
4-Position |
|
Series
|
800T PB |
|
Body Material
|
Metal Type |
|
Voltage Rating
|
24 Volt |
|
Enclosure Rating
|
Type 4 & 13 (Watertight/Oiltight) |
|
Wire Size Compatibility
|
18–14 AWG |
|
Current Rating
|
10 Amp |
|
Weight
|
0.24 lbs |
Information About 800T-T4T8AAXX

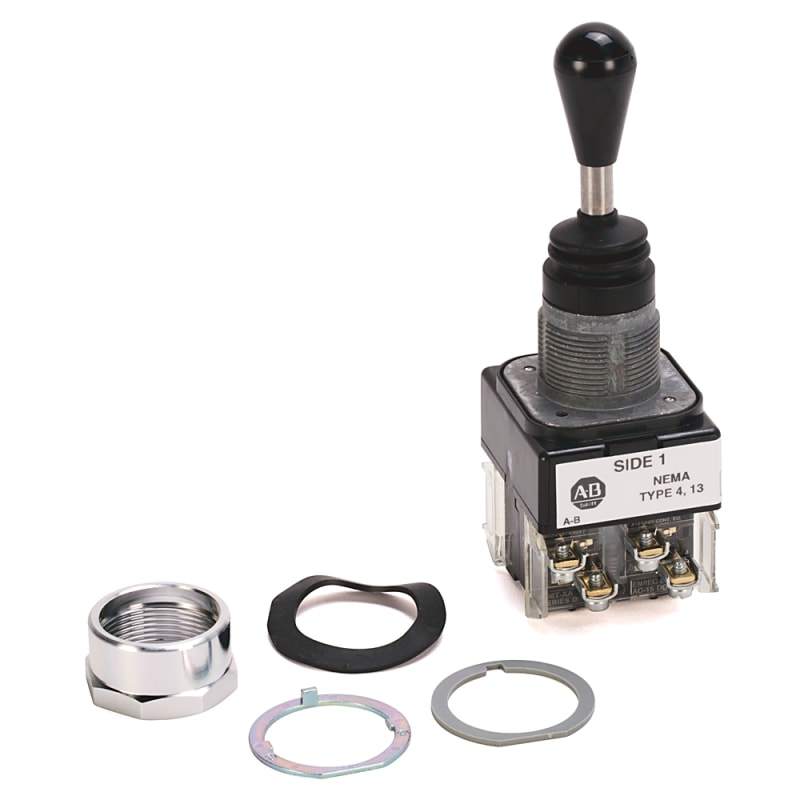

The Allen-Bradley 800T-T4T8AAXX is a heavy-duty, four-position toggle switch from Rockwell Automation's Bulletin 800T series, built for rugged industrial control applications requiring multi-directional momentary input and high reliability.
Key Features:
-
Design: Metal construction with 30.5 mm mounting for durability in harsh environments
-
Action Type: Spring-return action in all four directions (up, down, left, right) to center position
-
Contact Configuration: Includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
-
Positions: Four-position toggle operation with momentary return
-
Voltage Rating: 24 V
-
Current Rating: 10 A
-
Wiring Compatibility: Accepts 18–14 AWG wire sizes
-
Environmental Protection: Rated NEMA Type 4 and 13 for watertight and oiltight sealing
This toggle switch is ideal for control panels and operator stations in demanding industrial environments, offering precise, tactile control with enhanced environmental resistance.
