Description

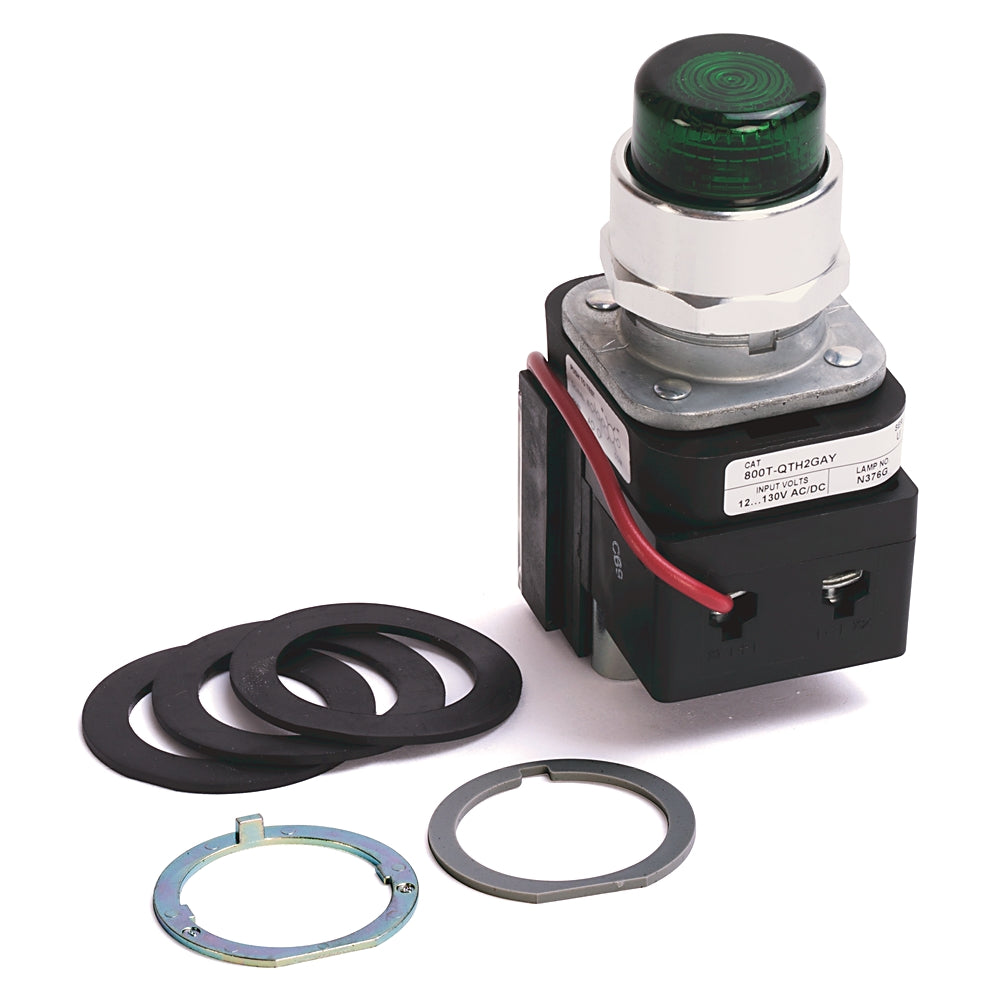

The Allen-Bradley 800T-QTH2G is a 30 mm pilot light push button designed for heavy-duty industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
800T-QTH2G |
| Subcategory |
|
| Block Type |
Standard |
| Enclosure Type |
IP65 |
| Lamp Type |
LED
|
| Lens Type |
Round/Flat |
| Standard |
CCC,CE,CSA,CUL,KC,MARINE,UL |
| Enclosure Rating |
IP65 |
| Illumination Type |
LED |
| Lens Color |
Green |
| Mounting Type |
Screw Terminal |
| Style |
Push-to-Test Type |
| Voltage |
12-130 Volt |
| Contact Blocks |
1 N.O. - 1 N.C. (Standard with Push-to-Test) |
| Weight |
0.35 lbs |
Information About 800T-QTH2G
The Allen-Bradley 800T-QTH2G is a 30 mm push-to-test pilot light from the durable 800T series, designed for high-performance use in industrial environments where visual status indication and manual testing are required.
Key Features:
-
Functionality: Combines a pilot light with a momentary push-to-test button, allowing operators to verify the indicator light operation during maintenance or routine checks.
-
Illumination: Utilizes a full-voltage LED module designed for long-lasting performance, supporting a wide voltage range from 12–130V AC/DC.
-
Lens Type: Features a green Fresnel lens, providing high visibility for clear status indication in control panels or operator interfaces.
-
Contact Configuration: Equipped with a 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact block, supporting both signaling and control functions.
-
Construction: Built with a rugged metal housing, the unit is suitable for use in tough industrial conditions.
-
Environmental Ratings: Compatible with NEMA Type 1, 4, 12, and 13 enclosures, offering protection against dust, water, oil, and corrosion.
-
Mounting: Designed for standard 30 mm panel mounting, making it easy to install into existing or new control panels.
-
Series: Part of the Allen-Bradley 800T line, known for its heavy-duty, reliable operator interface components.
This pilot light push button is ideal for industrial applications requiring reliable visual status indicators with built-in test functionality, ensuring both operational integrity and ease of maintenance.
