Description

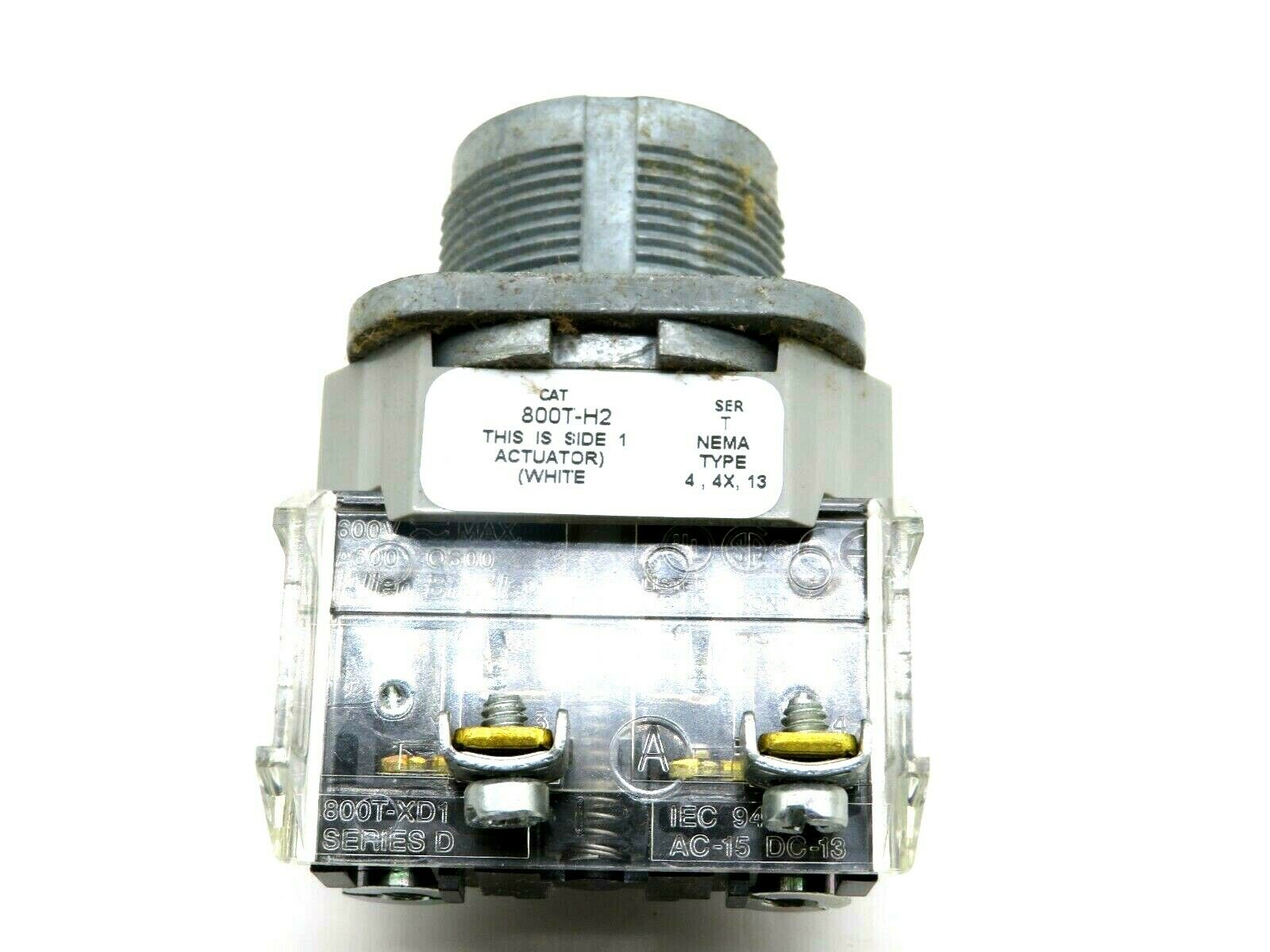

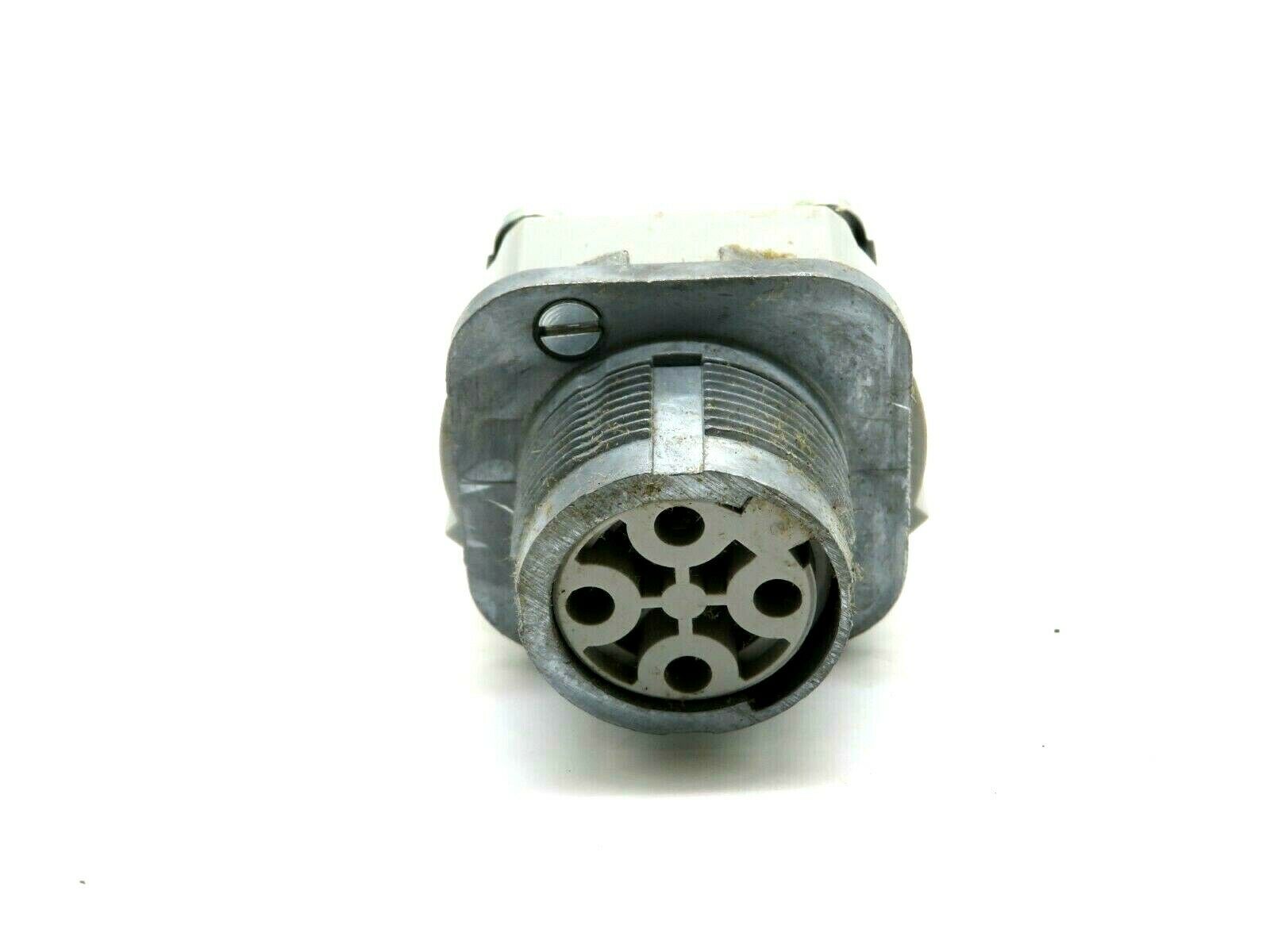

The Allen-Bradley 800T-H2D1 is a 30mm, 2-position maintained selector switch from the Bulletin 800T series, designed for demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800T-H2D1
|
| Subcatecory |
|
| Actuator |
2 Position Selector Switch |
Contact Configuration
|
1 NO |
| Size |
30.5 mm |
| Standard |
CCC,CE,CSA,CUL,KC,MARINE,UL |
| Voltage |
120 Volt |
| Block Type |
Standard |
| Head Type |
Standard Knob |
| Split Crucible |
S |
| Type |
2-Position, Screw |
| Color |
Black |
| Weight |
0.75 lbs |
Information About 800T-H2D1
The Allen-Bradley 800T-H2D1 is a 30mm maintained selector switch from the Bulletin 800T line, designed to deliver rugged performance and reliable manual control in industrial applications. Built with a robust metal housing and rated for demanding environments, it offers a simple and effective interface for selecting operational modes or functions in control systems.
Key Features:
- Product Type: Selector Switch
- Series: Bulletin 800T
- Operator Size: 30 mm
- Actuator Style: Black knob with white insert
- Switch Action: 2-position maintained (holds its position until manually changed)
- Contact Configuration: 1 Normally Open (1 NO)
- Illumination: Non-illuminated
- Mounting Type: Panel mount
- Enclosure Rating: NEMA Type 4, 13 (watertight and oil-tight)
- Material: Durable metal construction
- Operating Temperature: -18 to 70 °C (0 to 158 °F)
- Certifications: UL Listed, CSA Certified, CE Marked
This selector switch is ideal for control panels in manufacturing and process automation, offering dependable operator input for system control in harsh industrial environments.
