Description

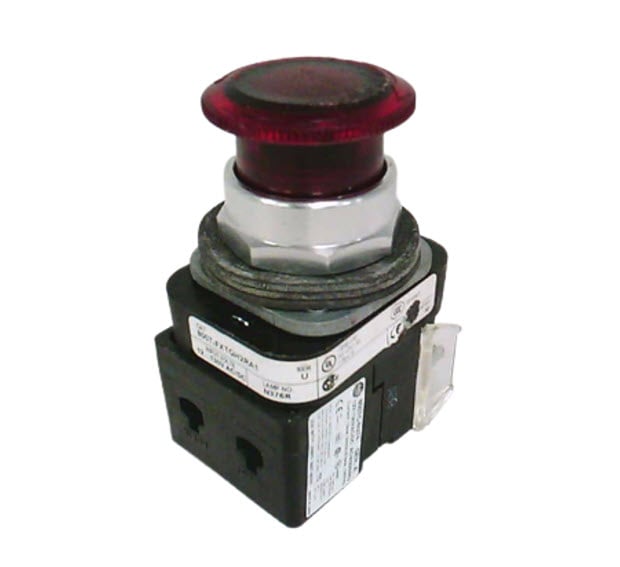

The Allen-Bradley 800T-FXTQH2RA1 is a heavy-duty push button designed for demanding industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800T-FXTQH2RA1 |
| Subcatecory |
|
| Action |
Pull to Release |
| Block Type |
Standard |
| Head Type |
Mushroom Head (Push-Pull) |
| Lens Color |
Red |
| Operator Type |
Standard Mushroom Cap |
| Type |
Screw, Push-Pull |
| Actuator |
2-Position |
| Contact Configuration |
1 NO, 1 NC |
| Illumination Type |
LED |
| Mounting Type |
Surface |
| Standard |
CCC,CE,CSA,CUL,KC,MARINE,UL
|
| Voltage |
12-130 Volt |
| Weight |
0.40 lbs |
Information About 800T-FXTQH2RA1
The 800T-FXTQH2RA1 is a heavy-duty push button designed for industrial control applications. It features a rugged 30.5 mm metal operator and a large mushroom head for easy actuation, offering reliable momentary operation in demanding environments.
Key Features:
- Type: Heavy-Duty Push Button
- Operator Size: 30.5 mm metal operator
- Actuation Type: Momentary (spring return)
- Head Type: Mushroom head
- Color: Red lens
- Contact Configuration: 1 Normally Open (1NO) contact
- Illumination: Illuminated push button
- Voltage Rating: Dependent on configuration (commonly 24V AC/DC or 120V AC options)
- Compatibility: Suitable for a wide range of industrial control panels and systems
- Installation: Panel mountable with screw terminal connections
- Durability: Water/oil tight with NEMA Type 4/13 rating for harsh environments
- Operating Temperature: Typically -20°C to 70°C
- Compliance: Meets UL, CSA, and CE standards for industrial safety and reliability
The 800T-FXTQH2RA1 provides durable, reliable control for industrial automation systems, making it ideal for applications requiring easy, prominent user interaction and high environmental resistance.
