Description

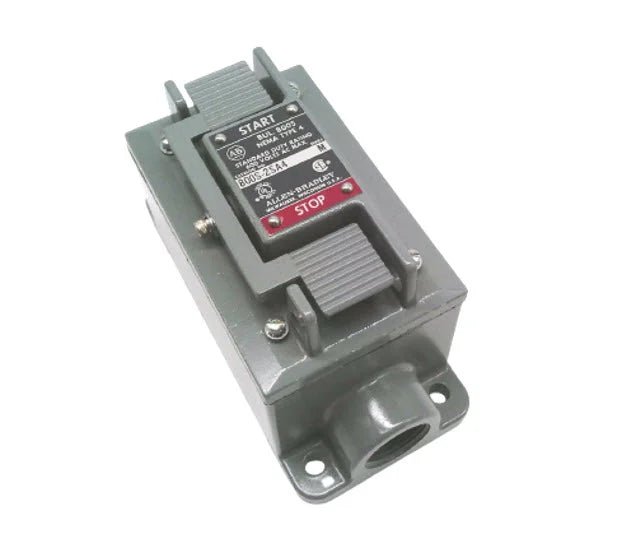

The Allen-Bradley 800S-2SA4 is a heavy-duty momentary pushbutton station with a lever-operated mechanism designed for start-stop control applications. Housed in a rugged NEMA Type 4 die-cast aluminum enclosure, it features a 2-position layout with 1 normally open and 1 normally closed contact configuration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800S-2SA4
|
| Subcategory |
Pushbutton |
| Action |
Momentary Lever Operated |
| Contact Configuration |
1 NO, 1 NC |
| Contact Rating |
5 A at 600 VAC |
Number of Holes
|
2 |
| Enclosure Material |
Die-Cast Aluminum |
| Enclosure Rating |
NEMA Type 4 |
| Mounting Type |
Panel Mount |
| Standards Compliance |
CSA, UL, KC |
| Weight |
2.0200 lb |
Information About 800S-2SA4
The 800S-2SA4 belongs to Allen-Bradley’s 800S line of standard-duty pushbutton stations, engineered for use in demanding industrial environments. This model features a momentary lever-operated actuator that returns to its original position after operation, making it ideal for manual control of machinery or motors. It includes a dual-contact setup—1 NO and 1 NC—enabling control circuit functionality such as motor start/stop. Designed with a 2-hole layout and constructed from die-cast aluminum, the enclosure meets NEMA Type 4 requirements, offering protection against dust, water, and oil ingress. With a 5 Amp contact rating at 600 VAC, this station provides reliable, long-term operation in panel-mounted applications.
Key Features:
- Momentary Lever Operation: Returns to the rest position after actuation, allowing immediate reset after manual operation.
- 1 NO + 1 NC Contact Configuration: Supports start-stop control circuits for motors or process systems.
- 5 A @ 600 VAC Rating: Provides dependable current handling for industrial switching tasks.
- NEMA Type 4 Enclosure: Offers water- and dust-tight protection for use in harsh environments.
- Durable Aluminum Construction: Die-cast body ensures ruggedness and long service life.
- Panel Mountable: Compatible with standard control panels for easy integration into existing systems.
- Two-Hole Configuration: Supports clear and separated actuator functions (e.g., start and stop).
- CSA, UL, KC Certified: Compliant with international industrial safety and performance standards.
- Corrosion-Resistant Finish: Protects against industrial solvents, humidity, and mechanical wear.
- Manual Control Reliability: Ideal for maintenance panels, conveyors, pumps, or localized machinery operation.
The 800S-2SA4 delivers reliable, user-friendly manual control for start-stop operations in environments requiring durable and sealed operator interfaces.
