Description

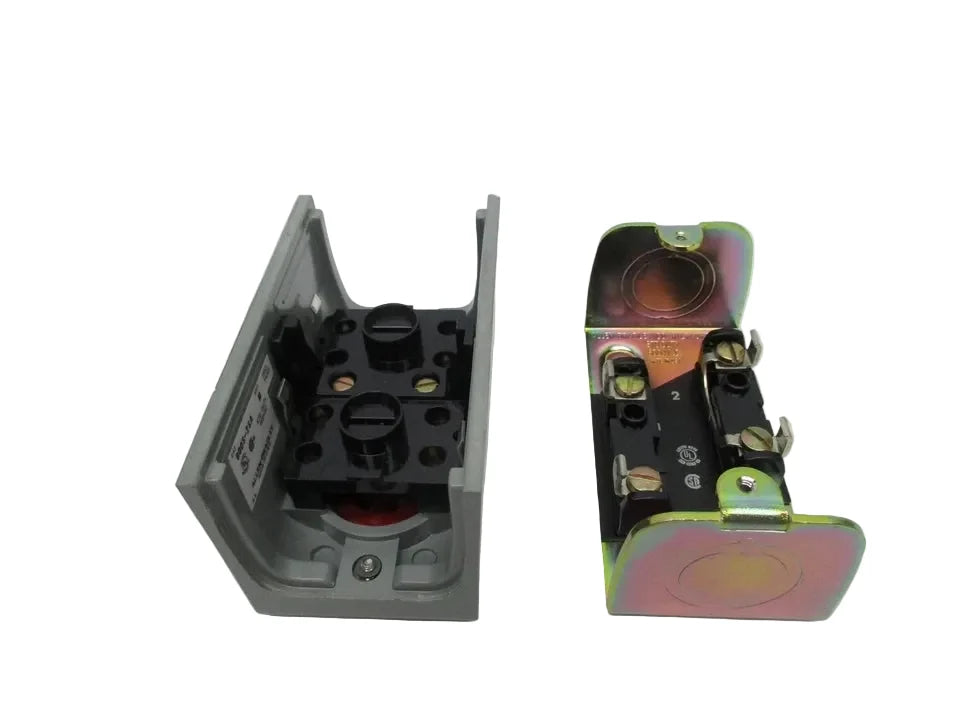

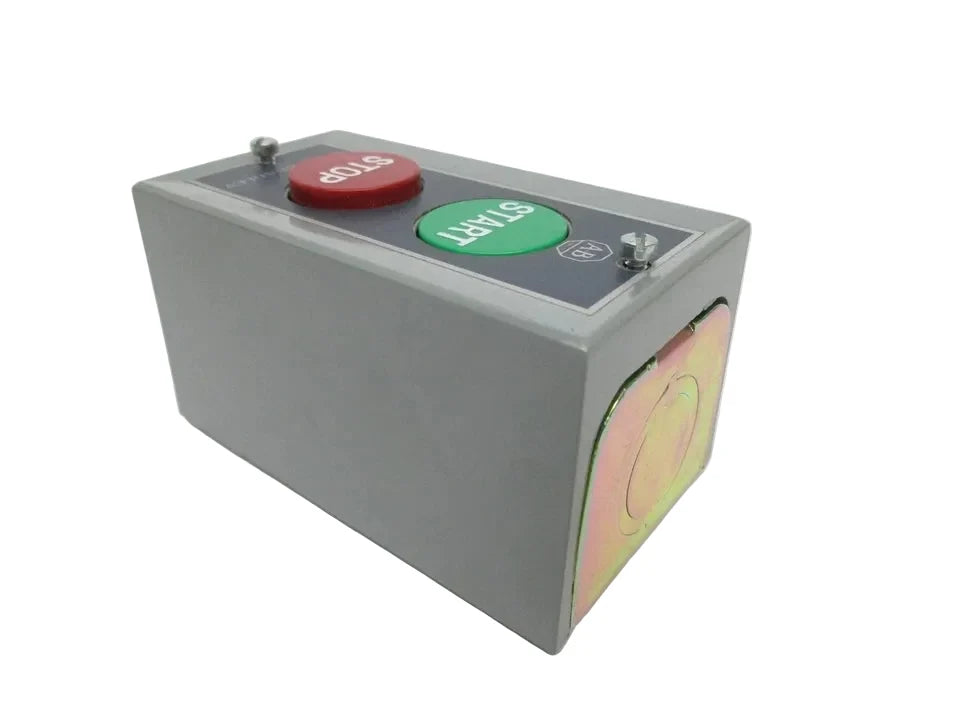

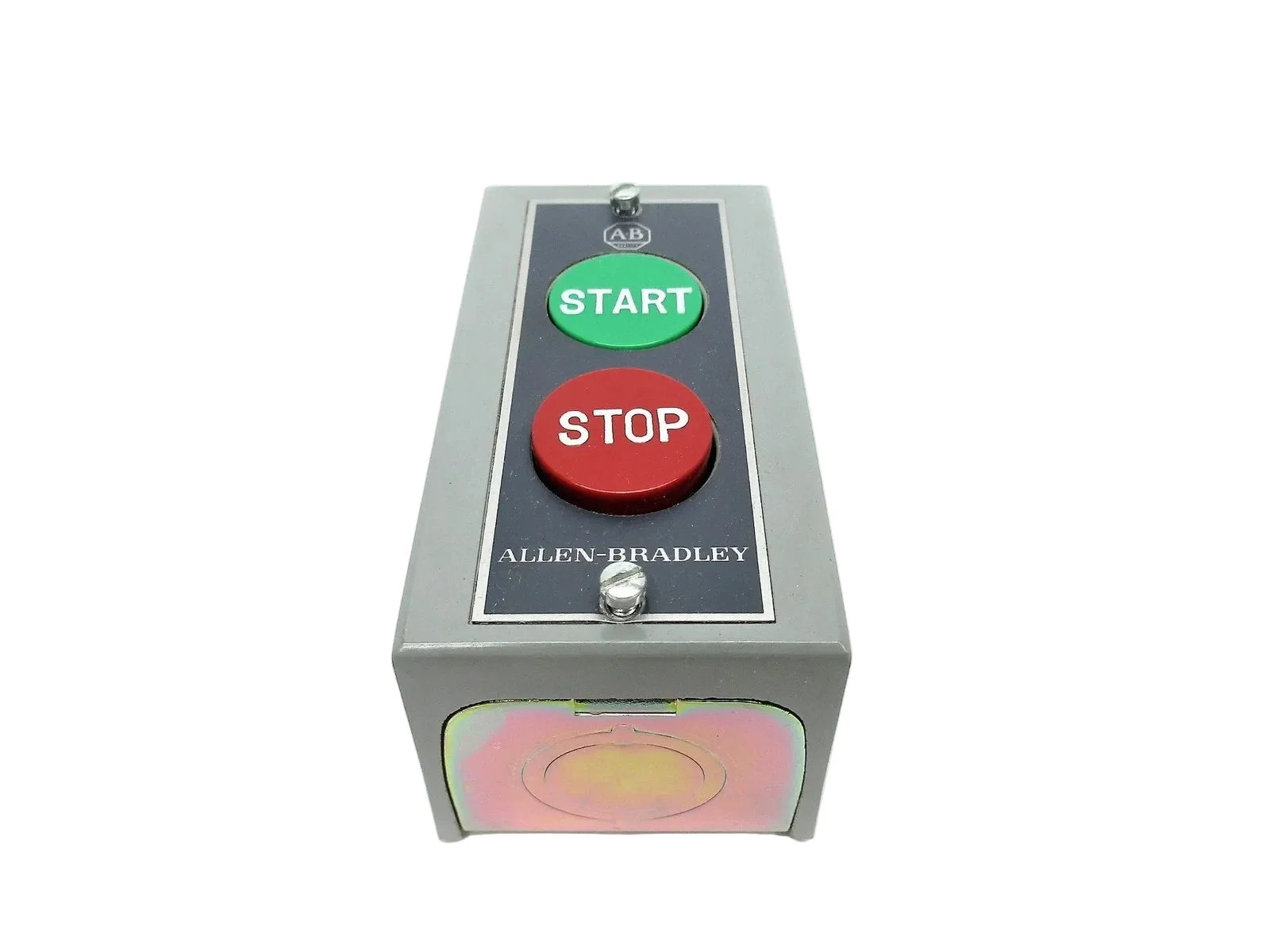

The Allen-Bradley 800S-2SA is a standard-duty pushbutton station designed for reliable momentary contact operation in industrial control systems. Featuring two-position momentary contact push buttons (Start and Stop), this surface-mount device ensures easy operation and consistent performance in a variety of applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800S-2SA
|
| Subcategory |
Pendant Station |
| Actuator |
Momentary Contact Push Buttons |
| Configuration |
Momentary Contact Buttons - Type 1 |
| Contact Configuration |
1 NO, 1 NC |
| Contact Rating |
5 A at 600 VAC |
| Enclosure Rating |
1 |
| Material |
Metal |
| Mounting Type |
Surface |
| Number of Holes |
2 |
| Standards Compliance |
CSA, KC, UL |
| Weight |
0.9500 lb |
Information About 800S-2SA

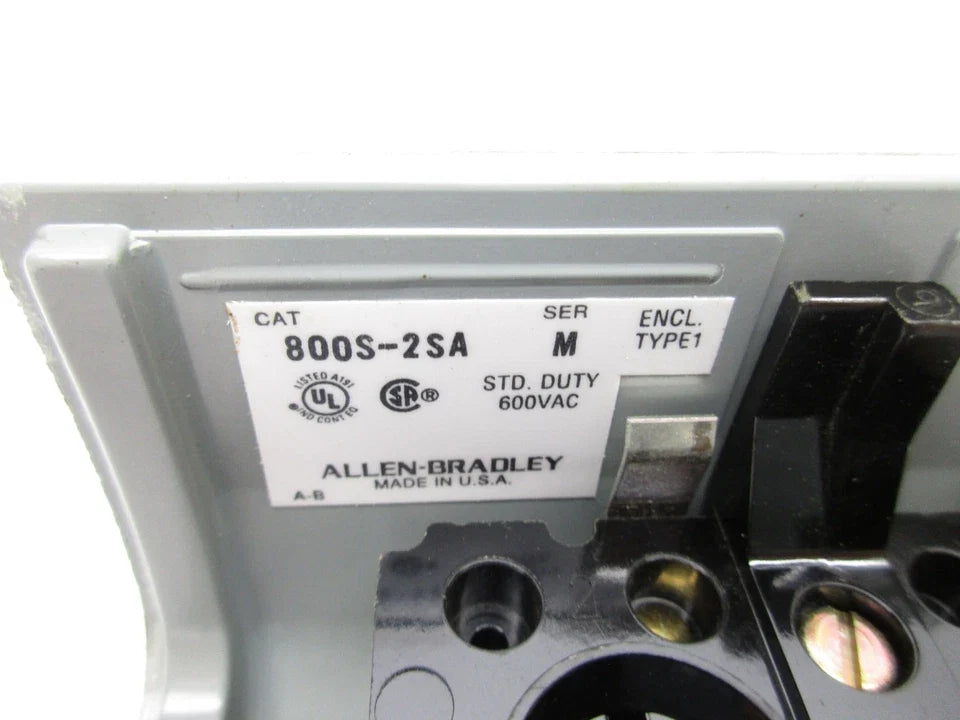

The 800S-2SA is engineered for standard industrial environments with a NEMA Type 1 enclosure, making it suitable for general-purpose indoor applications. The unit features two operator positions (Start and Stop), each with a momentary contact push button, providing straightforward and intuitive control for machinery and equipment. The contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact, each rated for 5 A at 600 VAC, offering reliable switching capability for a wide range of control circuits.
Key Features:
- Momentary Operation: Features two momentary contact push buttons for start and stop functions, providing intuitive and safe operator control.
- 2-Position Design: Includes a start and stop button in a single enclosure, simplifying wiring and control system design.
- Contact Configuration: Equipped with 1 NO and 1 NC contact, each rated for 5 A at 600 VAC, ensuring reliable switching in industrial circuits.
- NEMA Type 1 Enclosure: Designed for general-purpose indoor use, protecting against limited amounts of dust and incidental contact.
- Durable Metal Construction: Offers strength and long-term reliability, withstanding the rigors of typical industrial environments.
- Surface Mounting: Facilitates easy installation on panels, equipment frames, or walls, supporting straightforward integration into existing systems.
- NEMA Size 1: Compact form factor that fits neatly in control panels and enclosures.
- Global Certifications: Certified to CSA, KC, and UL standards, ensuring safe and compliant operation in international markets.
The 800S-2SA pushbutton station provides a reliable and easy-to-install solution for controlling machinery and equipment in industrial environments.
