Description

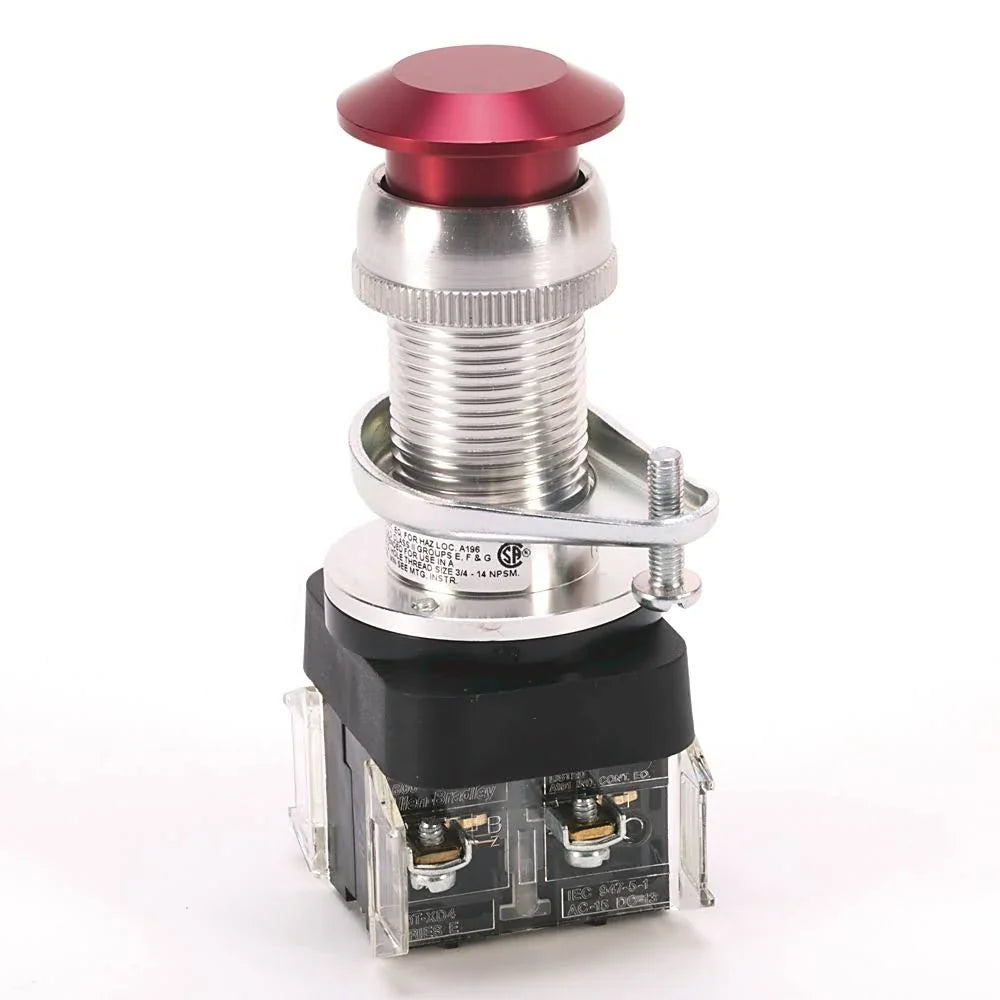

The Allen-Bradley 800H-FPX6D4 is a heavy-duty, non-illuminated 2-position push-pull mushroom head button designed for hazardous location applications. It features a single Normally Closed (NC) contact block and a red round lens, ensuring high visibility and secure control operation in industrial safety systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800H-FPX6D4
|
| Subcategory |
Pushbutton |
| Action |
|
| Actuator Head |
Mushroom Head, Red, Round Lens |
| Contact Configuration |
1 NC |
| Barrel Type |
Standard |
| Contact Block Type |
Standard |
| Illumination |
Non-Illuminated |
| Mounting Type |
2-Hole Screw Mount |
| Certifications |
CE, CSA, CUL, KC, MARINE, UL |
| Enclosure Rating |
Type 7 (Gas) and Type 9 (Dust) |
| Weight |
0.5100 lb |
Information About 800H-FPX6D4
The 800H-FPX6D4 is part of Allen-Bradley’s 800H series of push buttons rated for hazardous environments, compliant with Type 7 and Type 9 enclosure classifications. This model operates with momentary action and a push-pull mechanism, allowing manual latch-in and pull-to-release reset operations. It includes a standard barrel length and features a mushroom-style actuator head, which provides a broad, easily accessible surface for actuation in emergency or high-risk scenarios.
Key Features:
- Push-Pull Momentary Action: Enables manual latching in the pushed position with spring-return pull release, suited for start/stop and emergency operations.
- Mushroom Head Design: Offers a large red actuator surface for quick and clear engagement, particularly in safety-critical environments.
- 1 Normally Closed Contact: Supports immediate circuit break when actuated, enhancing safety in machine stop functions or lockout systems.
- Hazardous Location Rating: Certified for use in Type 7 (Class I, Div 1) and Type 9 (Class II, Div 1) hazardous locations, including gas, vapor, and dust environments.
- Non-Illuminated Simplicity: Reduces wiring complexity while maintaining clear visual status with a colored actuator.
- Standard Barrel and Block Type: Ensures compatibility with commonly used 30 mm mounting holes and contact blocks.
- 2-Hole Screw Mounting: Simplifies secure and robust installation into industrial enclosures.
The 800H-FPX6D4 delivers rugged and dependable manual control for high-risk areas where visibility, durability, and certification are critical.
