Description

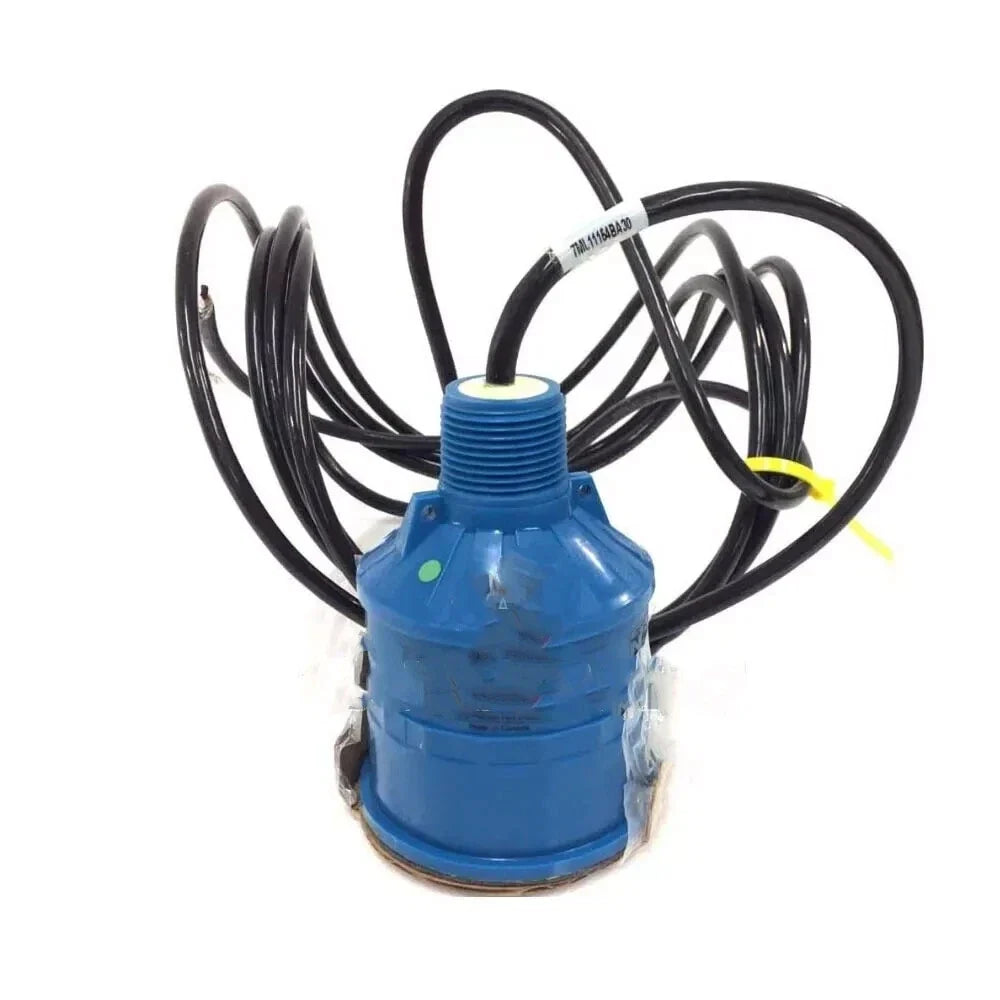

The 7ML1115-0BA30 is a high-performance ultrasonic level transducer from Siemens, designed for continuous, non-contact level measurement of liquids, slurries, and solids. It features a rugged design suitable for industrial environments and provides reliable measurements even under challenging conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens
|
| Category |
|
| Part Number |
7ML1115-0BA30 |
| Subcatecory |
|
| Application |
For liquids and solids |
| Maximum Sensing Distance |
10 meters (32.80 feet) |
| Cable Length |
5 meters (16.40 feet) |
|
Thread Type
|
1 inch NPT (National Pipe Taper) thread |
| Mounting Type |
Flush mount |
| Weight |
0.920 kgs |
Information About 7ML1115-0BA30
The 7ML1115-0BA30 is an ultrasonic level transducer from Siemens, engineered for precise, non-contact level measurement of liquids and solids in industrial tanks, silos, and open channels. It combines robust design, advanced sensing technology, and compliance with international safety standards.
Key Features:
- Type: Ultrasonic Level Transducer
- Measuring Range: 0.3 to 10 meters (1 to 32.8 feet)
- Mounting: 1" NPT thread (ANSI/ASME B1.20.1)
- Cable Length: 5 meters (16.4 feet)
- Temperature Sensor: Integrated
- Flange: None (flush mount design)
- Operating Temperature Range: - (varies per installation, standard industrial ranges apply)
- Ingress Protection (IP Rating): IP68 (standard for submersible transducers)
- Net Weight: 0.92 kg
- Standards Compliance: RoHS compliant, WEEE directive take-back obligations
The 7ML1115-0BA30 is an excellent solution for engineers and plant operators requiring reliable, maintenance-free level measurement in challenging industrial environments, offering accuracy, durability, and flexible installation.
