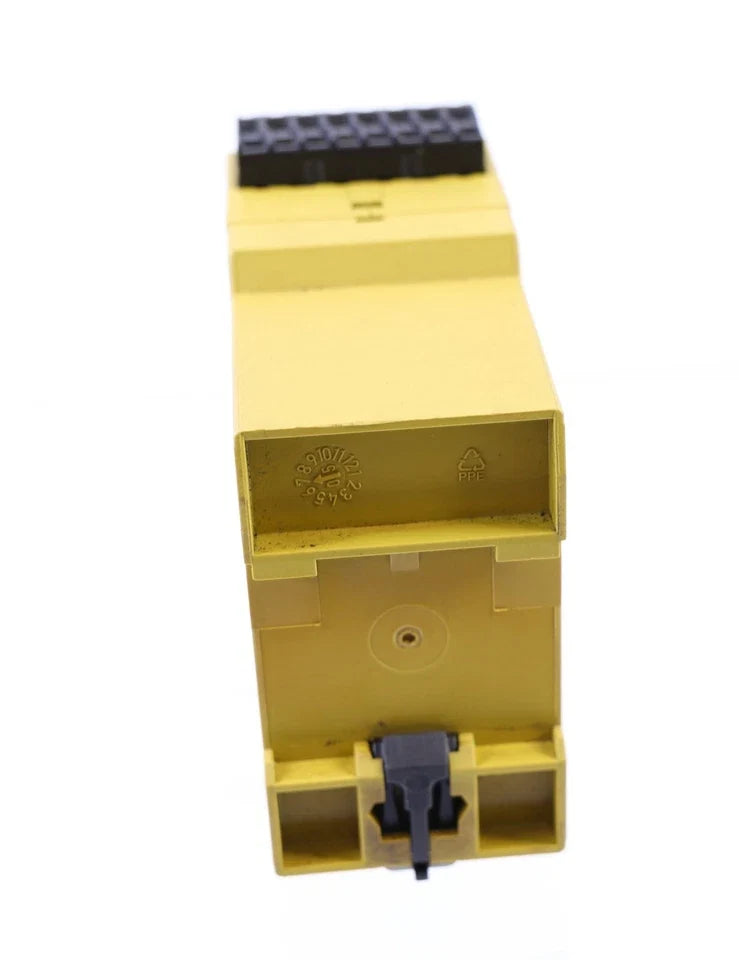

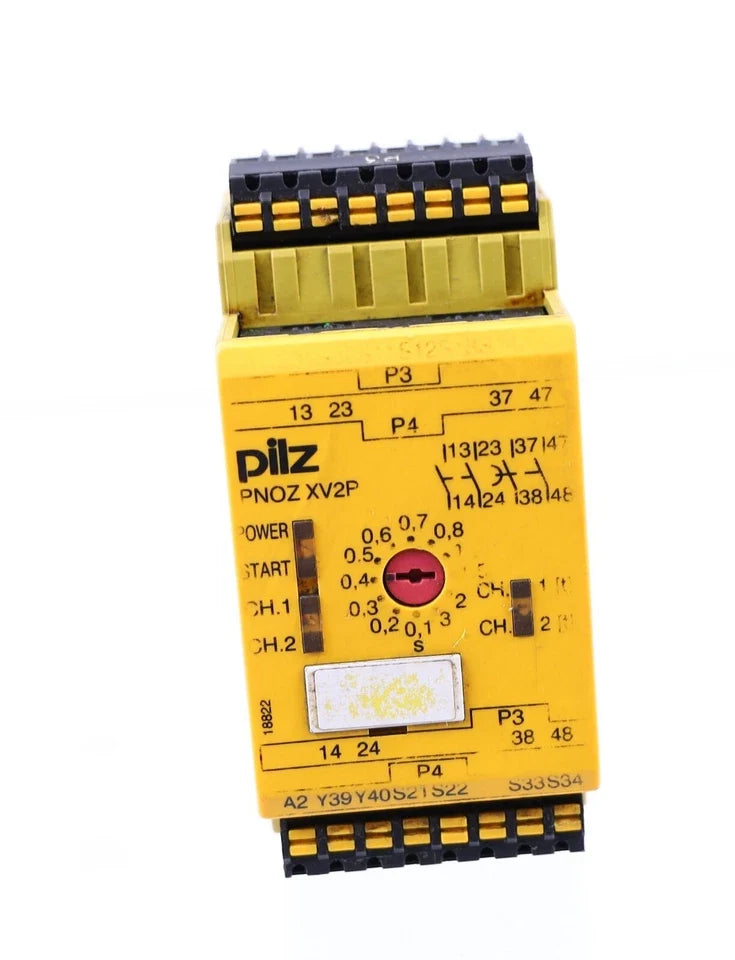

Description
The Pilz 787502 PNOZ XV2P C is a configurable safety relay designed for monitoring emergency stop circuits, safety gates, and limit switches. Operating on 24 VDC, it provides instantaneous and time-delayed safety outputs with selectable delay times up to 3 seconds.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Pilz |
| Category |
Safety Relays |
| Part Number |
787502 |
| Subcategory |
Time-Delay Safety Relays |
| Series |
PNOZ X |
| Model |
PNOZ XV2P C |
| Supply Voltage |
24 VDC |
| Power Consumption |
4.5 W |
| Input Configuration |
Single or dual-channel |
| Application |
E-stop pushbuttons, safety gates, limit switches |
| Instantaneous Safety Outputs |
2 × NO |
| Delayed Safety Outputs |
2 × NO |
| Selectable Delay Times |
0.1 s to 3 s (multiple steps) |
| Start Type |
Automatic / monitored |
| Electrical Connection |
Cage clamp terminals |
| Terminal Style |
Plug-in |
| Mounting |
DIN rail |
| Standards |
EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Approvals |
CCC, cUL, GOST, TÜV, UL |
| Weight |
0.78 lb (355 g) |
Information About 787502
The 787502 is part of the Pilz PNOZ X series safety relays developed for reliable control of safety-related stop functions. It supports both instantaneous and time-delayed safety contacts, allowing controlled shutdown sequences to match machine safety requirements. The relay offers a wide range of selectable delay times up to 3 seconds, providing flexibility for different applications and risk assessments. Designed for DIN rail mounting with plug-in cage clamp terminals, it enables secure wiring and efficient installation in industrial control panels.
Key Features
- Configurable Time-Delay Safety Function: Provides selectable delay settings from 0.1 to 3 seconds to support controlled stop and restart sequences.
- Dual Safety Output Types: Combines two instantaneous and two delayed normally open safety contacts for flexible safety circuit design.
- Single or Dual-Channel Input Support: Enables use with various safety devices while meeting different safety architecture requirements.
- 24 VDC Operation: Designed for standard low-voltage industrial safety control systems.
- Cage Clamp Plug-In Terminals: Ensure secure, vibration-resistant wiring and faster installation or replacement.
- Compact DIN Rail Housing: Supports space-efficient mounting in modern control cabinets.
- Certified Safety Compliance: Approved to multiple international safety standards for use in safety-critical machine applications.
The 787502 delivers the reliability and precision required for time-controlled safety switching in industrial automation and machine safety systems.
