Description

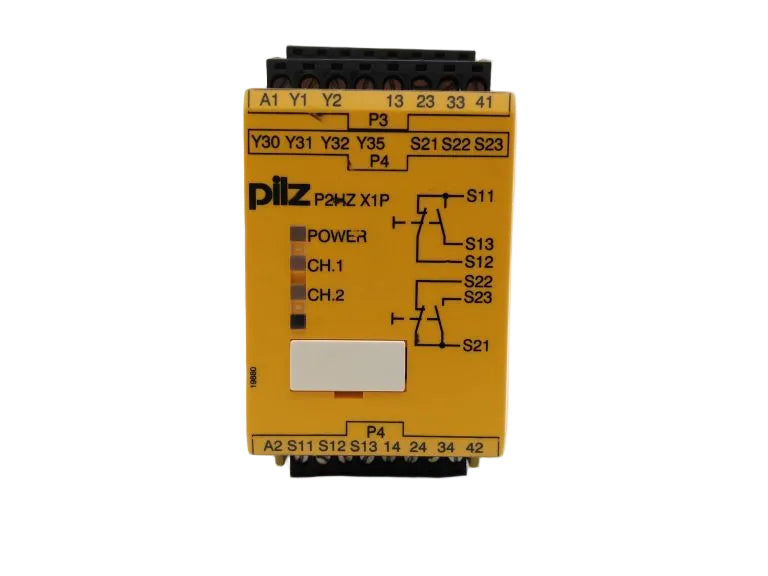

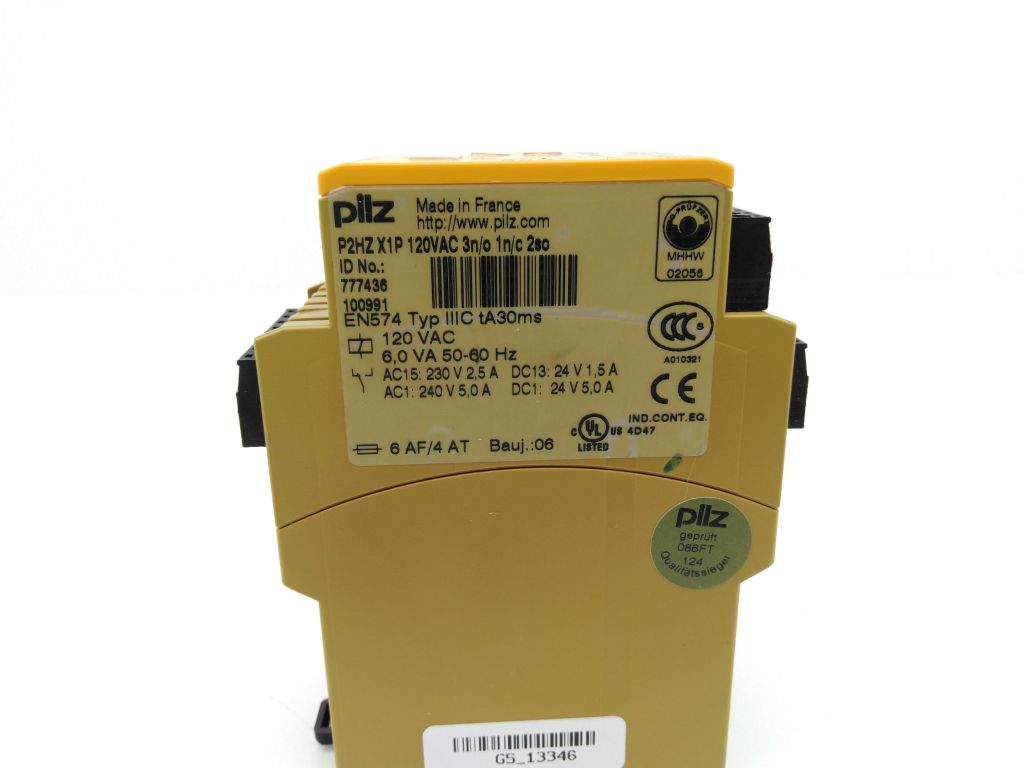

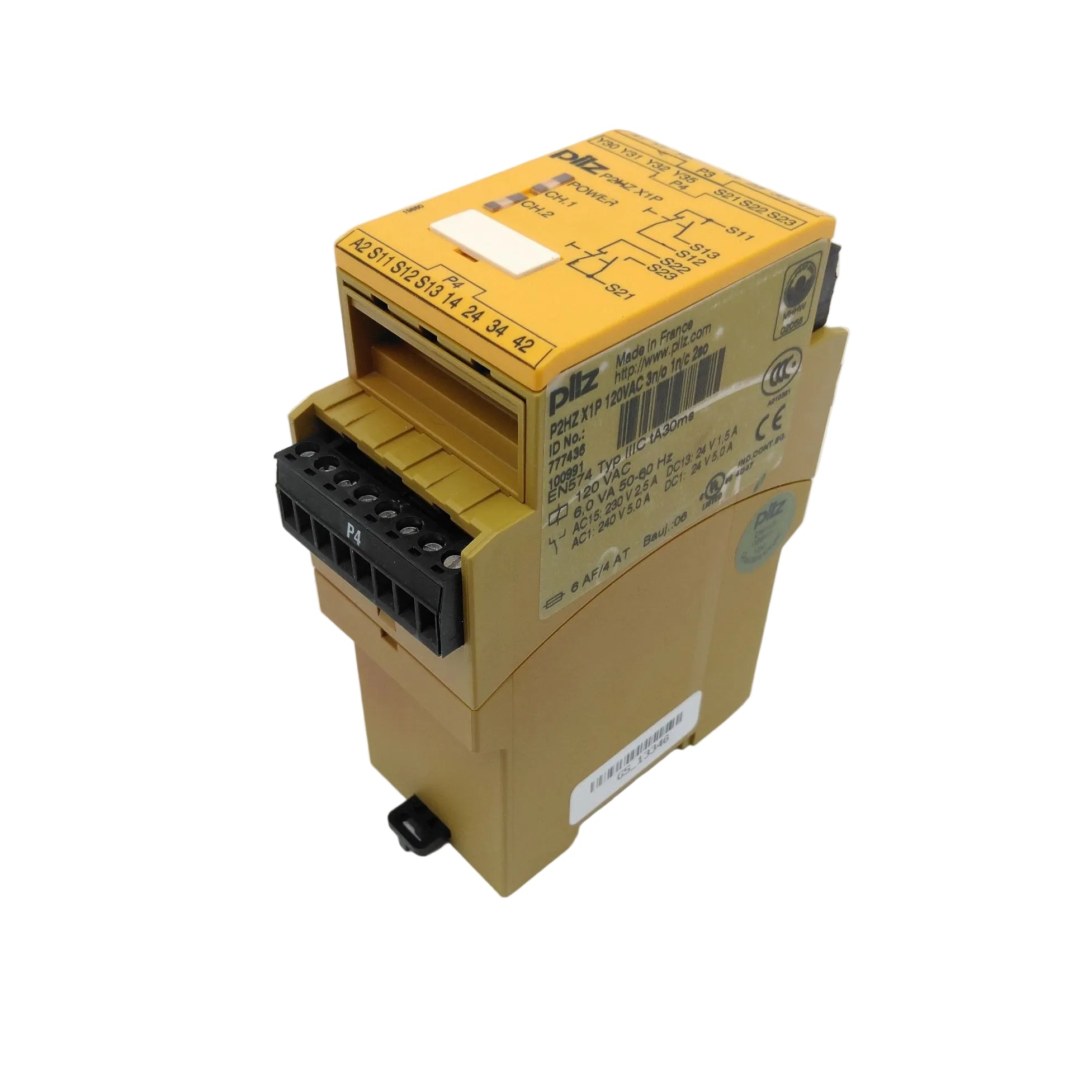

The Pilz 777436 safety relay is a standalone safety control device designed for monitoring safety circuits in industrial automation systems. It operates on a 120 VAC supply and combines relay-based safety contacts with semiconductor outputs for flexible safety integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Pilz |
| Category |
Safety Relays |
| Part Number |
777436 |
| Subcategory |
Safety Control Relays |
| Relay Type |
Standalone safety relay |
| Supply Voltage |
120 V AC |
| Supply Frequency |
50/60 Hz |
| Safety Relay Outputs |
3 N/O, 1 N/C |
| Semiconductor Outputs |
2 |
| Mounting |
DIN rail |
| Connection Type |
Screw terminals |
| Terminal Style |
Fixed |
| Weight |
0.83 lbs |
Information About 777436
The 777436 is part of the Pilz safety relay product range developed for dependable monitoring of safety-related functions in industrial machinery. It is designed as a standalone unit that does not require additional controllers for basic safety applications. The relay combines electromechanical safety contacts with semiconductor outputs, allowing it to interface with both traditional contactor-based circuits and electronic safety inputs. Its DIN rail mounting and screw terminal connections support straightforward installation in standard control cabinets.
Key Features
- Standalone Safety Relay Design: Operates independently for basic safety applications without the need for external safety controllers.
- Hybrid Output Configuration: Combines 3 normally open and 1 normally closed relay contacts with 2 semiconductor outputs for versatile safety signal handling.
- 120 VAC Operating Voltage: Designed for systems using standard 120 VAC control power at 50/60 Hz.
- DIN Rail Mounting: Supports fast and secure installation in industrial control panels.
- Screw Terminal Connections: Fixed screw terminals ensure reliable electrical connections and resistance to vibration.
- Compact Industrial Construction: Designed for long-term operation in industrial environments with stable mechanical performance.
The 777436 delivers the reliability and precision required for safety circuit monitoring and control in industrial automation systems.
