Description

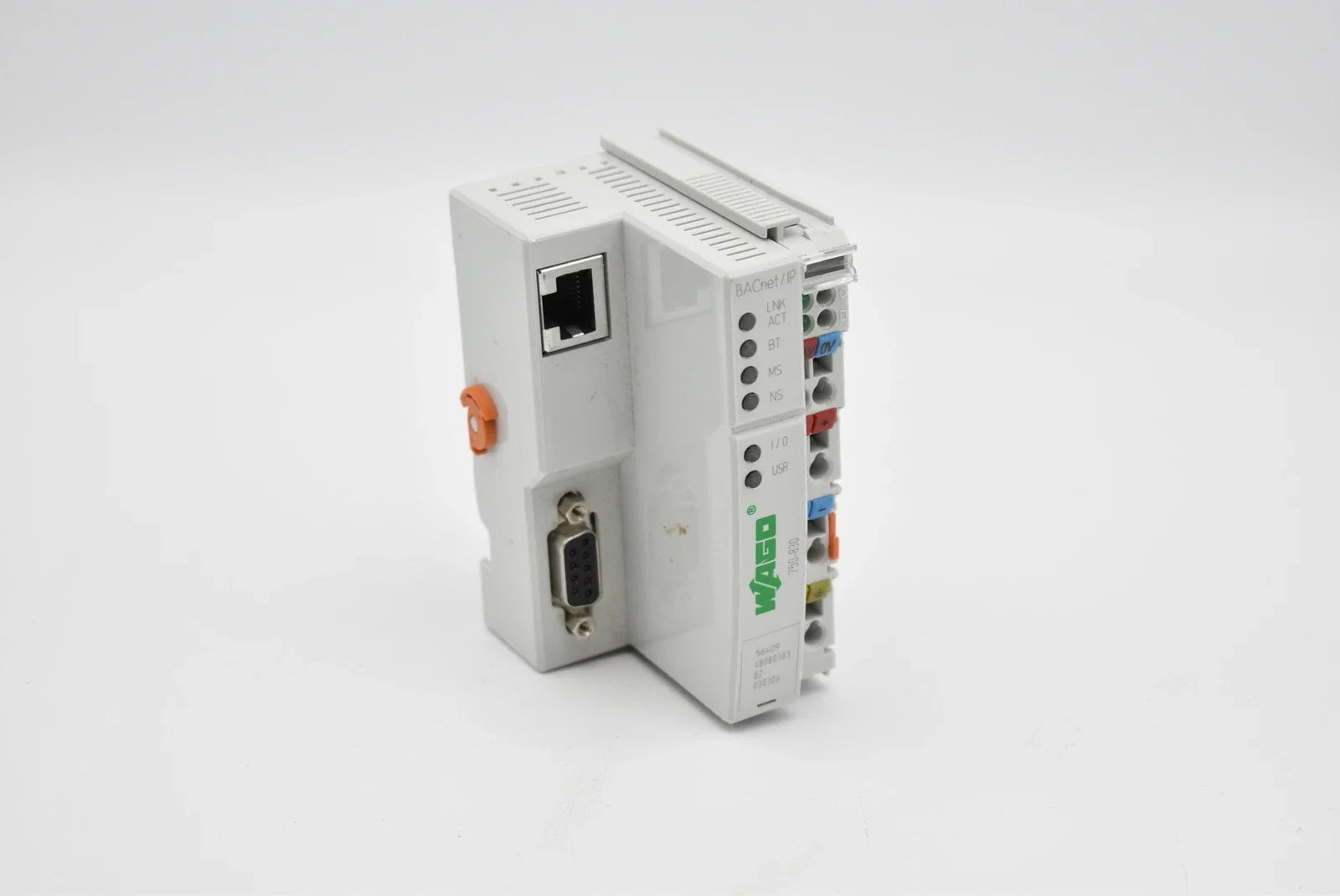

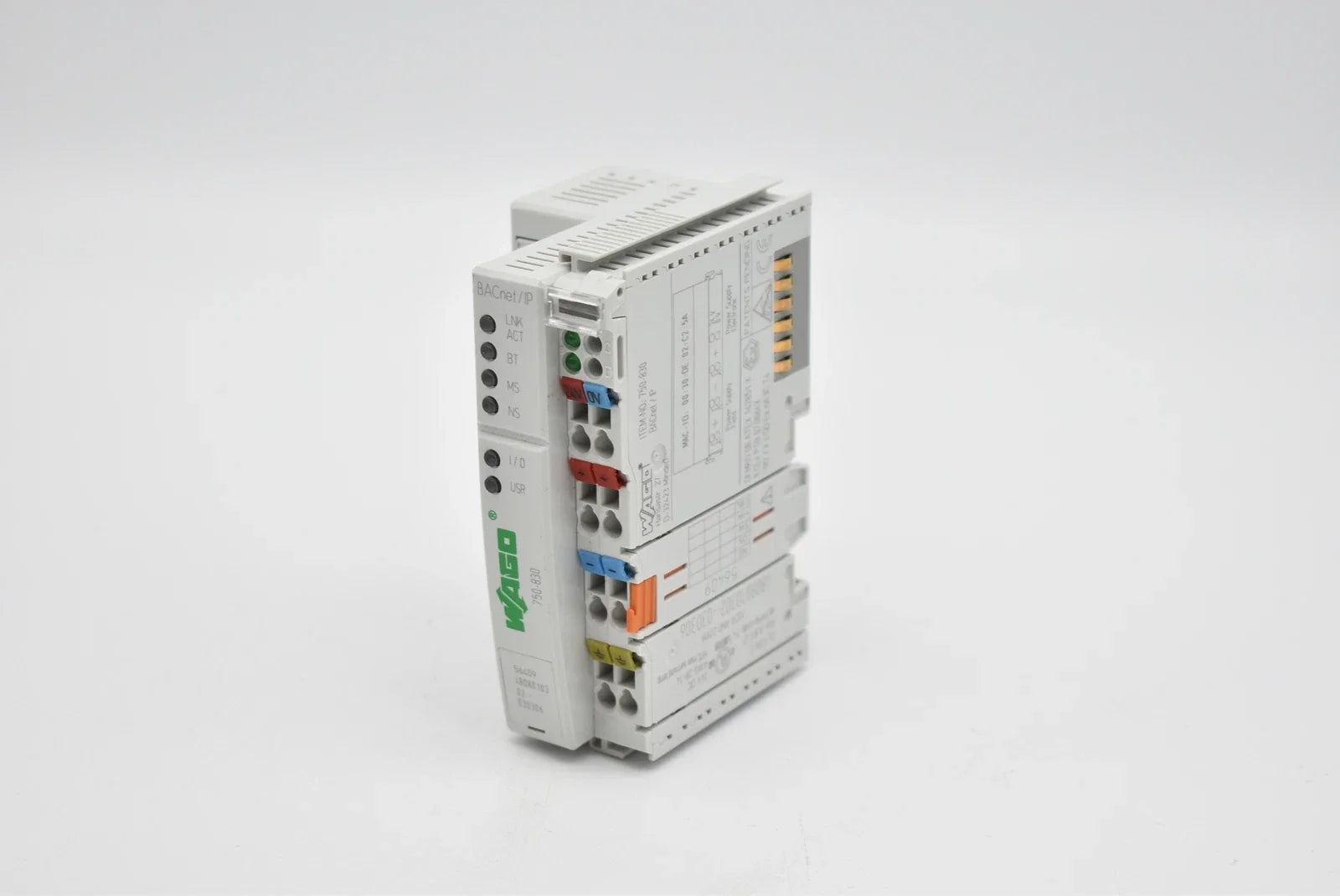

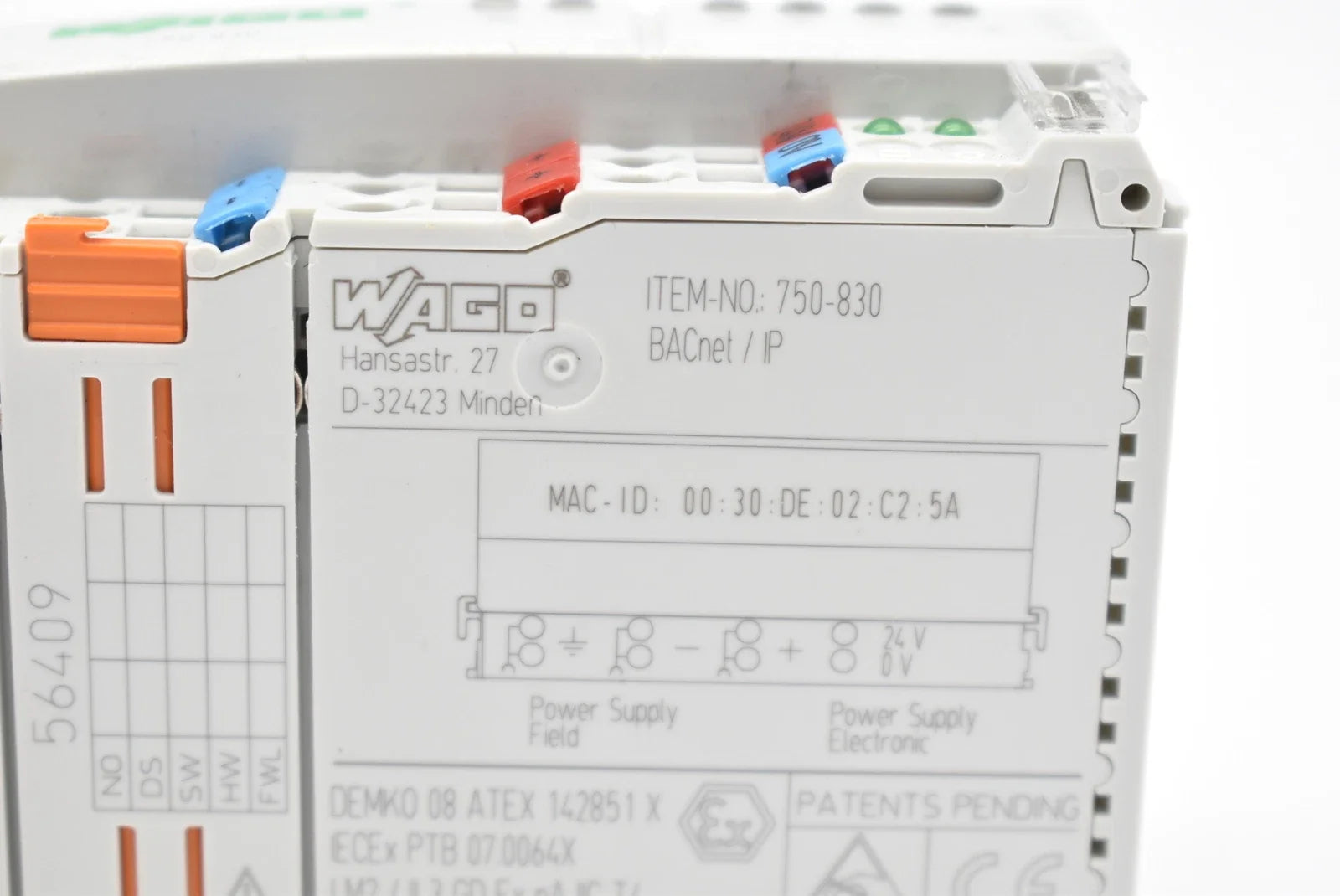

The WAGO 750-830 BACnet/IP Controller is a modular I/O system controller designed for building automation and industrial network integration. Identified by part number 750-830, it enables reliable communication over BACnet/IP while supporting additional protocols such as Modbus and Ethernet. The controller is engineered for decentralized control tasks within the WAGO I/O System 750 platform.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
WAGO |
| Category |
Industrial Automation Controllers |
| Part Number |
750-830 |
| Subcategory |
BACnet/IP Controllers |
| Communication Protocols |
BACnet/IP, Modbus TCP/UDP, Ethernet, RS-232 |
| Ethernet Speed |
10/100 Mbit/s |
| Serial Baud Rate |
9.6 kBd … 115.2 kBd |
| Ambient Operating Temperature |
0 … +55 °C |
| Configuration Interfaces |
WAGO-I/O-CHECK, BACnet Configurator, Web-Based Management |
| Supply Voltage (System) |
24 VDC |
| Current Consumption (5 V System Supply) |
300 mA |
| Current Carrying Capacity (Power Jumper Contacts) |
10 A |
| Data Memory |
256 KB |
| Mounting Type |
DIN-35 Rail |
| Color |
Light Gray |
| Depth |
100 mm (3.937 in) |
| Protection Rating |
IP20 |
| Weight |
Approx. 0.45 lb |
Information About 750-830
The 750-830 is part of WAGO’s I/O System 750 controller family, developed for automation environments that require standardized building communication protocols. It integrates BACnet/IP functionality with Ethernet-based communication and serial interfacing for flexible system design. The controller supports configuration and diagnostics through WAGO software tools and web-based management interfaces. It is designed for continuous operation in control cabinets, offering dependable performance across a wide ambient temperature range.
Key Features:
- BACnet/IP Controller: Enables standardized building automation communication over IP networks.
- Multi-Protocol Support: Supports BACnet/IP, Modbus TCP/UDP, Ethernet, and RS-232 communication.
- Modular I/O System Integration: Designed for use with the WAGO I/O System 750 modules.
- Ethernet Connectivity: Provides 10/100 Mbit/s Ethernet communication for fast data exchange.
- Serial Interface Support: Includes RS-232 interface for legacy or auxiliary device communication.
- Flexible Configuration Options: Supports WAGO-I/O-CHECK, BACnet Configurator, and web-based management.
- Industrial Power Handling: Supports system and field supply with robust power jumper contacts.
- DIN-Rail Mount Design: Enables straightforward installation in standard control cabinets.
- Wide Operating Temperature Range: Rated for operation from 0 to +55 °C in industrial environments.
- Compact Controller Depth: Optimized for space-efficient panel installations.
The 750-830 delivers the reliability and precision required for BACnet-based building automation and distributed control systems.
