Description

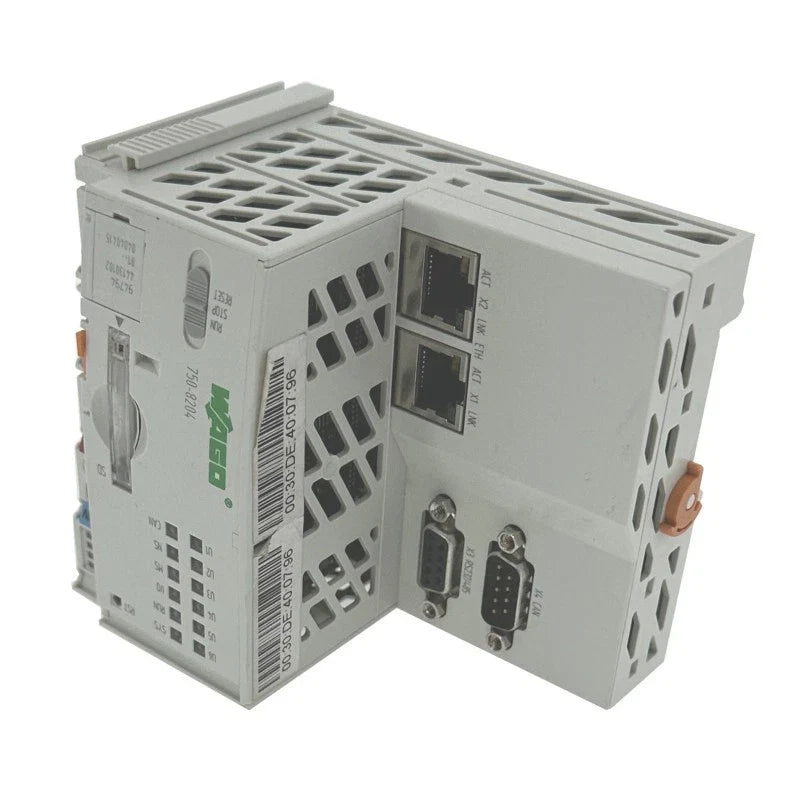

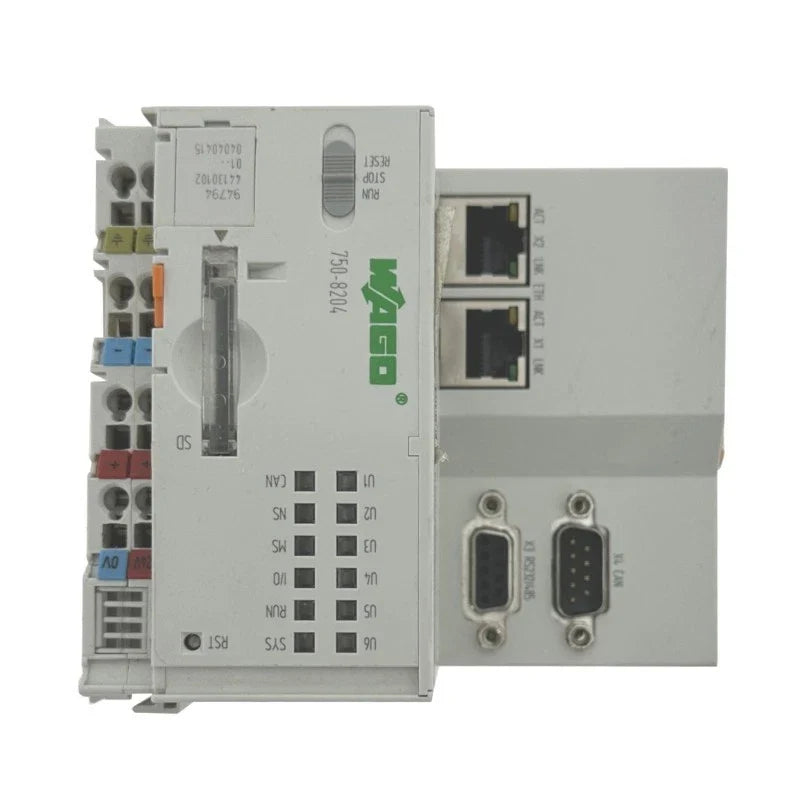

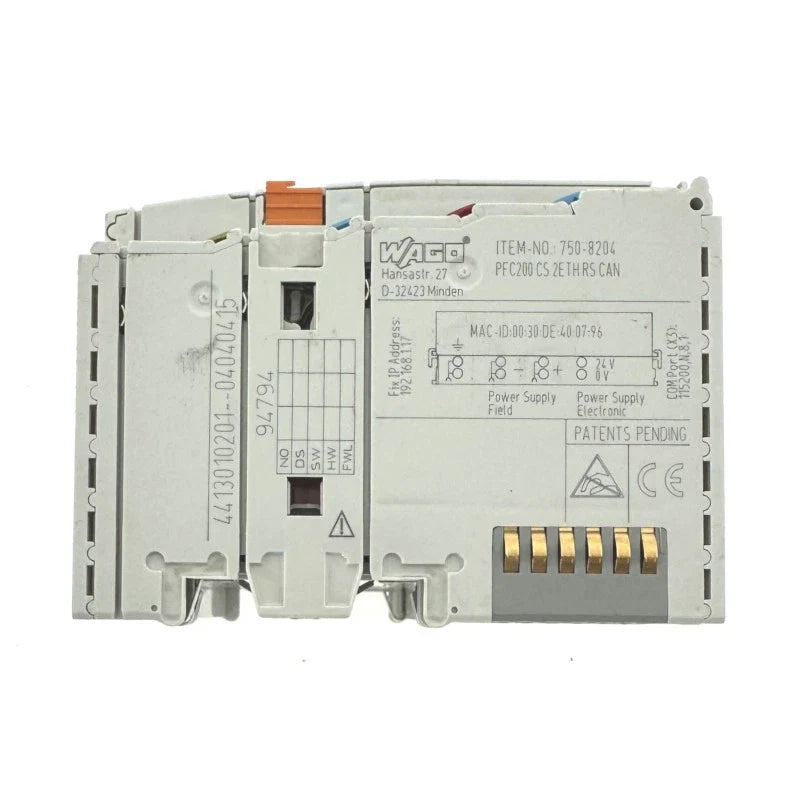

The WAGO 750-8204 is a PFC200 programmable field controller designed for high-performance control and communication within the modular WAGO I/O System. It combines real-time Linux processing with multiple industrial communication interfaces for flexible automation architectures. This controller is engineered for reliable operation in industrial machinery, building automation, and process control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
WAGO |
| Category |
Industrial Automation Controllers |
| Part Number |
750-8204 |
| Subcategory |
PLC / Field Controllers |
| Controller Series |
PFC200 |
| CPU |
ARM Cortex-A8, 600 MHz |
| Operating System |
Real-time Linux (PREEMPT_RT) |
| Main Memory (RAM) |
256 MB |
| Internal Flash Memory |
256 MB |
| Non-Volatile Memory |
128 kB |
| Ethernet Interfaces |
2 × 10/100 Mbit/s |
| Additional Interfaces |
RS-232, RS-485, CAN, CANopen |
| Supported Protocols |
Modbus TCP/UDP, Modbus RTU, CANopen |
| Max. I/O Modules per Node |
250 |
| System Supply Voltage |
24 VDC (−25 … +30 %) |
| Typical Input Current |
550 mA at 24 VDC |
| Isolation |
500 V system/field |
| Operating Temperature |
0 … +55 °C |
| Mounting Type |
DIN rail |
| Ingress Protection |
IP20 |
| Weight |
246.7 g |
Information About 750-8204
The 750-8204 is part of the WAGO PFC200 controller family, built to support the full range of WAGO 750/753 digital, analog, and specialty I/O modules. It features dual Ethernet ports with an integrated switch to enable line topology networking and efficient system layouts. The controller runs a real-time Linux operating system with PREEMPT_RT patch, ensuring deterministic behavior for control tasks. Configuration, programming, and diagnostics are supported through e!COCKPIT, WAGO-I/O-PRO, and an integrated web-based management interface.
Key Features:
- Compact PLC Architecture: Designed as a high-performance controller for the WAGO modular I/O system
- Dual Ethernet Interfaces: Two configurable Ethernet ports with integrated switch for line topology
- Multi-Protocol Communication: Supports Ethernet, Modbus TCP/UDP, Modbus RTU, CAN, and CANopen
- Real-Time Linux Operating System: Linux with PREEMPT_RT patch for deterministic control performance
- IEC 61131-3 Programming Support: Compatible with IL, LD, FBD, ST, and SFC languages
- Integrated Web Server: Provides diagnostics, configuration access, and status visualization
- High I/O Scalability: Supports up to 250 I/O modules per node
- Flexible Configuration Tools: Compatible with e!COCKPIT, WAGO-I/O-CHECK, and Web-Based Management
- Maintenance-Free Operation: Designed for continuous operation without periodic servicing
- SD/SDHC Memory Expansion: Supports removable memory cards up to 32 GB
The 750-8204 delivers the reliability and precision required for advanced industrial and building automation control systems.
